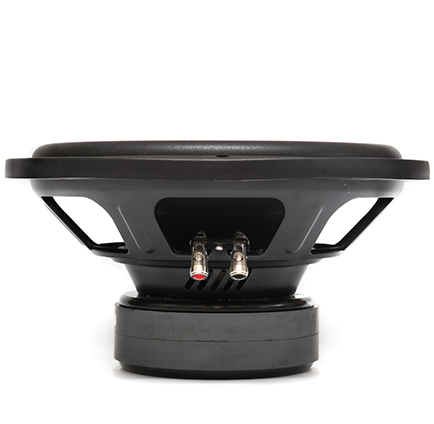

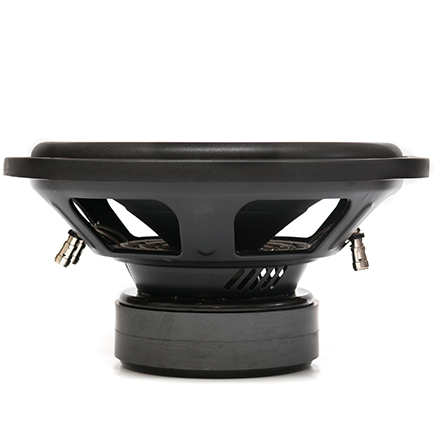

Pride LP 12
4Ω
Subwoofer
| Nominal diameter | 12″ / 305 mm |
| Resonance | 34.5 Hz |
| Q factor | 0.60 |
| Sensitivity | 85.7 dB |
| Linear excursion | ± 16 mm |
| Program Power | 900 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 34.5Hz
- Mechanical quality factor QMS 6.31
- Electrical quality factor QES 0.66
- Total quality factor QTS 0.60
Large signal parameters
- Maximum linear excursion xmax 16mm
- Air volume displaced at xmax VD 810cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz, estimated) LE 2.56mH
- VC Diameter 63.5mm
Magnet
- Force factor Bl 15N/A
- Motor constant Bl/√RE 8.26N/√W
- Weight 2.65kg
- Material Ferrite
Diaphragm
- Effective diameter 254mm
- Effective area SD 506cm²
- Moving mass MMS 209g
- Moving mass (without air load) MMD 201g
Suspensions
- Stiffness KMS 9.8N/mm
- Compliance CMS 102µm/N
- Equivalent volume to the compliance VAS 36.9L
- Mechanical resistance RMS 7.17N·s/m
Dimensions
- Nominal diameter 12″
- 305mm
- Baffle cutout diameter 282mm
- Overall depth 142mm
- Volume occupied by the driver (estimated) 2.4L
- Net weight 6.46kg
- Frame material Steel
