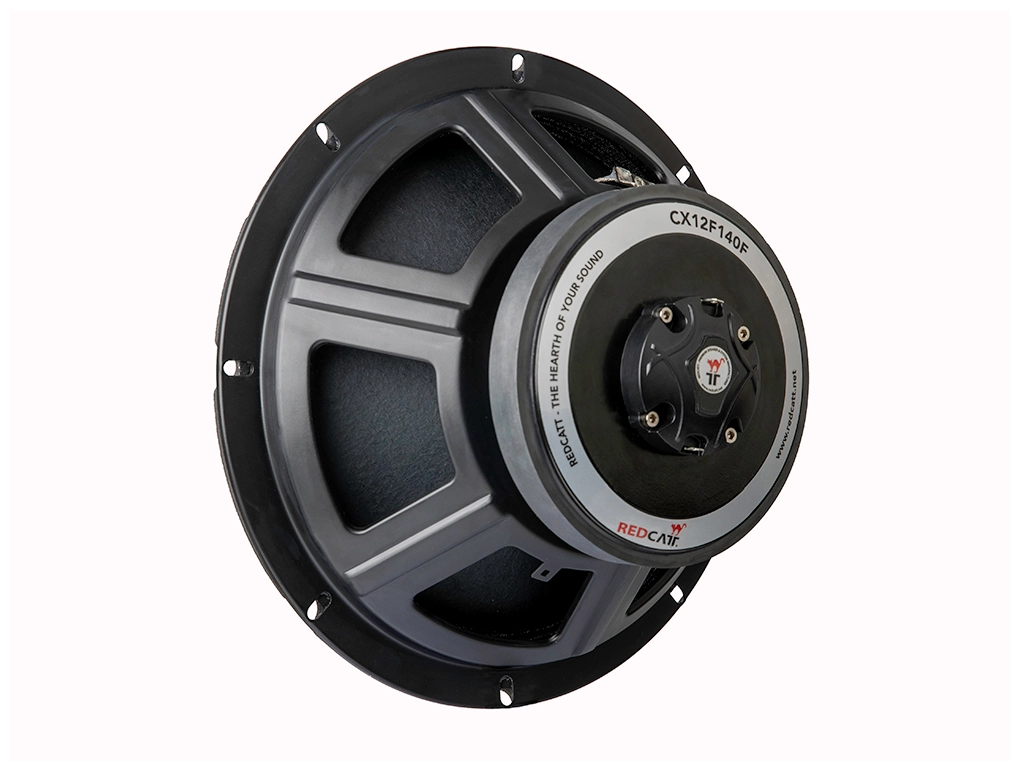

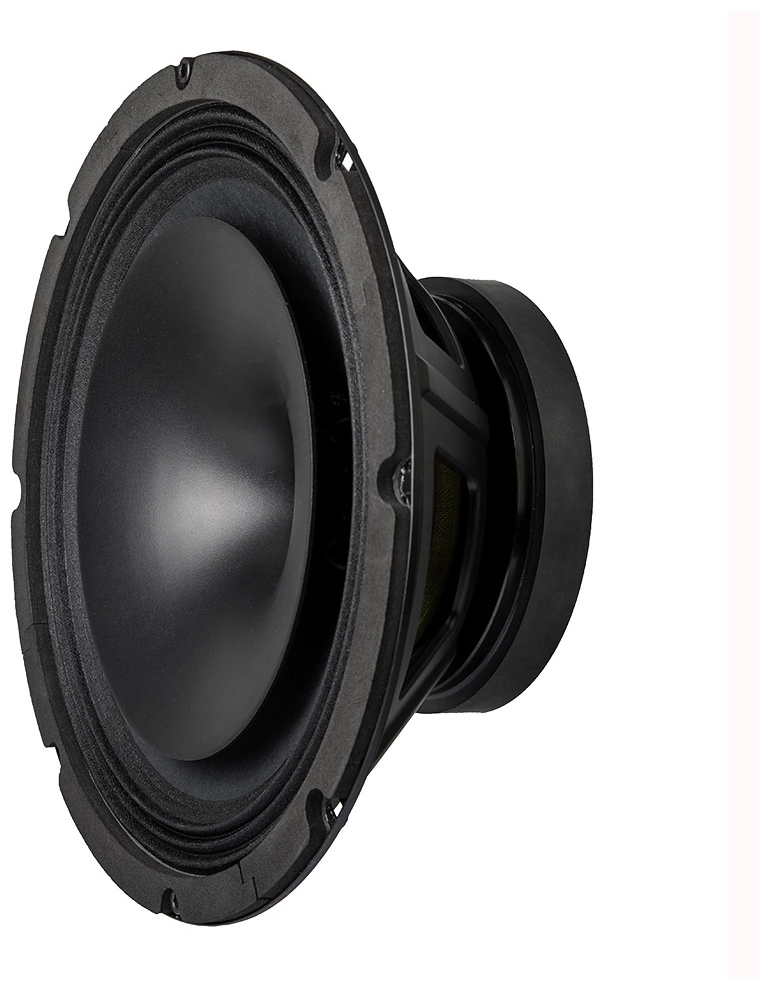

REDCATT CX12F140
8Ω
Coaxial
| Nominal diameter | 12″ / 320 mm |
| Resonance | 56 Hz |
| Q factor | 0.50 |
| Sensitivity | 94.5 dB |
| Linear excursion | ± 7.6 mm |
| Program Power | 400 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 56Hz
- Mechanical quality factor QMS 6.53
- Electrical quality factor QES 0.54
- Total quality factor QTS 0.50
Large signal parameters
- Maximum linear excursion (one way) xmax 7.6mm
- Air volume displaced at xmax VD 404cm³
- Power handling P 200W
- Program power Pmax 400W
- Peak power Ppeak 800W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.7mH
- VC Diameter 50.8mm
- Winding height HVC 15.8mm
- Winding material Copper / CCAW
- Former material kapton / kapton
Magnet
- Force factor Bl 13.4N/A
- Motor constant Bl/√RE 5.71N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 50.3g
- Moving mass (without air load) MMD 41.4g
- Material Paper / Polymer
Suspensions
- Stiffness KMS 6.21N/mm
- Compliance CMS 161µm/N
- Equivalent volume to the compliance VAS 63.9L
- Mechanical resistance RMS 2.71N·s/m
- Surround material Fabric / Polymer
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 320mm
- Overall diameter 320mm
- Baffle cutout diameter 281mm
- Mounting depth 143mm
- Volume occupied by the driver (estimated) 2.3L
- Net weight 5.3kg
.webp)
.webp)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
MfbLabs
