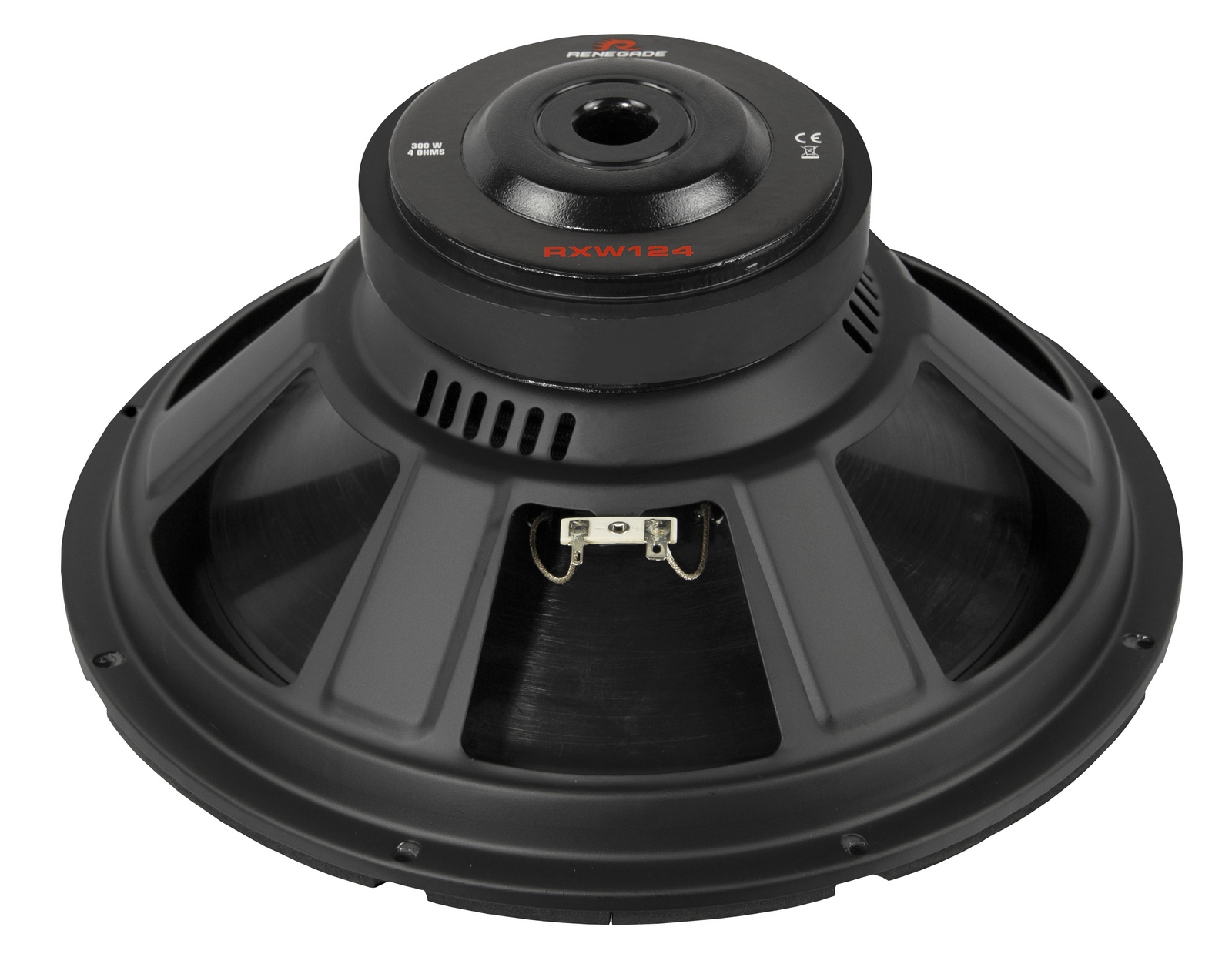

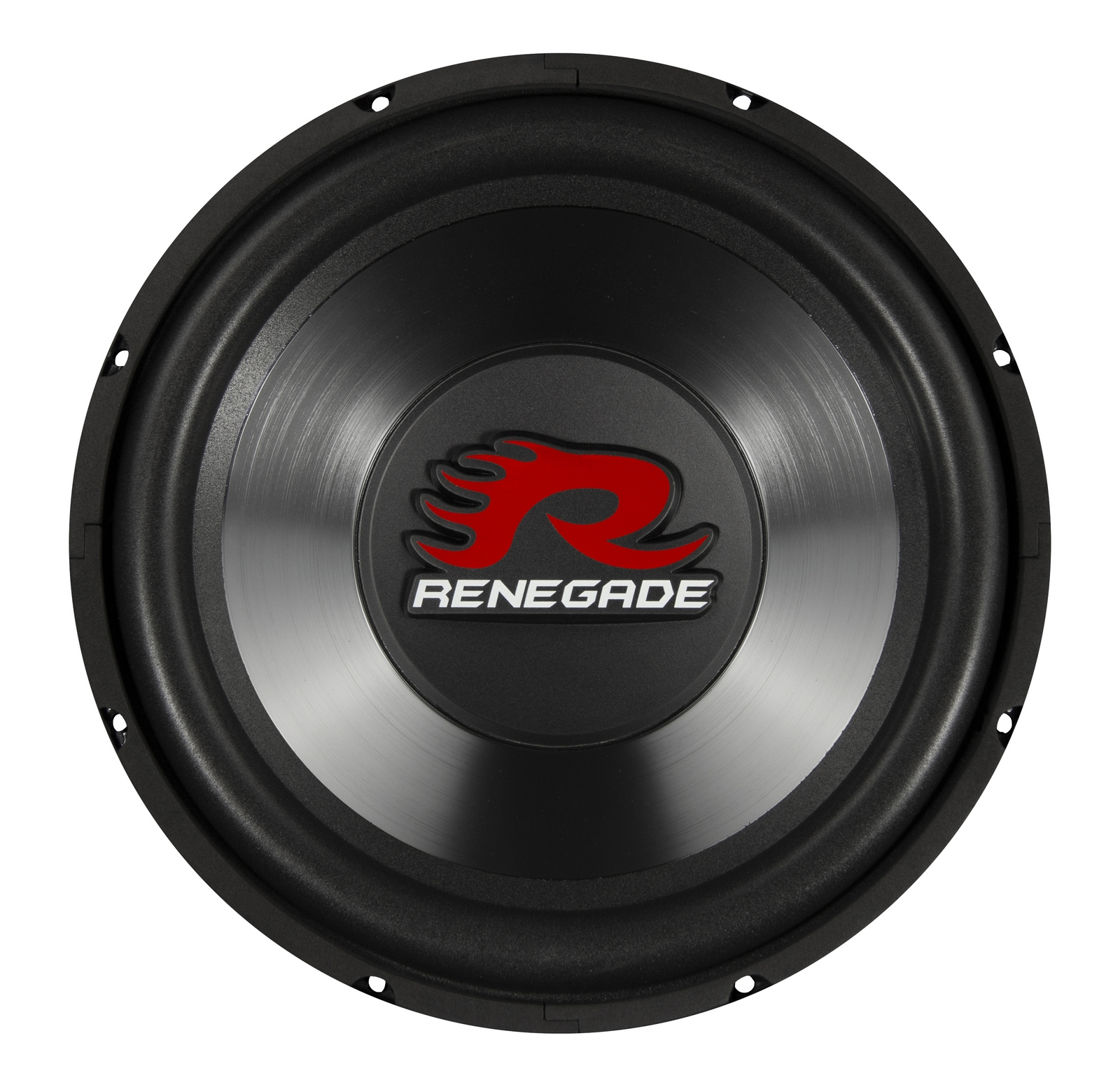

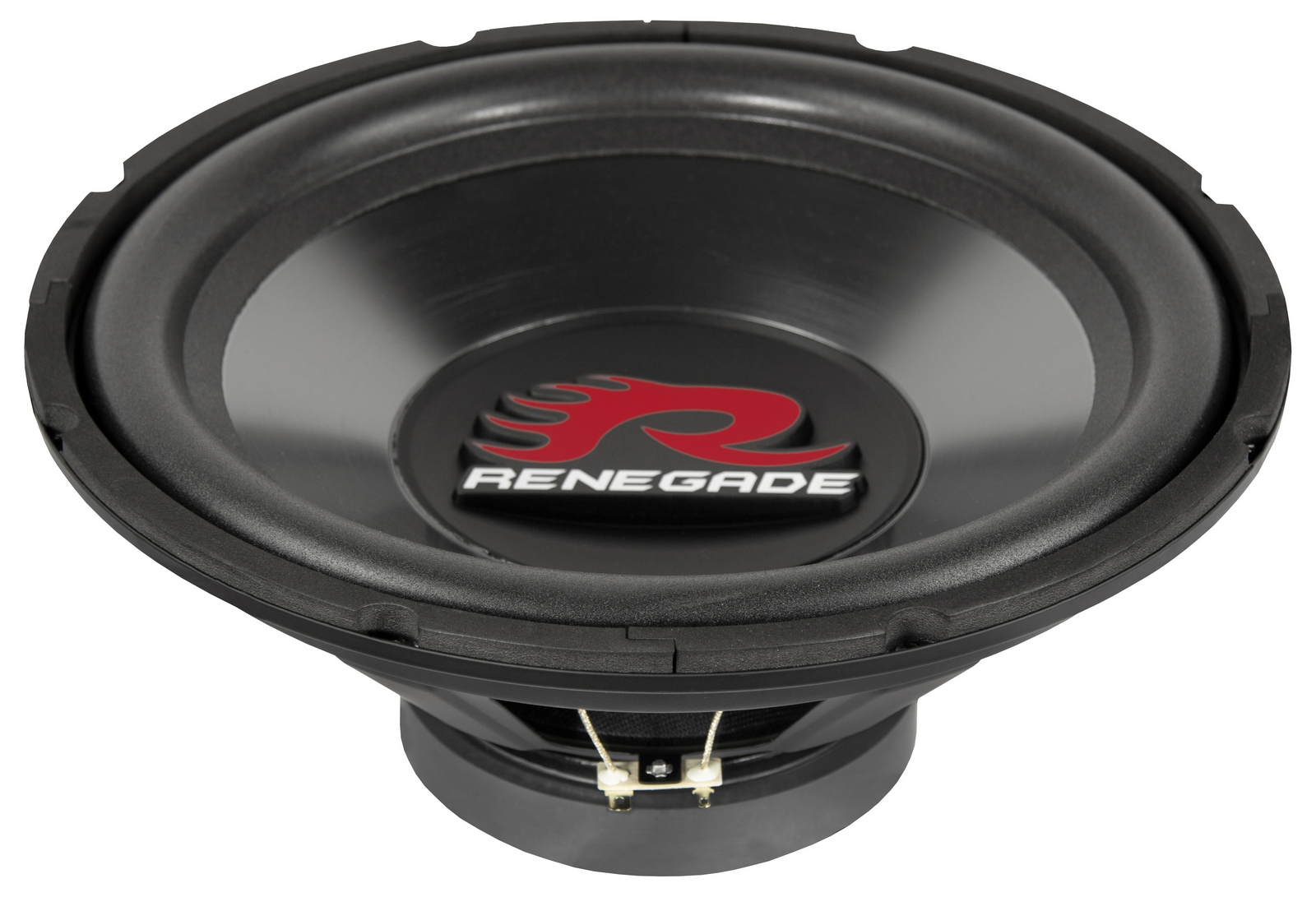

RENEGADE RXW124
4Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 32.3 Hz |
| Q factor | 0.46 |
| Sensitivity | 88.6 dB |
| Linear excursion | ± 5.5 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 32.3Hz
- Mechanical quality factor QMS 5.36
- Electrical quality factor QES 0.51
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion (one way) xmax 5.5mm
- Maximum excursion before damage xlim 16mm
- Air volume displaced at xmax VD 283cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz) LE 1.63mH
- VC Diameter 50mm
- Winding height HVC 19mm
- Former material Kapton
Magnet
- Force factor Bl 12.6N/A
- Motor constant Bl/√RE 7.04N/√W
- Diameter 134mm
- Height 20mm
- Weight 1.077kg
- Material Y25 Magnet
Diaphragm
- Effective diameter 256mm
- Effective area SD 514cm²
- Moving mass MMS 124g
- Moving mass (without air load) MMD 116g
- Material Polypropylene
Suspensions
- Stiffness KMS 5.13N/mm
- Compliance CMS 195µm/N
- Equivalent volume to the compliance VAS 72.5L
- Mechanical resistance RMS 4.7N·s/m
- Surround material Foam
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 305mm
- Baffle cutout diameter 280mm
- Mounting depth 129mm
- Volume occupied by the driver (estimated) 2L
- Net weight 4.7kg
- Frame material Steel
