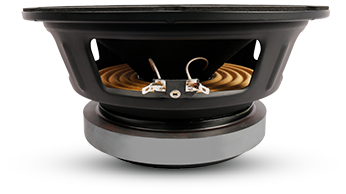

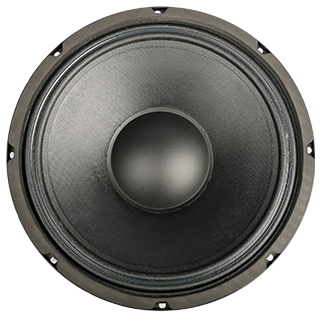

SB Audience BIANCO-10MW150
8Ω
Woofer
| Nominal diameter | 10″ / 258 mm |
| Resonance | 65 Hz |
| Q factor | 0.39 |
| Sensitivity | 93.9 dB |
| Linear excursion | ± 5.6 mm |
| Program Power | 300 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.9dB
- Frequency response 65 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 65Hz
- Mechanical quality factor QMS 12.08
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 5.6mm
- Maximum excursion before damage xlim 11mm
- Air volume displaced at xmax VD 206cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.1Ω
- Inductance (1kHz) LE 0.64mH
- VC Diameter 60.5mm
- Winding height HVC 13.9mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.23T
- Force factor Bl 15.1N/A
- Motor constant Bl/√RE 6.69N/√W
- Air gap height HAG 8mm
- Diameter 170mm
- Material Ferrite
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass MMS 44.4g
- Moving mass (without air load) MMD 39.4g
- Material Paper
Suspensions
- Stiffness KMS 7.14N/mm
- Compliance CMS 140µm/N
- Equivalent volume to the compliance VAS 25.8L
- Mechanical resistance RMS 1.5N·s/m
- Surround material Treated Cloth

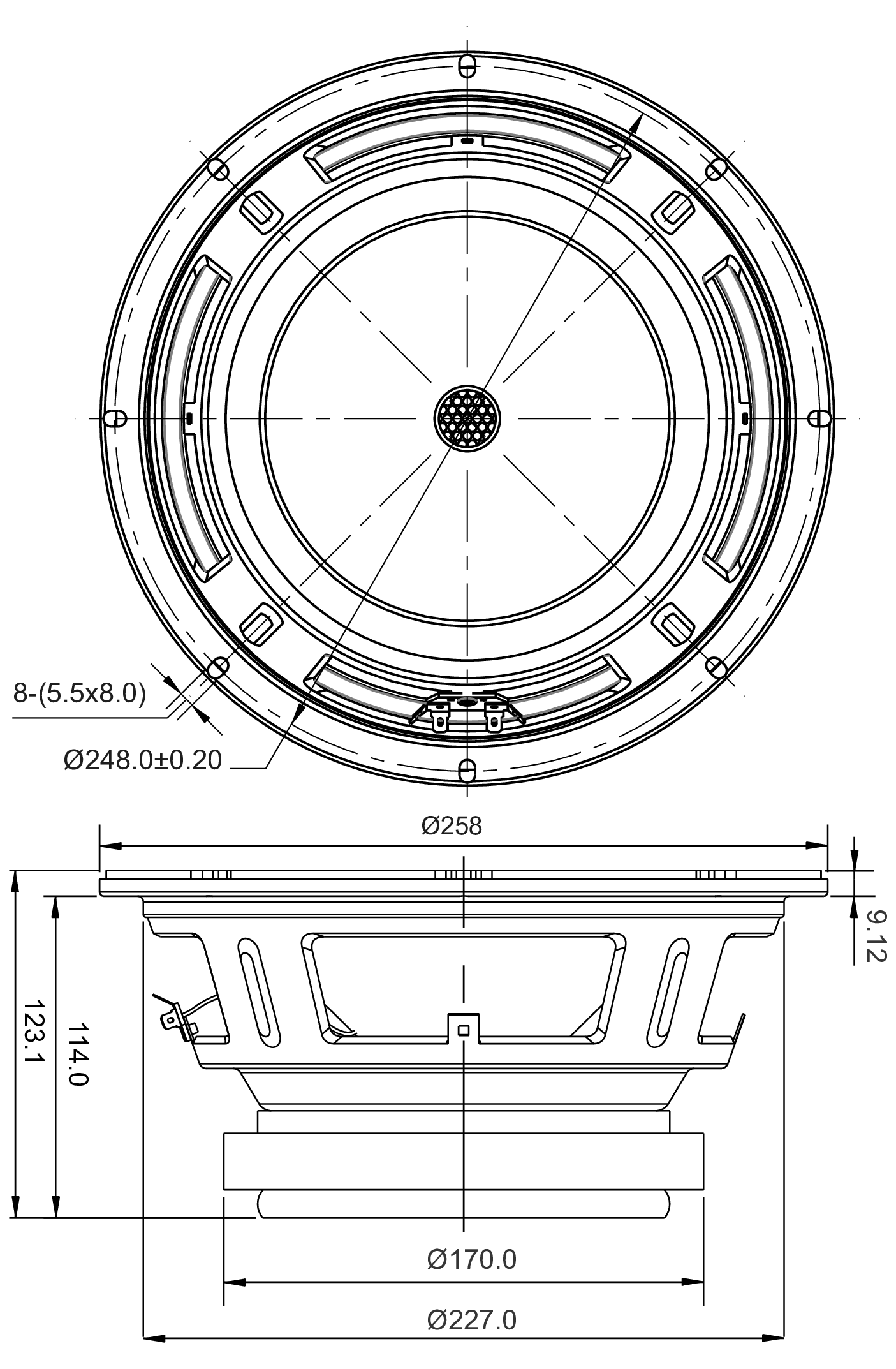

Dimensions
- Nominal diameter 10″
- 258mm
- Overall diameter 258mm
- Baffle cutout diameter 229mm
- Overall depth 123mm
- Flange thickness 9mm
- Mounting depth 114mm
- Volume occupied by the driver 3.16L
- Net weight 4.9kg
- Frame material Stamped steel
