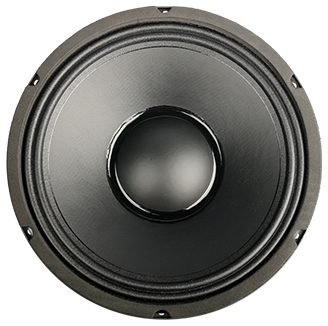

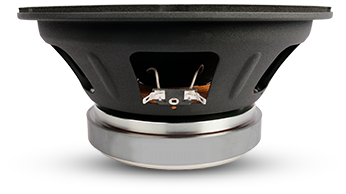

SB Audience BIANCO-10MW200
8Ω
Woofer
| Nominal diameter | 10″ / 257 mm |
| Resonance | 56 Hz |
| Q factor | 0.36 |
| Sensitivity | 93.4 dB |
| Linear excursion | ± 6.7 mm |
| Program Power | 500 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.4dB
- Frequency response 56 - 7100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 56Hz
- Mechanical quality factor QMS 2.28
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.36
Large signal parameters
- Maximum linear excursion xmax 6.7mm
- Maximum excursion before damage xlim 11mm
- Air volume displaced at xmax VD 246cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.6mH
- VC Diameter 60.5mm
- Winding height HVC 16.8mm
- Winding material Copper clad aluminium
- Former material Kapton
Magnet
- Flux density B 1.1T
- Force factor Bl 13N/A
- Motor constant Bl/√RE 5.49N/√W
- Air gap height HAG 10mm
- Diameter 156mm
- Material Ferrite
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass MMS 38g
- Moving mass (without air load) MMD 33.1g
- Material Proprietary cone paper material with linter pulp
Suspensions
- Stiffness KMS 4.55N/mm
- Compliance CMS 220µm/N
- Equivalent volume to the compliance VAS 41L
- Mechanical resistance RMS 5.83N·s/m

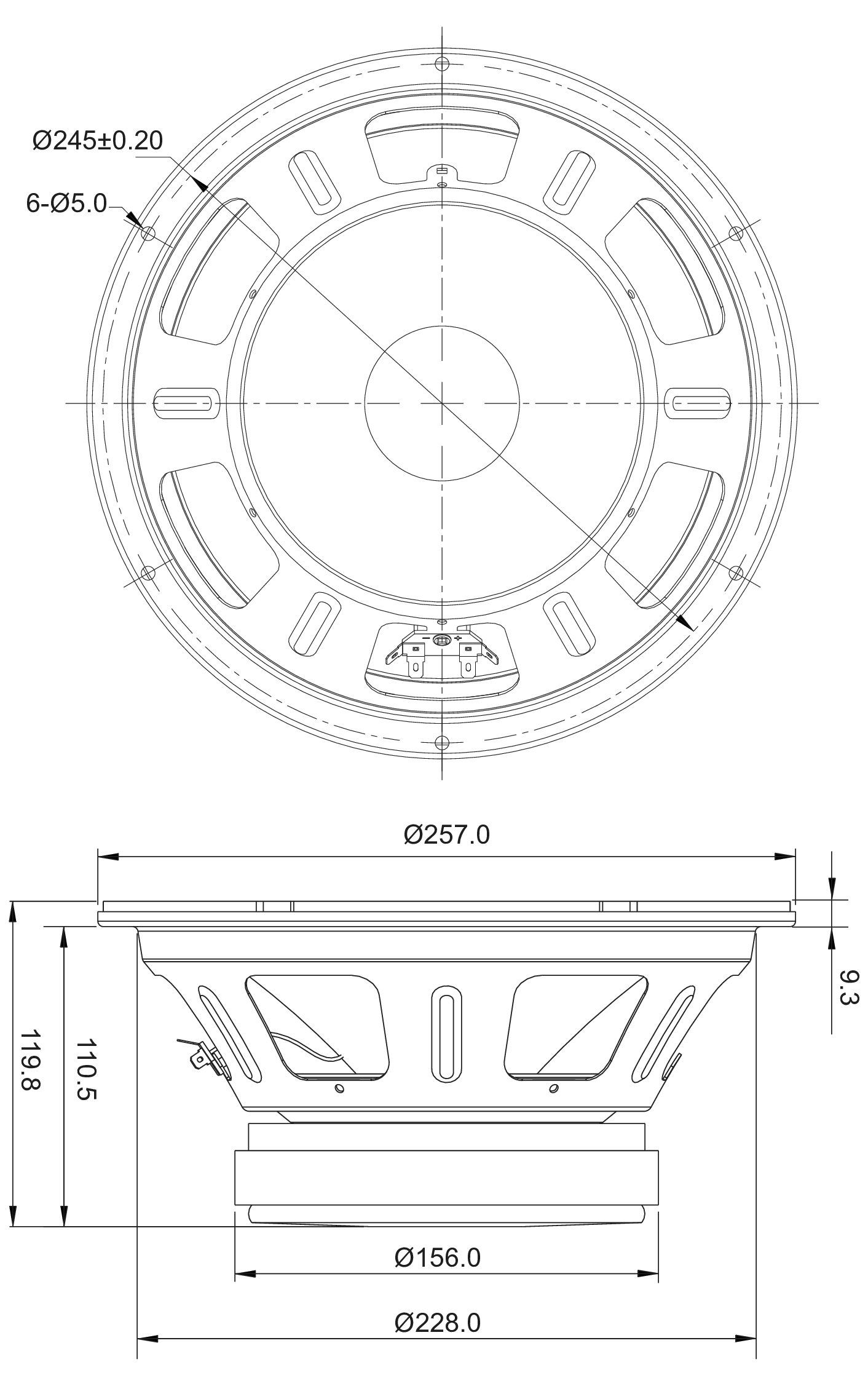

Dimensions
- Nominal diameter 10″
- 257mm
- Overall diameter 257mm
- Baffle cutout diameter 230mm
- Overall depth 120mm
- Flange thickness 9mm
- Mounting depth 111mm
- Volume occupied by the driver 1.68L
- Net weight 4.4kg
- Frame material Stamped steel
.png)
.png)
