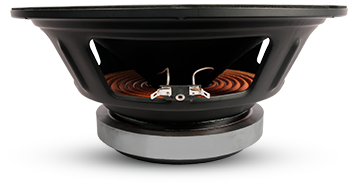

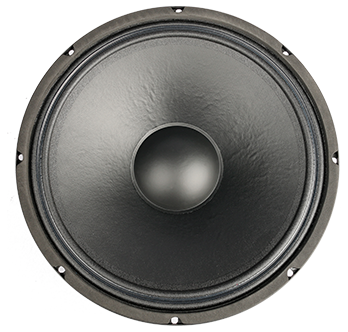

SB Audience BIANCO-12MW200
8Ω
Woofer
| Nominal diameter | 12″ / 306 mm |
| Resonance | 51 Hz |
| Q factor | 0.49 |
| Sensitivity | 93.4 dB |
| Linear excursion | ± 7 mm |
| Program Power | 400 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.4dB

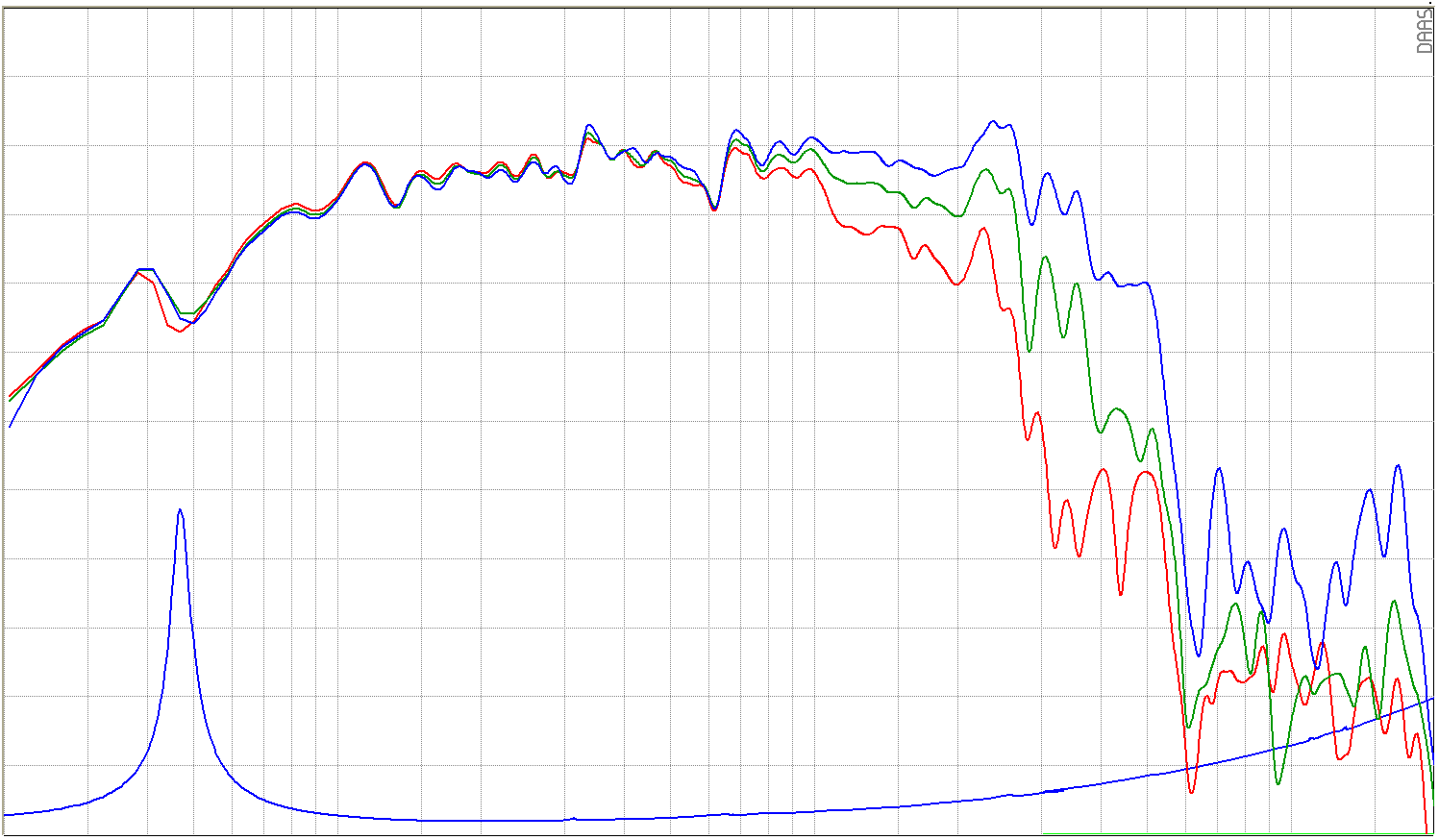

- Frequency response 51 - 5350Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 51Hz
- Mechanical quality factor QMS 14.33
- Electrical quality factor QES 0.51
- Total quality factor QTS 0.49
Large signal parameters
- Maximum linear excursion xmax 7mm
- Maximum excursion before damage xlim 10mm
- Air volume displaced at xmax VD 379cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 0.83mH
- VC Diameter 60.5mm
- Winding height HVC 16.6mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.23T
- Force factor Bl 14.7N/A
- Motor constant Bl/√RE 6.39N/√W
- Air gap height HAG 8mm
- Diameter 170mm
- Material Ferrite
Diaphragm
- Effective diameter 263mm
- Effective area SD 543cm²
- Moving mass MMS 65.2g
- Moving mass (without air load) MMD 56.5g
- Material Paper
Suspensions
- Stiffness KMS 6.67N/mm
- Compliance CMS 150µm/N
- Equivalent volume to the compliance VAS 62.9L
- Mechanical resistance RMS 1.45N·s/m
- Surround material Double half roll with damping glue

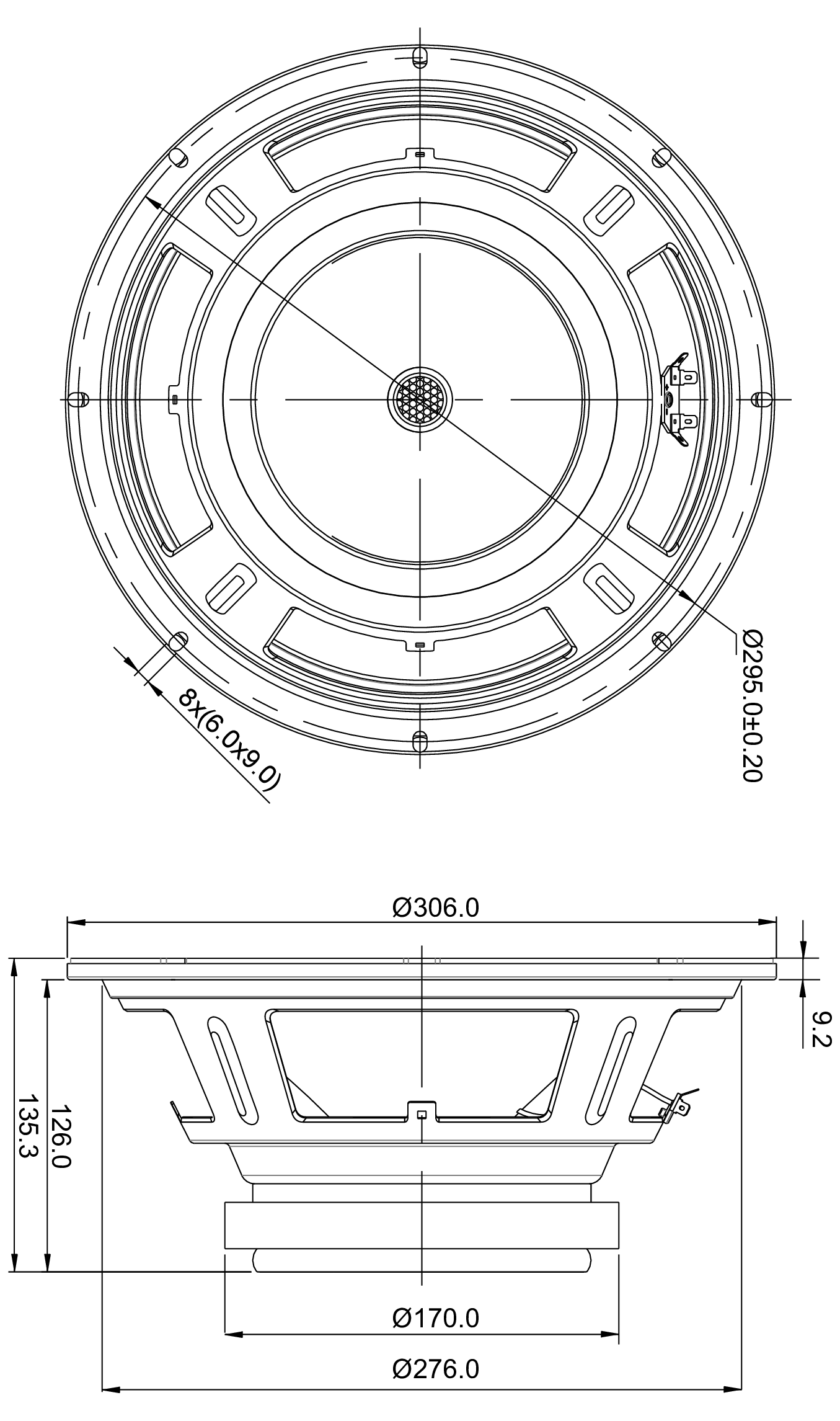

Dimensions
- Nominal diameter 12″
- 306mm
- Overall diameter 306mm
- Baffle cutout diameter 278mm
- Overall depth 135mm
- Flange thickness 9mm
- Mounting depth 126mm
- Volume occupied by the driver 3.33L
- Net weight 5.05kg
- Frame material Stamped steel
