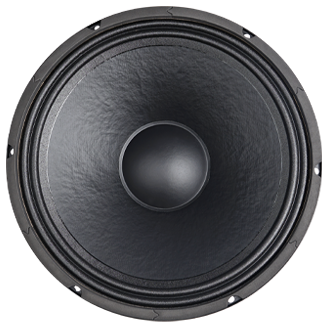

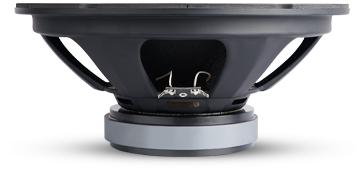

SB Audience BIANCO-12OB150-01
8Ω
Subwoofer
| Nominal diameter | 12″ / 305 mm |
| Resonance | 44 Hz |
| Q factor | 0.63 |
| Sensitivity | 92.2 dB |
| Linear excursion | ± 6.8 mm |
| Program Power | 300 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.2dB

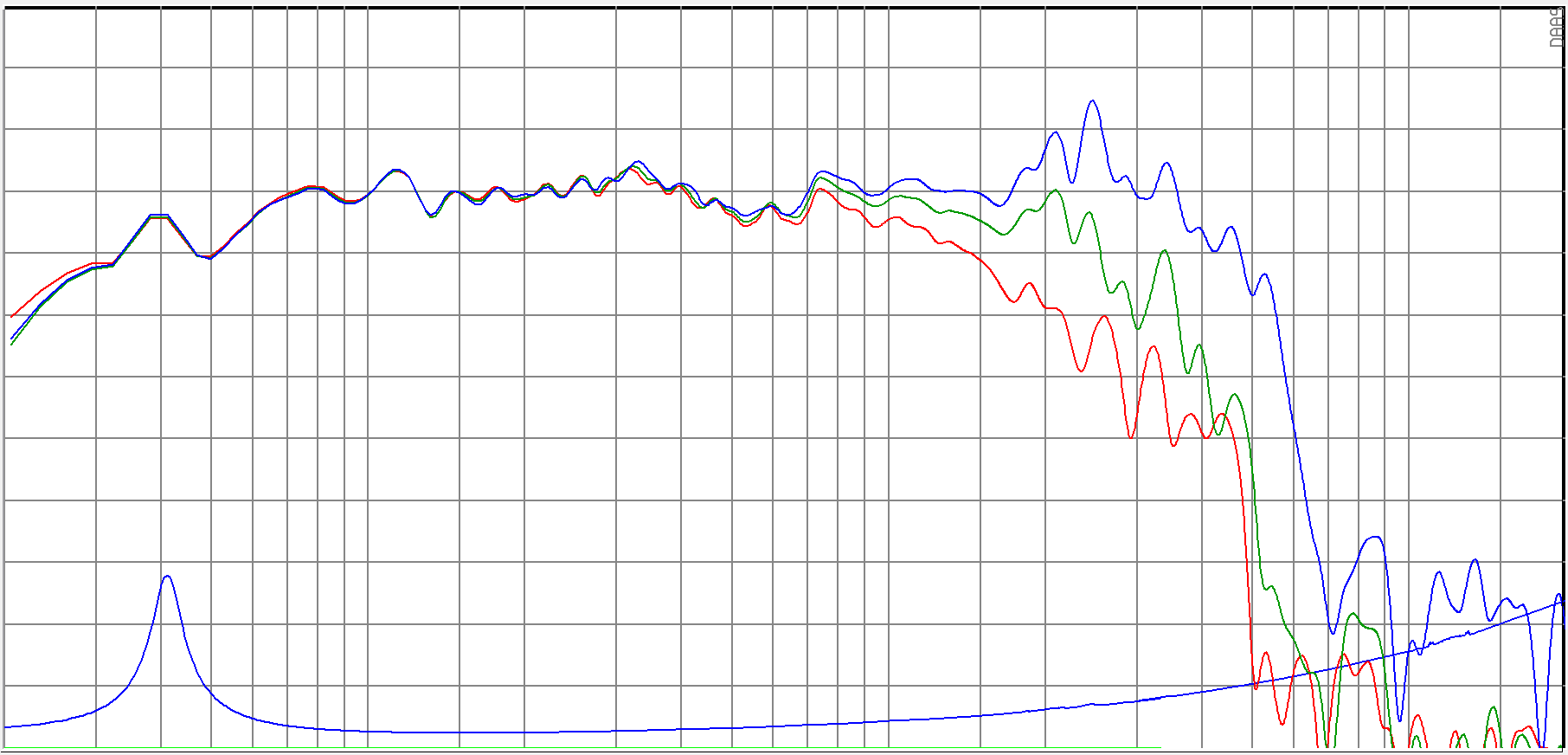

- Frequency response 44 - 5550Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 44Hz
- Mechanical quality factor QMS 6.39
- Electrical quality factor QES 0.69
- Total quality factor QTS 0.63
Large signal parameters
- Maximum linear excursion xmax 6.8mm
- Maximum excursion before damage xlim 11mm
- Air volume displaced at xmax VD 366cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 7.2Ω
- Inductance (1kHz) LE 1.18mH
- VC Diameter 60.5mm
- Winding height HVC 16.3mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 0.89T
- Force factor Bl 12.2N/A
- Motor constant Bl/√RE 4.55N/√W
- Air gap height HAG 8mm
- Diameter 145mm
- Material Ferrite
Diaphragm
- Effective diameter 262mm
- Effective area SD 539cm²
- Moving mass MMS 52.4g
- Moving mass (without air load) MMD 43.8g
- Material Paper
Suspensions
- Stiffness KMS 4N/mm
- Compliance CMS 250µm/N
- Equivalent volume to the compliance VAS 104L
- Mechanical resistance RMS 2.26N·s/m
Dimensions
- Nominal diameter 12″
- 305mm
- Overall diameter 305mm
- Baffle cutout diameter 278mm
- Overall depth 132mm
- Flange thickness 10mm
- Mounting depth 123mm
- Volume occupied by the driver 2.04L
- Net weight 3.6kg
- Frame material Stamped steel
.png)
.png)
