SB Audience BIANCO-15MW200
8Ω
Woofer
| Nominal diameter | 15″ / 384 mm |
| Resonance | 44 Hz |
| Q factor | 0.58 |
| Sensitivity | 94.8 dB |
| Linear excursion | ± 5.9 mm |
| Program Power | 400 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.8dB
- Frequency response 44 - 4250Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 44Hz
- Mechanical quality factor QMS 15.19
- Electrical quality factor QES 0.61
- Total quality factor QTS 0.58
Large signal parameters
- Maximum linear excursion xmax 5.9mm
- Maximum excursion before damage xlim 10mm
- Air volume displaced at xmax VD 488cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.8Ω
- Inductance (1kHz) LE 1.02mH
- VC Diameter 60.5mm
- Winding height HVC 14.5mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.15T
- Force factor Bl 15.9N/A
- Motor constant Bl/√RE 6.1N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 324mm
- Effective area SD 825cm²
- Moving mass MMS 80.9g
- Moving mass (without air load) MMD 64.3g
- Material Paper
Suspensions
- Stiffness KMS 6.25N/mm
- Compliance CMS 160µm/N
- Equivalent volume to the compliance VAS 153L
- Mechanical resistance RMS 1.48N·s/m

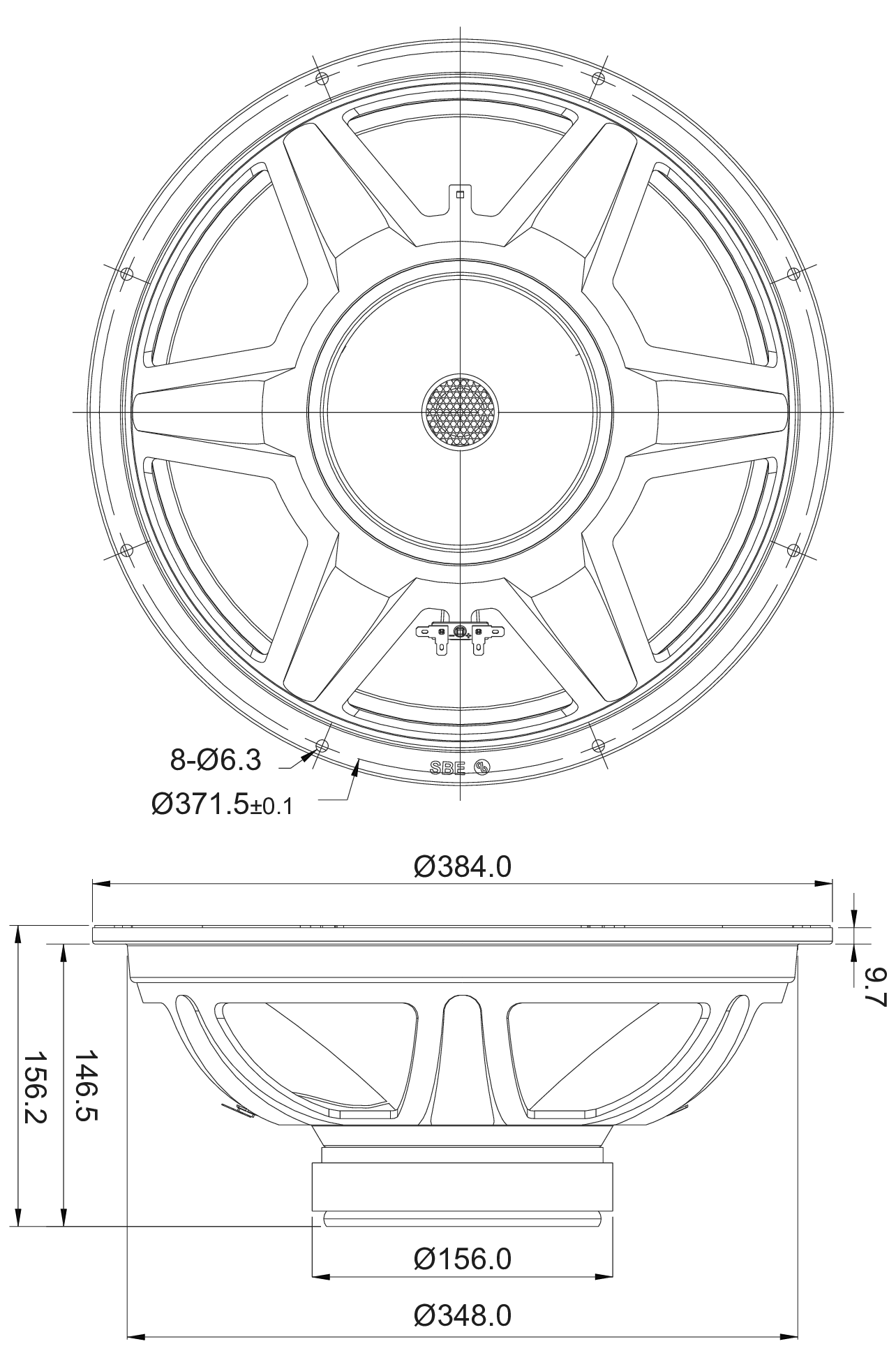

Dimensions
- Nominal diameter 15″
- 384mm
- Overall diameter 384mm
- Baffle cutout diameter 350mm
- Overall depth 156mm
- Flange thickness 10mm
- Mounting depth 147mm
- Volume occupied by the driver 3.54L
- Net weight 5.12kg
- Frame material Stamped steel
