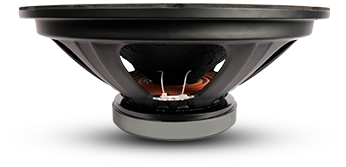

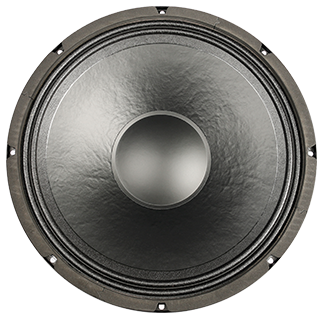

SB Audience BIANCO-15MW350
8Ω
Woofer
| Nominal diameter | 15″ / 391 mm |
| Resonance | 39 Hz |
| Q factor | 0.48 |
| Sensitivity | 94 dB |
| Linear excursion | ± 7.4 mm |
| Program Power | 700 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94dB
- Frequency response 39 - 3800Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 39Hz
- Mechanical quality factor QMS 13.09
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion xmax 7.4mm
- Maximum excursion before damage xlim 13mm
- Air volume displaced at xmax VD 635cm³
- Power handling P 350W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 1.12mH
- VC Diameter 65.5mm
- Winding height HVC 17.5mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.23T
- Force factor Bl 16.9N/A
- Motor constant Bl/√RE 7.34N/√W
- Air gap height HAG 8mm
- Diameter 180mm
- Material Ferrite
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass MMS 109g
- Moving mass (without air load) MMD 91.1g
- Material Paper
Suspensions
- Stiffness KMS 6.67N/mm
- Compliance CMS 150µm/N
- Equivalent volume to the compliance VAS 158L
- Mechanical resistance RMS 2.04N·s/m

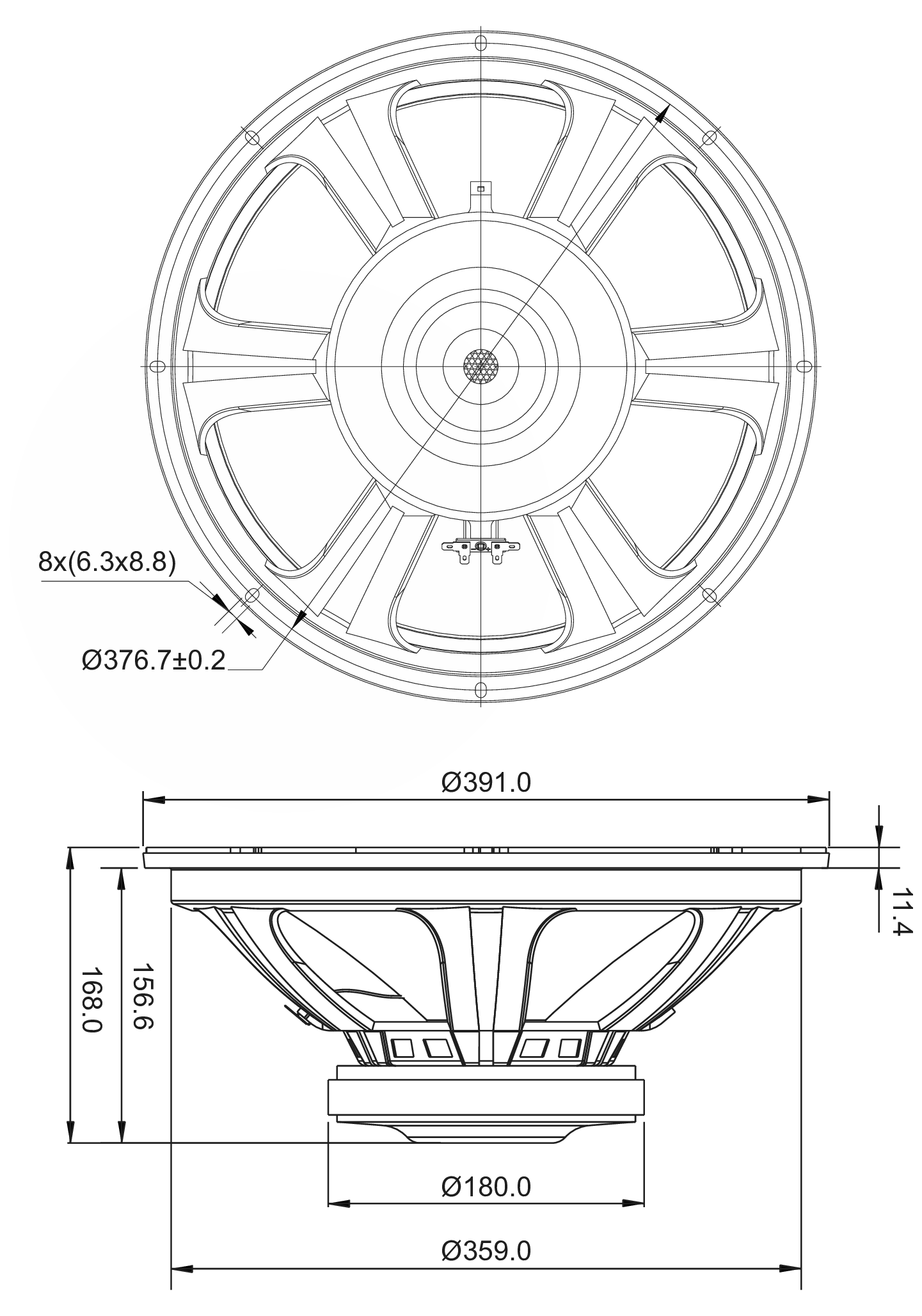

Dimensions
- Nominal diameter 15″
- 391mm
- Overall diameter 391mm
- Baffle cutout diameter 361mm
- Overall depth 168mm
- Flange thickness 11mm
- Mounting depth 157mm
- Volume occupied by the driver 7.84L
- Net weight 6.3kg
- Frame material Stamped steel
.png)
.png)
