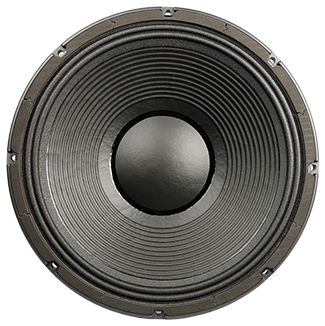

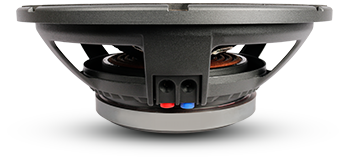

SB Audience BIANCO-15SW400
8Ω
Subwoofer
| Nominal diameter | 15″ / 394 mm |
| Resonance | 41 Hz |
| Q factor | 0.48 |
| Sensitivity | 93.5 dB |
| Linear excursion | ± 9.2 mm |
| Program Power | 800 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.5dB

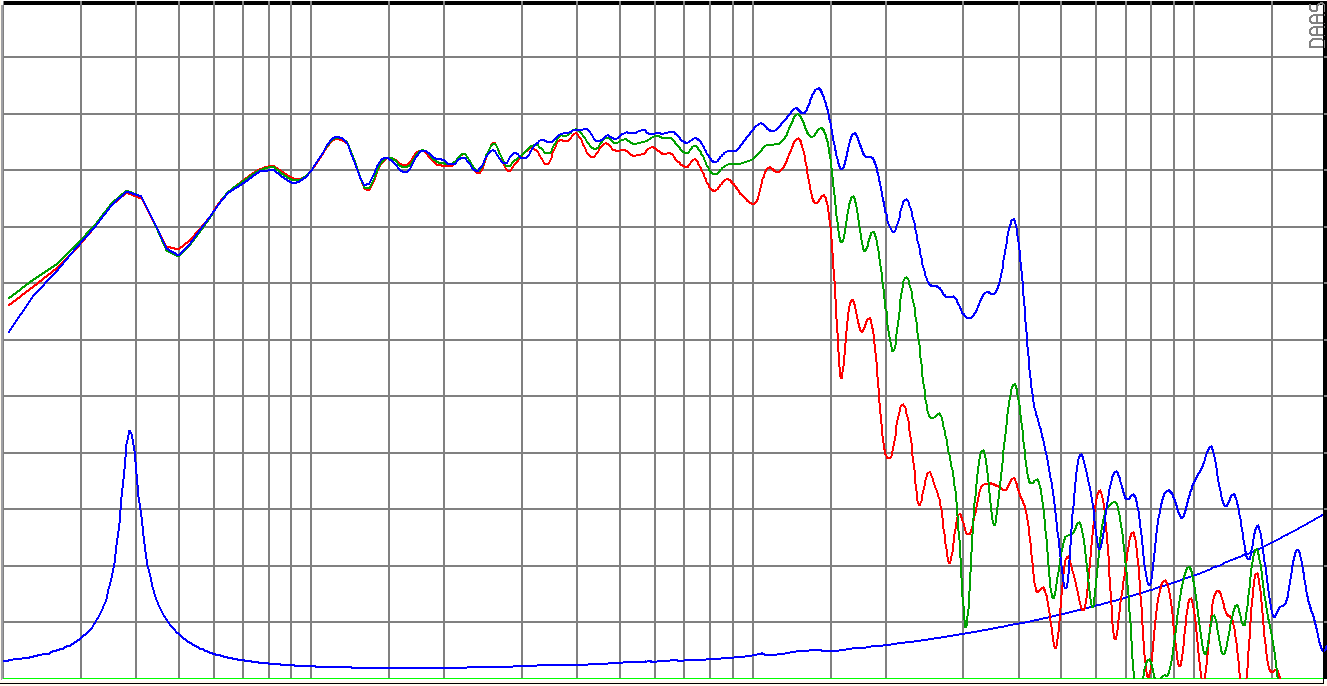

- Frequency response 41 - 2500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41Hz
- Mechanical quality factor QMS 22.45
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion (one way) xmax 9.2mm
- Maximum excursion before damage xlim 14mm
- Air volume displaced at xmax VD 777cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 1.29mH
- VC Diameter 99.2mm
- Winding height HVC 21.8mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.02T
- Force factor Bl 19.8N/A
- Motor constant Bl/√RE 8.44N/√W
- Air gap height HAG 10mm
- Diameter 220mm
- Material Ferrite
Diaphragm
- Effective diameter 328mm
- Effective area SD 845cm²
- Moving mass MMS 134g
- Moving mass (without air load) MMD 117g
- Material Proprietary cone paper material with silk cotton tree
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 112L
- Mechanical resistance RMS 1.55N·s/m
- Surround material Double half surround

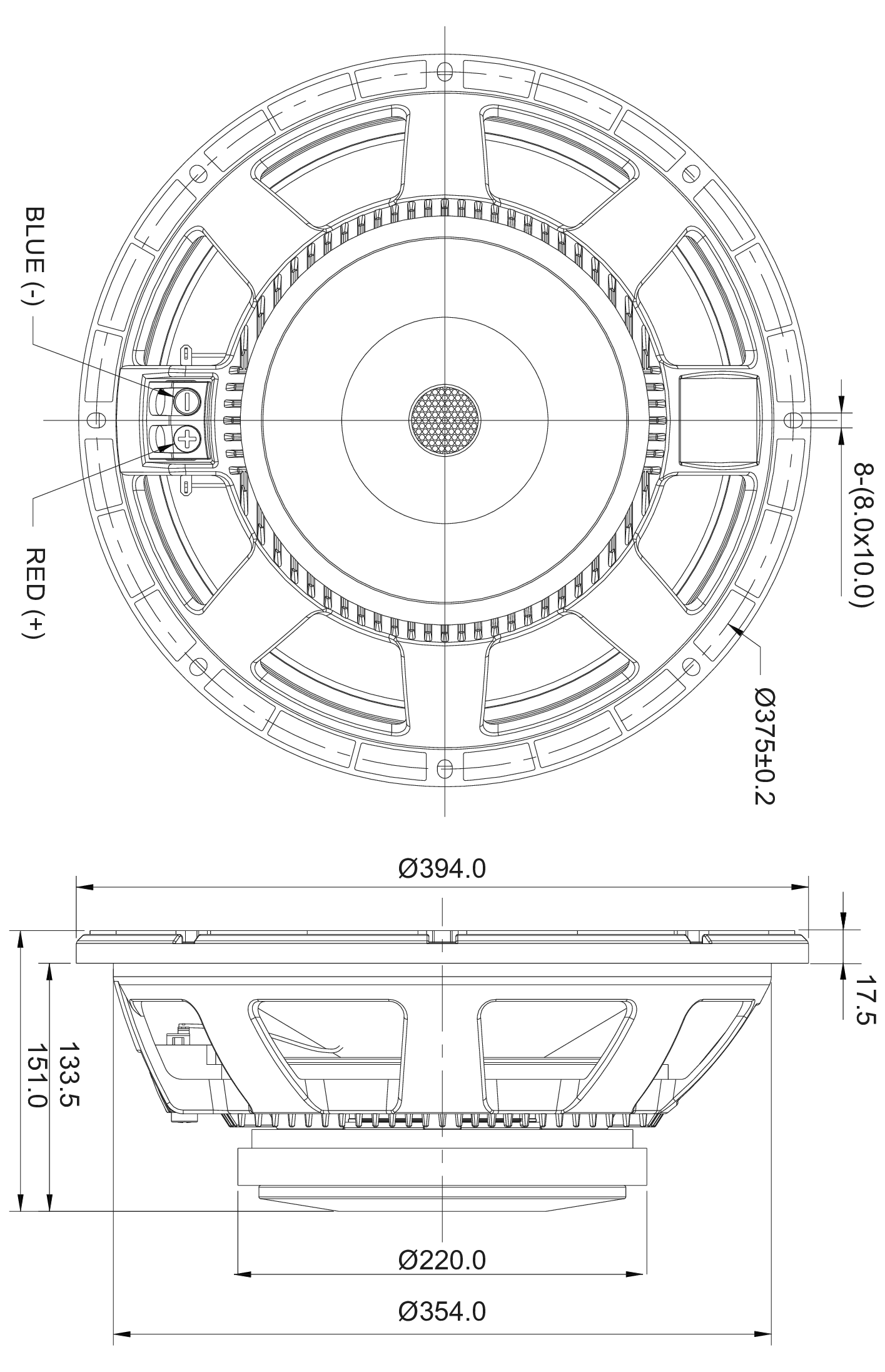

Dimensions
- Nominal diameter 15″
- 394mm
- Overall diameter 394mm
- Baffle cutout diameter 356mm
- Overall depth 151mm
- Flange thickness 18mm
- Mounting depth 134mm
- Volume occupied by the driver 4.69L
- Net weight 9.8kg
- Frame material Aluminium die cast
.png)
.png)
