SB Audience BIANCO-15SW600
8Ω
Subwoofer
| Nominal diameter | 15″ / 394 mm |
| Resonance | 35 Hz |
| Q factor | 0.38 |
| Sensitivity | 93.5 dB |
| Linear excursion | ± 11 mm |
| Program power | 1200 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.5dB
- Frequency response 34 - 2500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 7.80
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.38
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Maximum excursion before damage xlim 20mm
- Air volume displaced at xmax VD 947cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 1.51mH
- VC Diameter 99.2mm
- Winding height HVC 25.4mm
- Winding material Copper
- Former material Fiber glass (FIB)
Magnet
- Flux density B 1.05T
- Force factor Bl 20.2N/A
- Motor constant Bl/√RE 8.69N/√W
- Air gap height HAG 10mm
- Diameter 220mm
- Material Ferrite
Diaphragm
- Effective diameter 331mm
- Effective area SD 861cm²
- Moving mass (including air load) MMS 138g
- Moving mass MMD 120g
- Material Proprietary paper cone pulp with silk cotton
Suspensions
- Stiffness KMS 6.67N/mm
- Compliance CMS 150µm/N
- Equivalent volume to the compliance VAS 159L
- Mechanical resistance RMS 3.85N·s/m
- Surround material Triple roll
- Spider material Single constant height waves

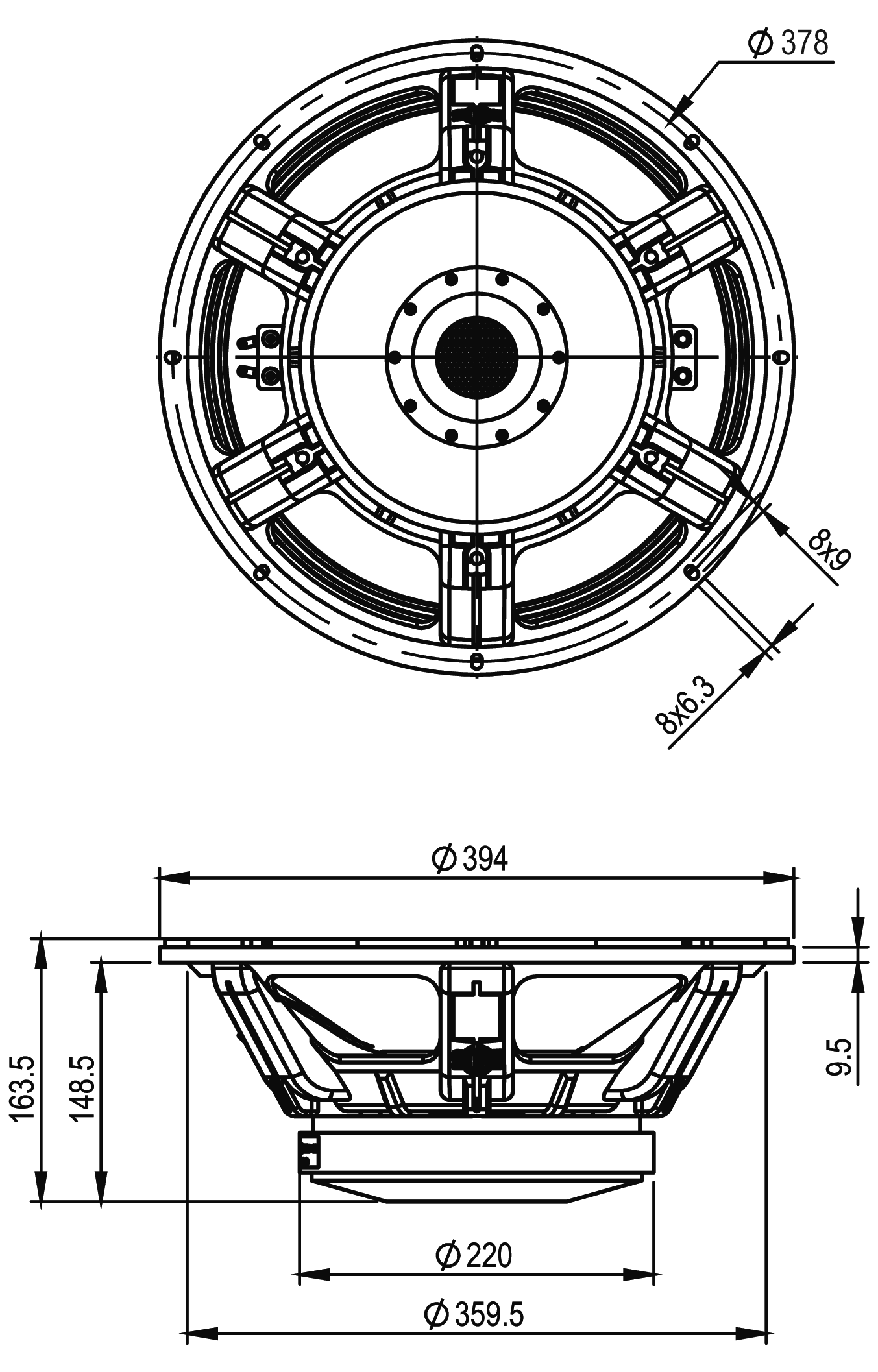

Dimensions
- Nominal diameter 15″
- 394mm
- Overall diameter 394mm
- Baffle cutout diameter 362mm
- Overall depth 158mm
- Flange thickness 10mm
- Mounting depth 149mm
- Volume occupied by the driver 5.03L
- Net weight 11.5kg
- Frame material Aluminium die cast
.png)
.png)
