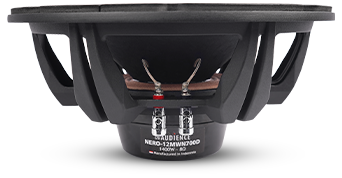

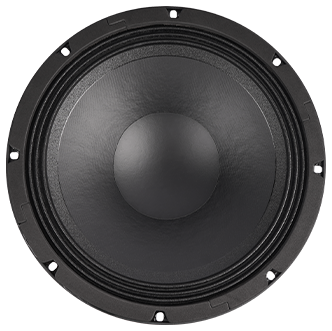

SB Audience NERO-12MWN700D
8Ω
Woofer
| Nominal diameter | 12″ / 323 mm |
| Resonance | 52.7 Hz |
| Q factor | 0.38 |
| Sensitivity | 95.2 dB |
| Linear excursion | ± 7.3 mm |
| Program Power | 1400 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.2dB
- Frequency response 52 - 6300Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 52.7Hz
- Mechanical quality factor QMS 8.90
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.38
Large signal parameters
- Maximum linear excursion xmax 7.3mm
- Maximum excursion before damage xlim 9mm
- Air volume displaced at xmax VD 397cm³
- Power handling P 700W
- Program power Pmax 1400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 0.32mH
- VC Diameter 75.6mm
- Winding height HVC 17.8mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.07T
- Force factor Bl 17.9N/A
- Motor constant Bl/√RE 7.78N/√W
- Air gap height HAG 10mm
- Material Neodymium
Diaphragm
- Effective diameter 263mm
- Effective area SD 543cm²
- Moving mass MMS 72.5g
- Moving mass (without air load) MMD 63.3g
- Material Paper
Suspensions
- Stiffness KMS 7.69N/mm
- Compliance CMS 130µm/N
- Equivalent volume to the compliance VAS 52.5L
- Mechanical resistance RMS 2.7N·s/m
- Surround material Triple roll

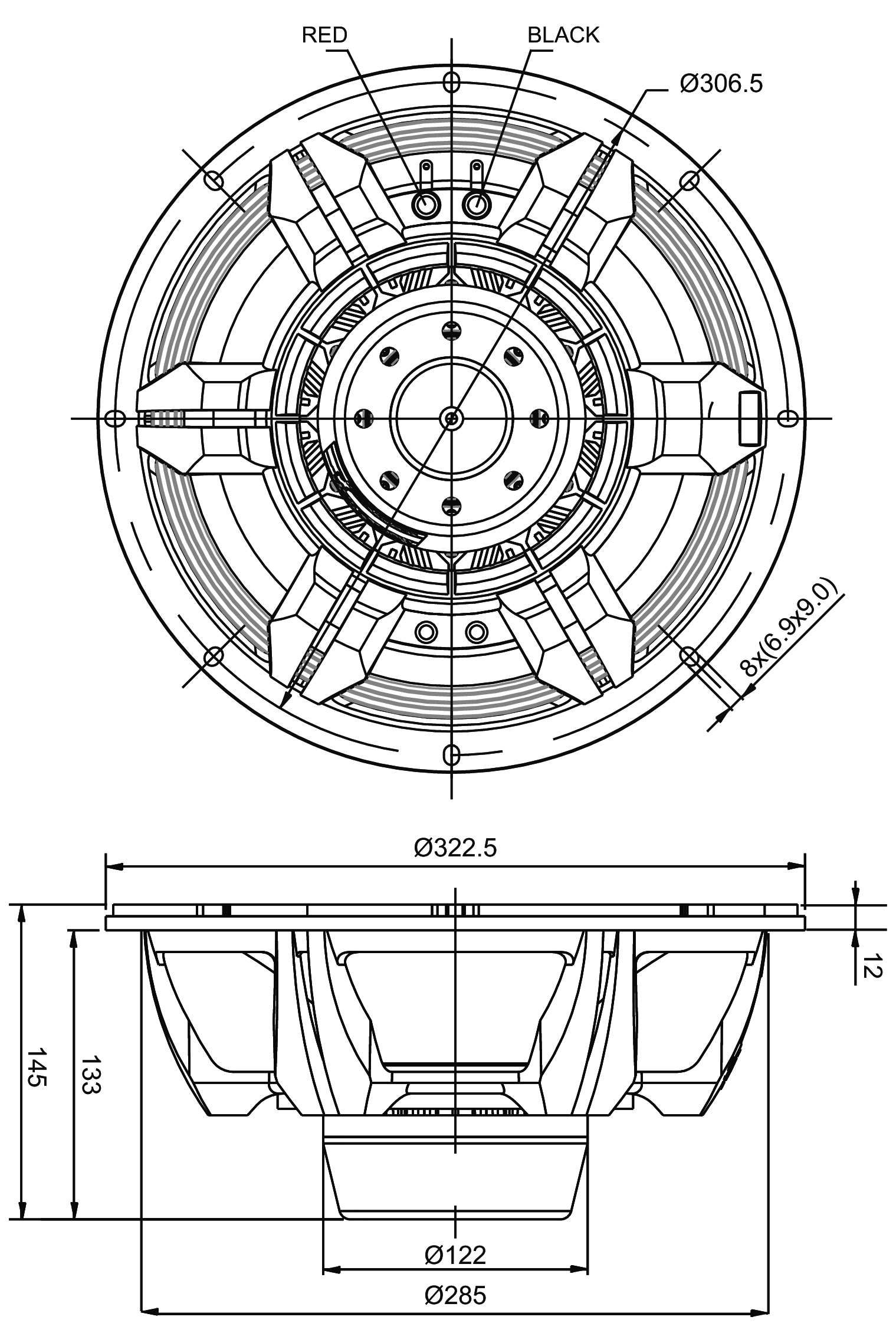

Dimensions
- Nominal diameter 12″
- 323mm
- Overall diameter 323mm
- Baffle cutout diameter 287mm
- Overall depth 145mm
- Flange thickness 12mm
- Mounting depth 133mm
- Volume occupied by the driver 2.15L
- Net weight 4.15kg
- Frame material Aluminium
.png)
.png)
