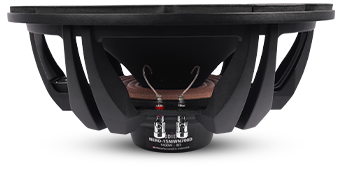

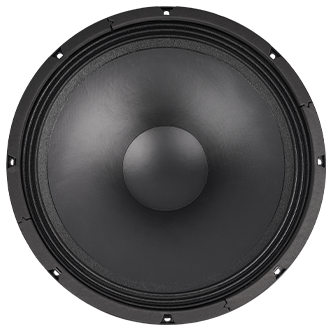

SB Audience NERO-15MWN700D
8Ω
Woofer
| Nominal diameter | 15″ / 394 mm |
| Resonance | 41.4 Hz |
| Q factor | 0.46 |
| Sensitivity | 96 dB |
| Linear excursion | ± 7.3 mm |
| Program Power | 1400 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96dB

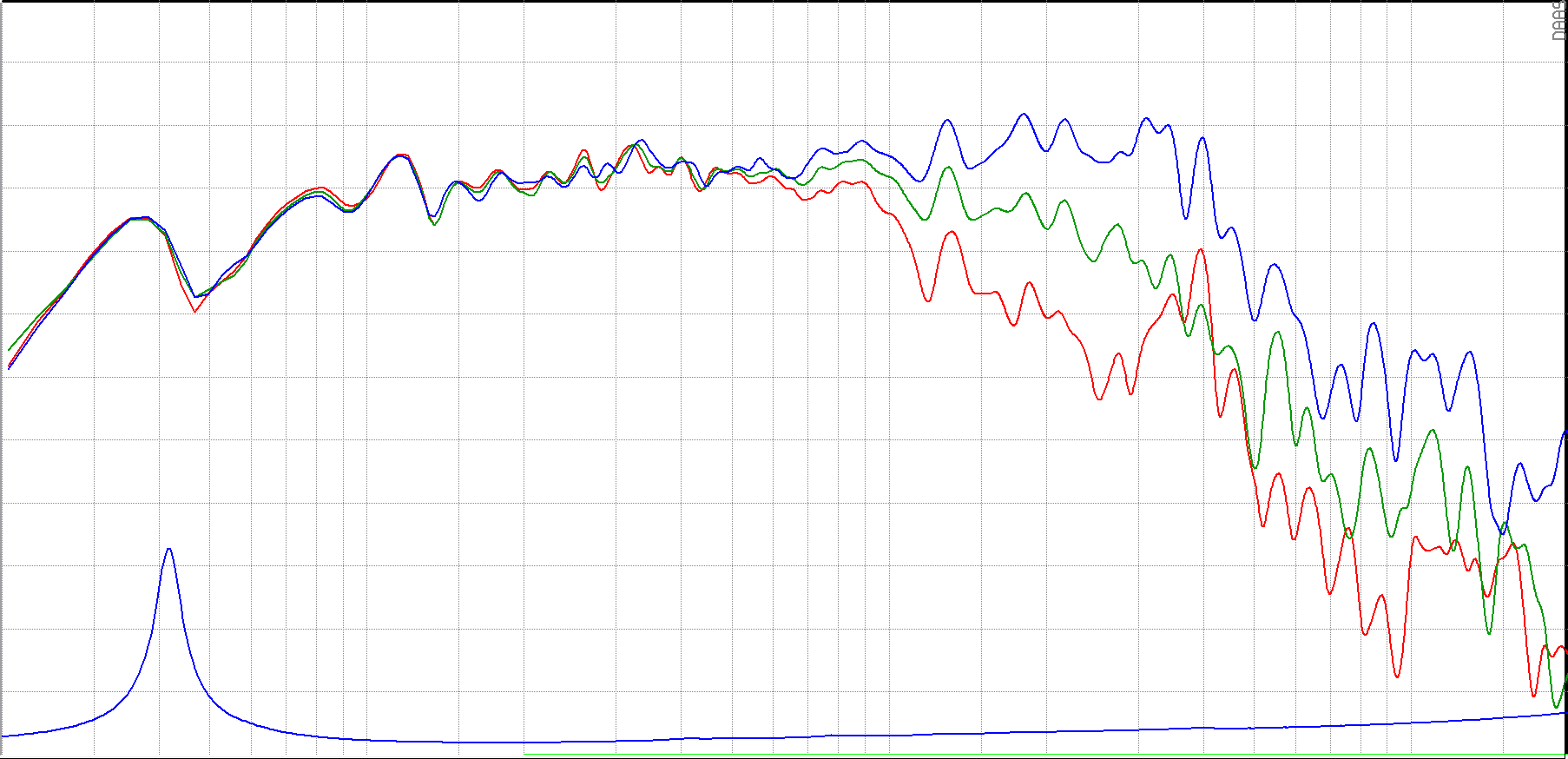

- Frequency response 41 - 5800Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41.4Hz
- Mechanical quality factor QMS 9.07
- Electrical quality factor QES 0.48
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion xmax 7.3mm
- Maximum excursion before damage xlim 12mm
- Air volume displaced at xmax VD 632cm³
- Power handling P 700W
- Program power Pmax 1400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.37mH
- VC Diameter 75.6mm
- Winding height HVC 17.8mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.07T
- Force factor Bl 17.7N/A
- Motor constant Bl/√RE 7.62N/√W
- Air gap height HAG 10mm
- Material Neodymium
Diaphragm
- Effective diameter 332mm
- Effective area SD 866cm²
- Moving mass MMS 108g
- Moving mass (without air load) MMD 89.7g
- Material Paper / Manila pulp
Suspensions
- Stiffness KMS 7.14N/mm
- Compliance CMS 140µm/N
- Equivalent volume to the compliance VAS 146L
- Mechanical resistance RMS 3.1N·s/m
- Surround material Triple roll with damping glue

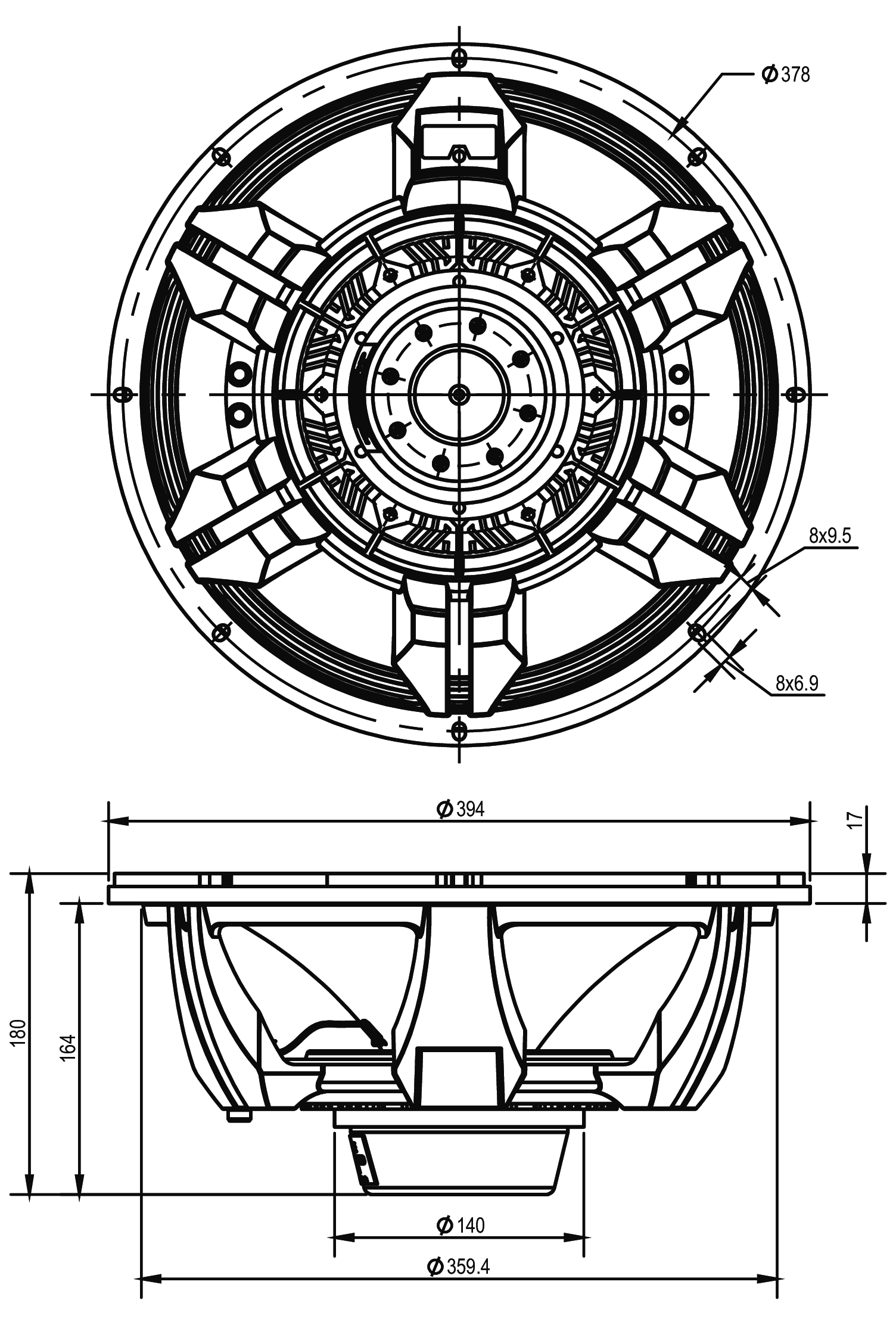

Dimensions
- Nominal diameter 15″
- 394mm
- Overall diameter 394mm
- Baffle cutout diameter 361mm
- Overall depth 180mm
- Flange thickness 17mm
- Mounting depth 164mm
- Volume occupied by the driver 7.78L
- Net weight 5.3kg
- Frame material Aluminium die cast
