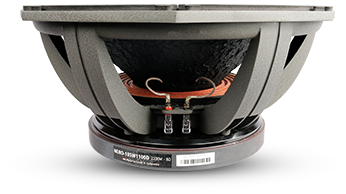

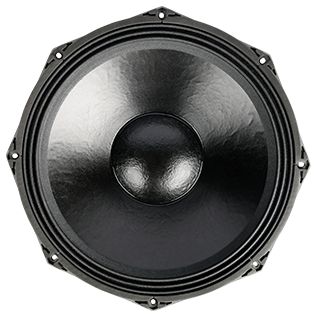

SB Audience NERO-18SW1100D
8Ω
Subwoofer
| Nominal diameter | 18″ / 483 mm |
| Resonance | 36 Hz |
| Q factor | 0.33 |
| Sensitivity | 94.5 dB |
| Linear excursion | ± 12.2 mm |
| Program Power | 2200 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.5dB

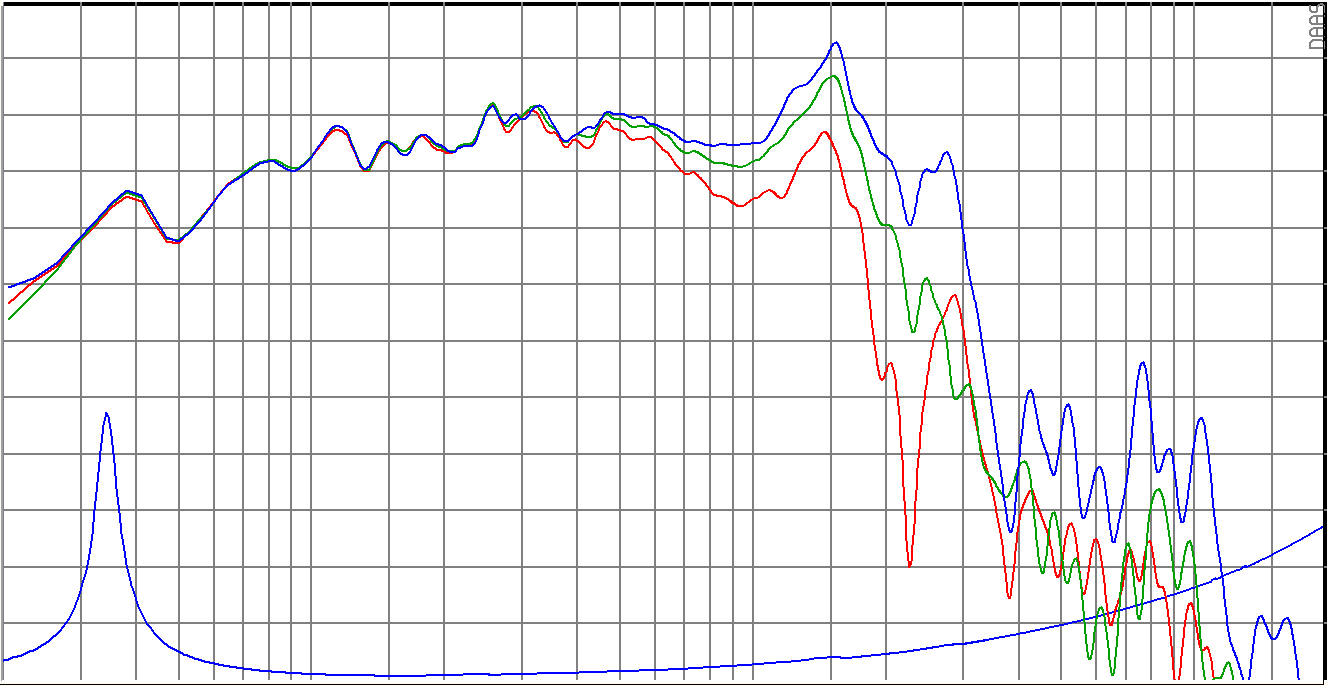

- Frequency response 36 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 36Hz
- Mechanical quality factor QMS 11.83
- Electrical quality factor QES 0.34
- Total quality factor QTS 0.33
Large signal parameters
- Maximum linear excursion xmax 12.2mm
- Maximum excursion before damage xlim 17.5mm
- Air volume displaced at xmax VD 1533cm³
- Power handling P 1100W
- Program power Pmax 2200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.0Ω
- Inductance (1kHz) LE 1.36mH
- VC Diameter 127mm
- Winding height HVC 28.2mm
- Winding material AISV Copper Wire
- Former material FIBSV
Magnet
- Flux density B 1.12T
- Force factor Bl 30.9N/A
- Motor constant Bl/√RE 13.8N/√W
- Air gap height HAG 12mm
- Diameter 280mm
- Material Ferrite
Diaphragm
- Effective diameter 400mm
- Effective area SD 1257cm²
- Moving mass MMS 294g
- Moving mass (without air load) MMD 262g
- Material Proprietary cone paper material with silk cotton tree
Suspensions
- Stiffness KMS 14.3N/mm
- Compliance CMS 70µm/N
- Equivalent volume to the compliance VAS 153L
- Mechanical resistance RMS 5.54N·s/m

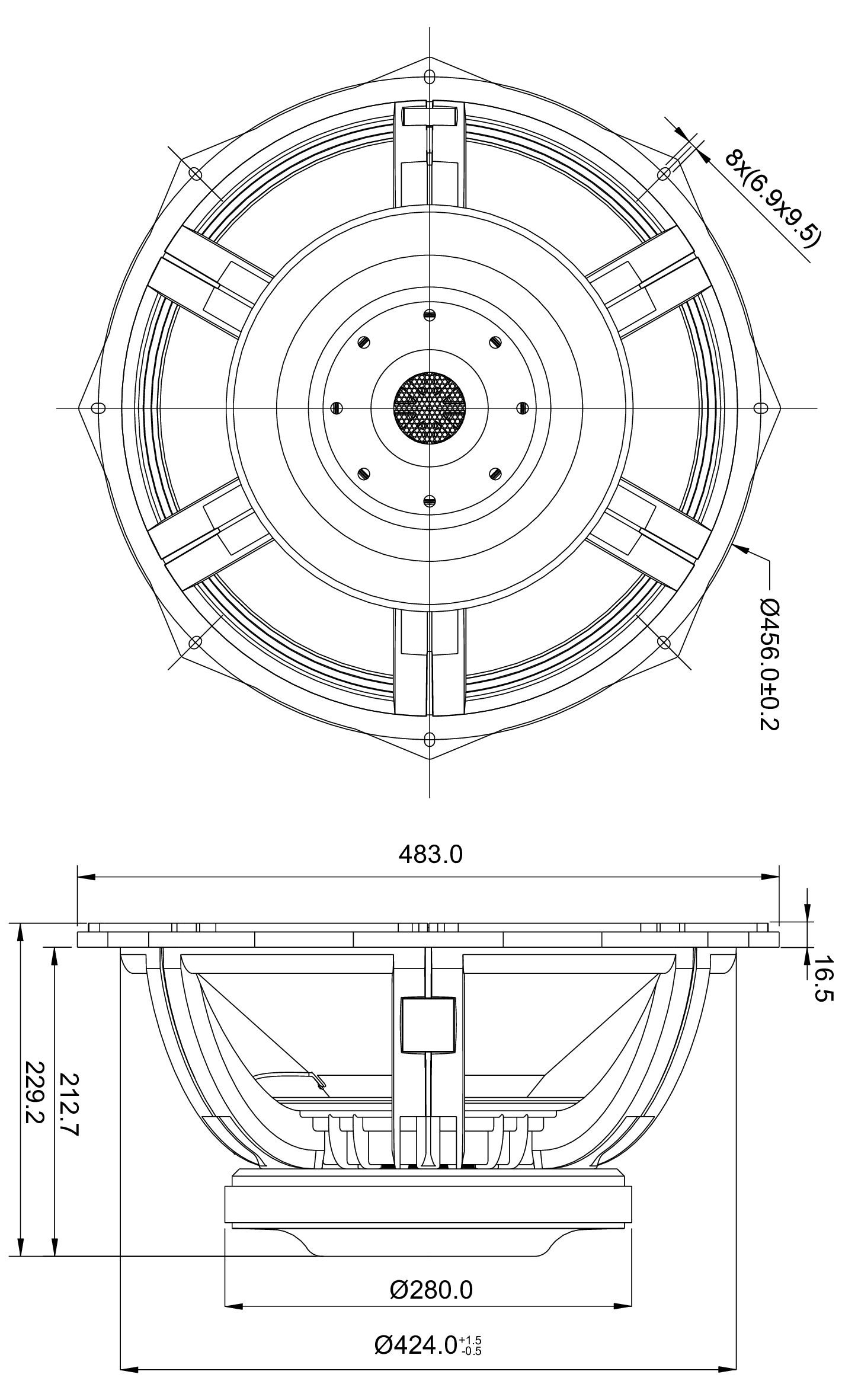

Dimensions
- Nominal diameter 18″
- 483mm
- Overall diameter 483mm
- Baffle cutout diameter 426mm
- Overall depth 229mm
- Flange thickness 17mm
- Mounting depth 213mm
- Volume occupied by the driver 10.5L
- Net weight 20.7kg
- Frame material Aluminium die cast
