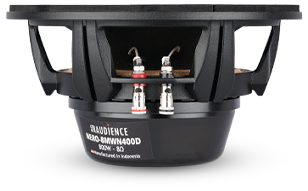

SB Audience NERO-8MWN400D
8Ω
Woofer
| Nominal diameter | 8″ / 208 mm |
| Resonance | 63 Hz |
| Q factor | 0.38 |
| Sensitivity | 91 dB |
| Linear excursion | ± 6.7 mm |
| Program Power | 800 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91dB
- Frequency response 62 - 8700Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 63Hz
- Mechanical quality factor QMS 4.07
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.38
Large signal parameters
- Maximum linear excursion xmax 6.7mm
- Maximum excursion before damage xlim 11mm
- Air volume displaced at xmax VD 140cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 0.25mH
- VC Diameter 60.6mm
- Winding height HVC 16mm
- Winding material Copper Clad Aluminium
- Former material Till
Magnet
- Flux density B 0.85T
- Force factor Bl 11.9N/A
- Motor constant Bl/√RE 5.22N/√W
- Air gap height HAG 8mm
- Material Neodymium
Diaphragm
- Effective diameter 163mm
- Effective area SD 209cm²
- Moving mass MMS 28.4g
- Moving mass (without air load) MMD 26.2g
- Material Paper
Suspensions
- Stiffness KMS 4.35N/mm
- Compliance CMS 230µm/N
- Equivalent volume to the compliance VAS 13.9L
- Mechanical resistance RMS 2.75N·s/m
- Surround material Treated Cloth

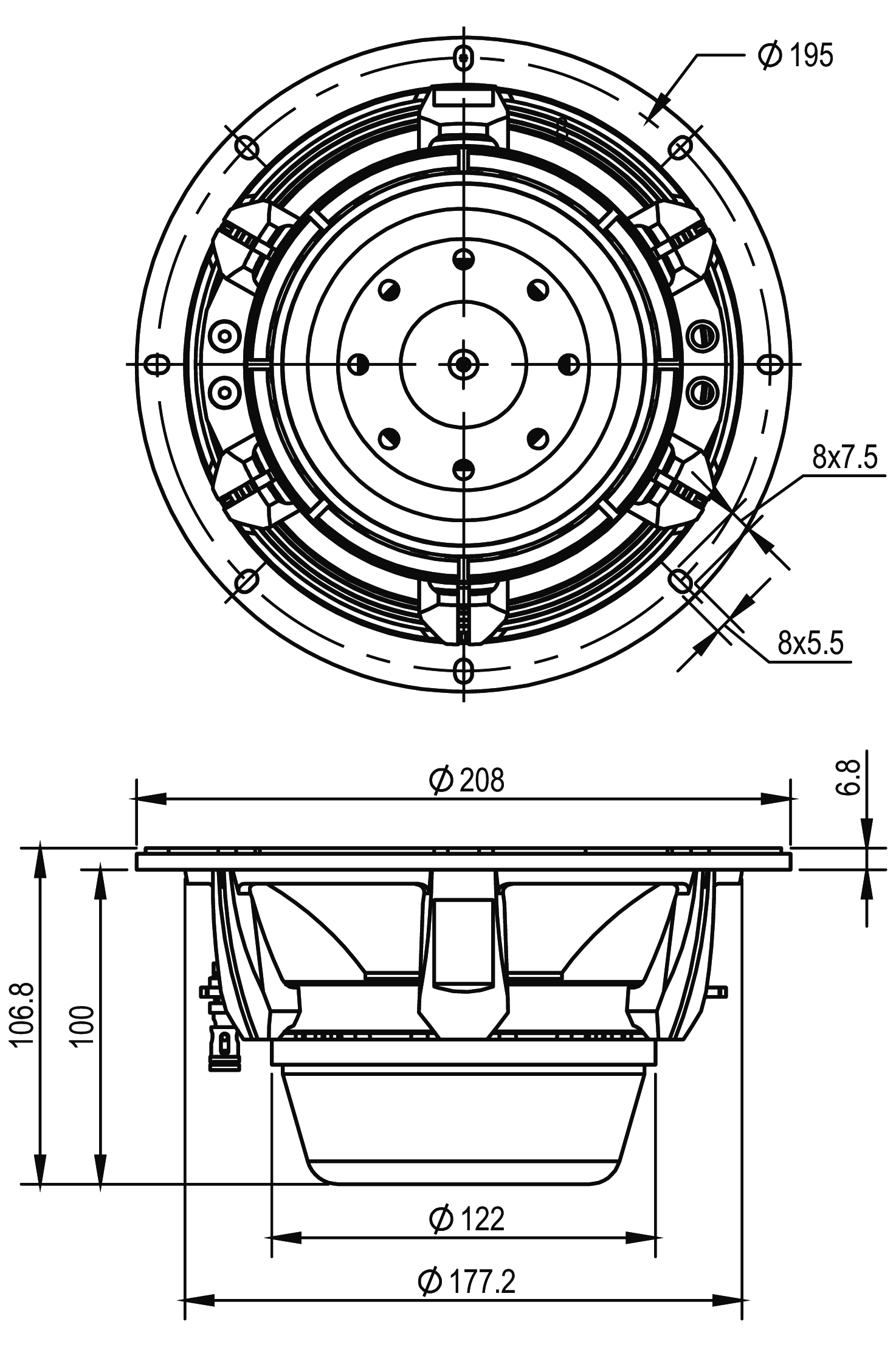

Dimensions
- Nominal diameter 8″
- 208mm
- Overall diameter 208mm
- Baffle cutout diameter 180mm
- Overall depth 107mm
- Flange thickness 7mm
- Mounting depth 100mm
- Volume occupied by the driver 4.4L
- Net weight 3.0kg
- Frame material Aluminium
.png)
.png)
