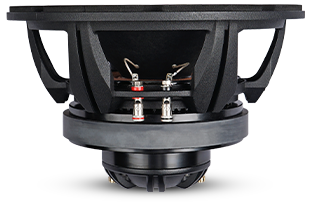

SB Audience ROSSO-10CX300
8Ω
Coaxial
| Nominal diameter | 10″ / 264 mm |
| Resonance | 58 Hz |
| Q factor | 0.45 |
| Sensitivity | 93.7 dB |
| Linear excursion | ± 8.2 mm |
| Program Power | 600 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.7dB

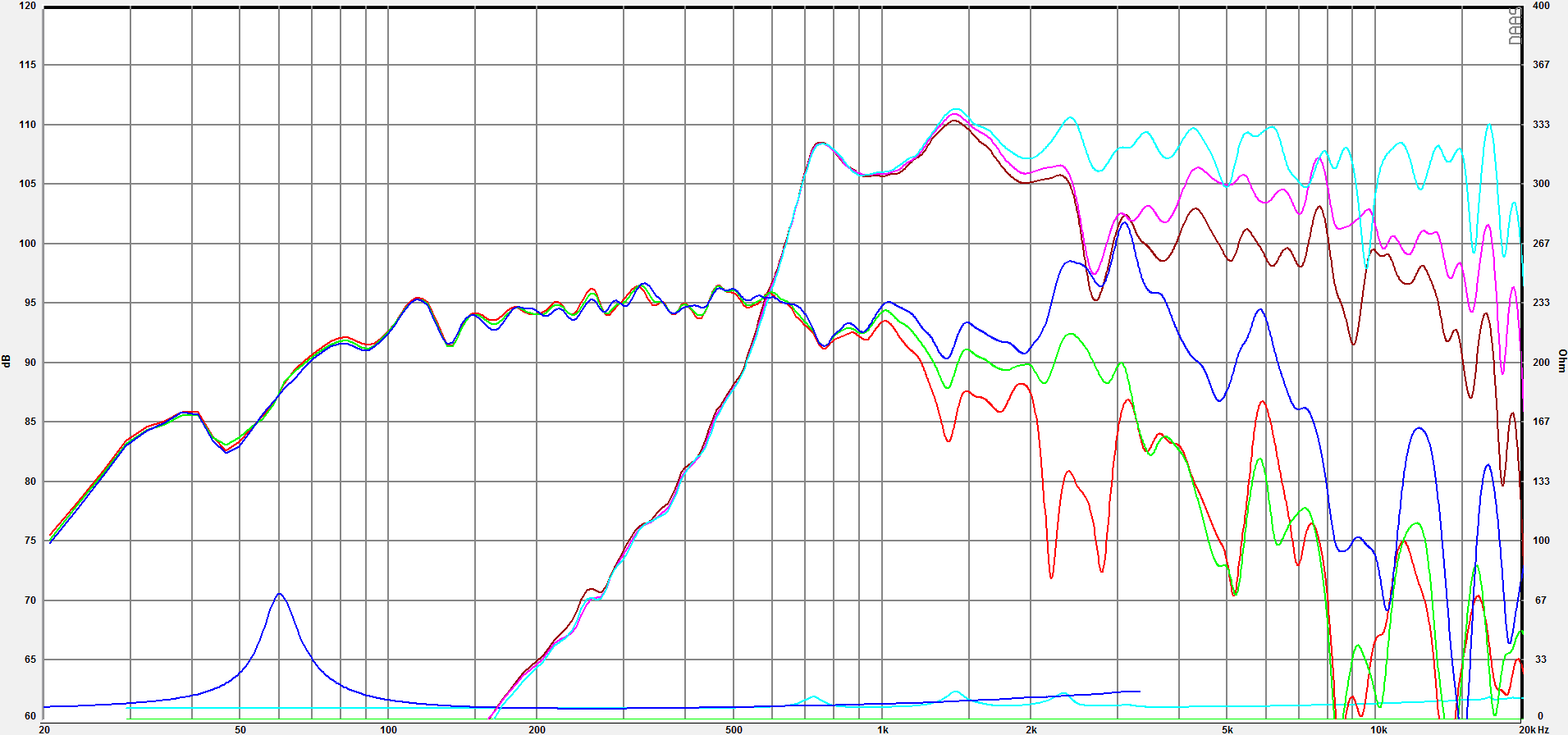

- Frequency response 58 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 58Hz
- Mechanical quality factor QMS 5.52
- Electrical quality factor QES 0.48
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion xmax 8.2mm
- Maximum excursion before damage xlim 15mm
- Air volume displaced at xmax VD 300cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 0.63mH
- VC Diameter 60.6mm
- Winding height HVC 19.1mm
- Winding material Copper Clad Aluminium Wire
- Former material Till
Magnet
- Flux density B 0.94T
- Force factor Bl 11.9N/A
- Motor constant Bl/√RE 5.22N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass MMS 34.9g
- Moving mass (without air load) MMD 29.8g
- Material Paper
Suspensions
- Stiffness KMS 4.76N/mm
- Compliance CMS 210µm/N
- Equivalent volume to the compliance VAS 40.5L
- Mechanical resistance RMS 2.32N·s/m
- Surround material Cloth
Dimensions
- Nominal diameter 10″
- 264mm
- Overall diameter 264mm
- Baffle cutout diameter 232mm
- Overall depth 164mm
- Flange thickness 13mm
- Mounting depth 151mm
- Volume occupied by the driver 3.5L
- Net weight 6.17kg
- Frame material Aluminium die cast
