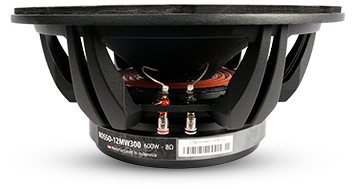

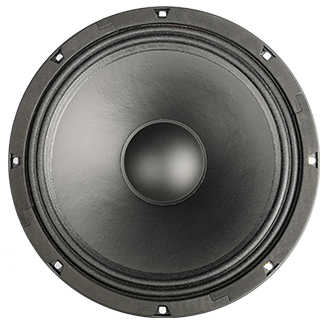

SB Audience ROSSO-12MW300
8Ω
Woofer
| Nominal diameter | 12″ / 323 mm |
| Resonance | 48 Hz |
| Q factor | 0.27 |
| Sensitivity | 96.6 dB |
| Linear excursion | ± 6.7 mm |
| Program Power | 600 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96.6dB
- Frequency response 48 - 5160Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 48Hz
- Mechanical quality factor QMS 12.10
- Electrical quality factor QES 0.28
- Total quality factor QTS 0.27
Large signal parameters
- Maximum linear excursion xmax 6.7mm
- Maximum excursion before damage xlim 11mm
- Air volume displaced at xmax VD 363cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 0.73mH
- VC Diameter 75.6mm
- Winding height HVC 16.7mm
- Winding material Copper clad Aluminium
- Former material Till
Magnet
- Flux density B 1.22T
- Force factor Bl 17.4N/A
- Motor constant Bl/√RE 7.63N/√W
- Air gap height HAG 10mm
- Diameter 190mm
- Material Ferrite
Diaphragm
- Effective diameter 263mm
- Effective area SD 543cm²
- Moving mass MMS 54.3g
- Moving mass (without air load) MMD 45.1g
- Material Paper with silk cotton tree
Suspensions
- Stiffness KMS 4.76N/mm
- Compliance CMS 210µm/N
- Equivalent volume to the compliance VAS 85.9L
- Mechanical resistance RMS 1.34N·s/m
- Surround material Double half roll
Dimensions
- Nominal diameter 12″
- 323mm
- Overall diameter 323mm
- Baffle cutout diameter 289mm
- Overall depth 137mm
- Flange thickness 12mm
- Mounting depth 125mm
- Volume occupied by the driver 2.64L
- Net weight 7.6kg
- Frame material Aluminium die cast
