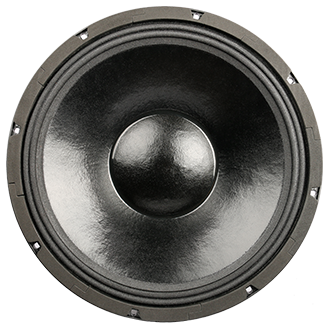

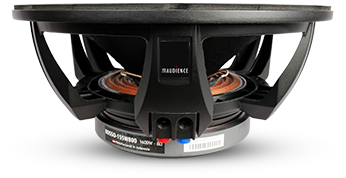

SB Audience ROSSO-15SW800
8Ω
Subwoofer
| Nominal diameter | 15″ / 394 mm |
| Resonance | 45 Hz |
| Q factor | 0.46 |
| Sensitivity | 93.8 dB |
| Linear excursion | ± 11.3 mm |
| Program Power | 1600 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.8dB
- Frequency response 45 - 4600Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 45Hz
- Mechanical quality factor QMS 9.99
- Electrical quality factor QES 0.48
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion xmax 11.3mm
- Maximum excursion before damage xlim 13mm
- Air volume displaced at xmax VD 959cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 1.18mH
- VC Diameter 99.2mm
- Winding height HVC 25.7mm
- Winding material Flat copper clad aluminium
- Former material Till (Fiber glass)
Magnet
- Flux density B 1.03T
- Force factor Bl 21.1N/A
- Motor constant Bl/√RE 9.25N/√W
- Air gap height HAG 10mm
- Diameter 220mm
- Material Ferrite
Diaphragm
- Effective diameter 329mm
- Effective area SD 850cm²
- Moving mass MMS 144g
- Moving mass (without air load) MMD 126g
- Material Paper
Suspensions
- Stiffness KMS 11.1N/mm
- Compliance CMS 90µm/N
- Equivalent volume to the compliance VAS 87.6L
- Mechanical resistance RMS 4.1N·s/m

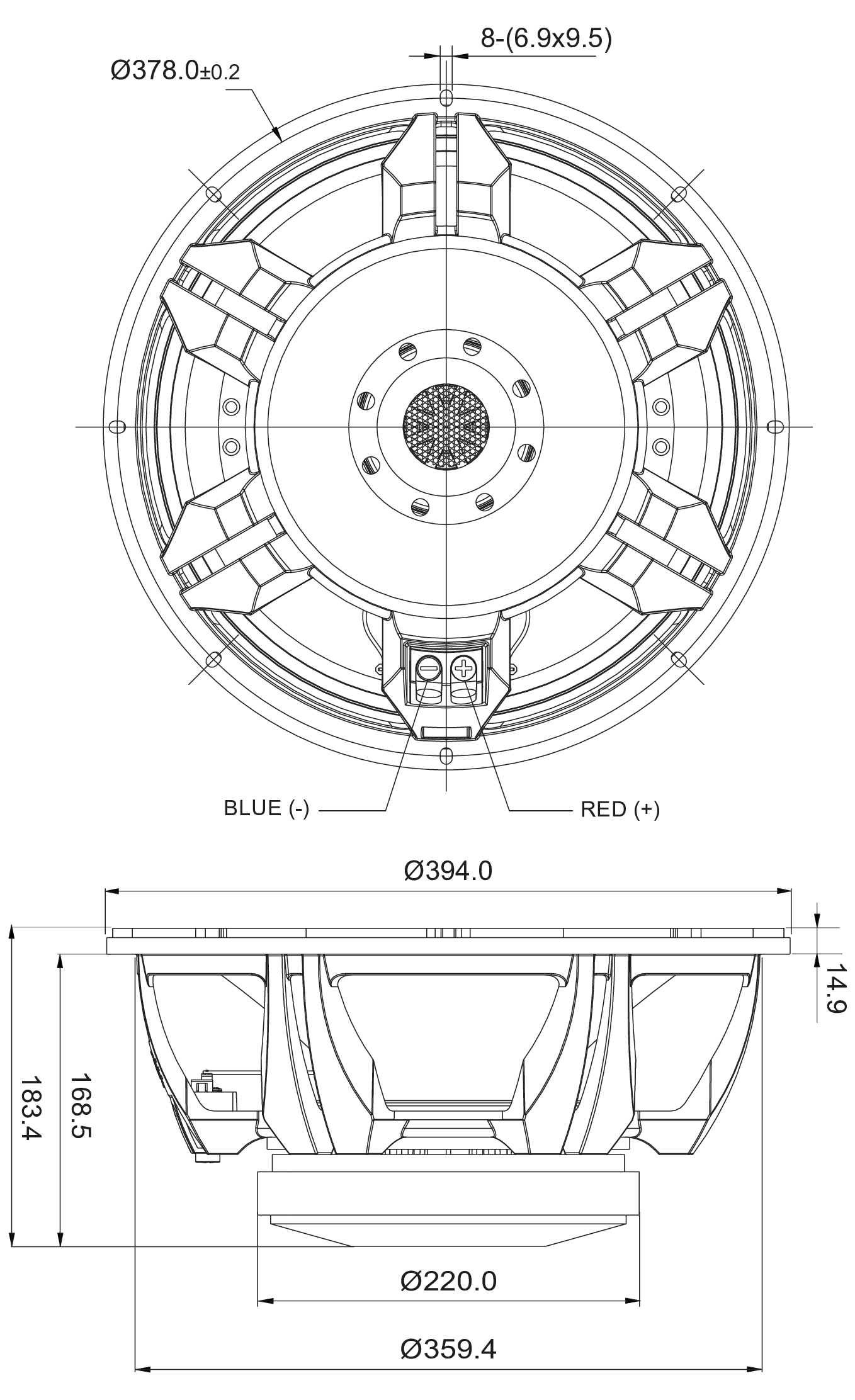

Dimensions
- Nominal diameter 15″
- 394mm
- Overall diameter 394mm
- Baffle cutout diameter 361mm
- Overall depth 183mm
- Flange thickness 15mm
- Mounting depth 169mm
- Volume occupied by the driver 5.53L
- Net weight 11.63kg
- Frame material Cast aluminium
