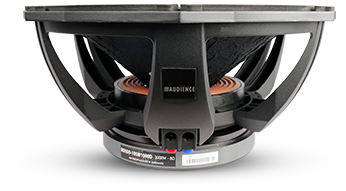

SB Audience ROSSO-18SW1000D
8Ω
Subwoofer
| Nominal diameter | 18″ / 483 mm |
| Resonance | 35 Hz |
| Q factor | 0.46 |
| Sensitivity | 93.2 dB |
| Linear excursion | ± 13.7 mm |
| Program Power | 2000 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.2dB
- Frequency response 35 - 3400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 10.13
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion xmax 13.7mm
- Maximum excursion before damage xlim 17.5mm
- Air volume displaced at xmax VD 1718cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 1.64mH
- VC Diameter 113mm
- Winding height HVC 33.2mm
- Winding material AISV copper wire
- Former material FIBSV
Magnet
- Flux density B 0.93T
- Force factor Bl 25.8N/A
- Motor constant Bl/√RE 11.2N/√W
- Air gap height HAG 14mm
- Material Ferrite
Diaphragm
- Effective diameter 400mm
- Effective area SD 1257cm²
- Moving mass MMS 276g
- Moving mass (without air load) MMD 244g
- Material Proprietary cone paper material with silk cotton tree
Suspensions
- Stiffness KMS 14.3N/mm
- Compliance CMS 70µm/N
- Equivalent volume to the compliance VAS 164L
- Mechanical resistance RMS 6.05N·s/m
- Surround material Triple roll
Dimensions
- Nominal diameter 18″
- 483mm
- Overall diameter 483mm
- Baffle cutout diameter 428mm
- Overall depth 235mm
- Flange thickness 17mm
- Mounting depth 219mm
- Volume occupied by the driver 9.46L
- Net weight 17.0kg
- Frame material Aluminium die cast
.png)
.png)
