SB Audience ROSSO-6MW150D
8Ω
Woofer
| Nominal diameter | 6″ / 163 mm |
| Resonance | 66 Hz |
| Q factor | 0.32 |
| Sensitivity | 90.6 dB |
| Linear excursion | ± 5.2 mm |
| Program Power | 300 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 90.6dB

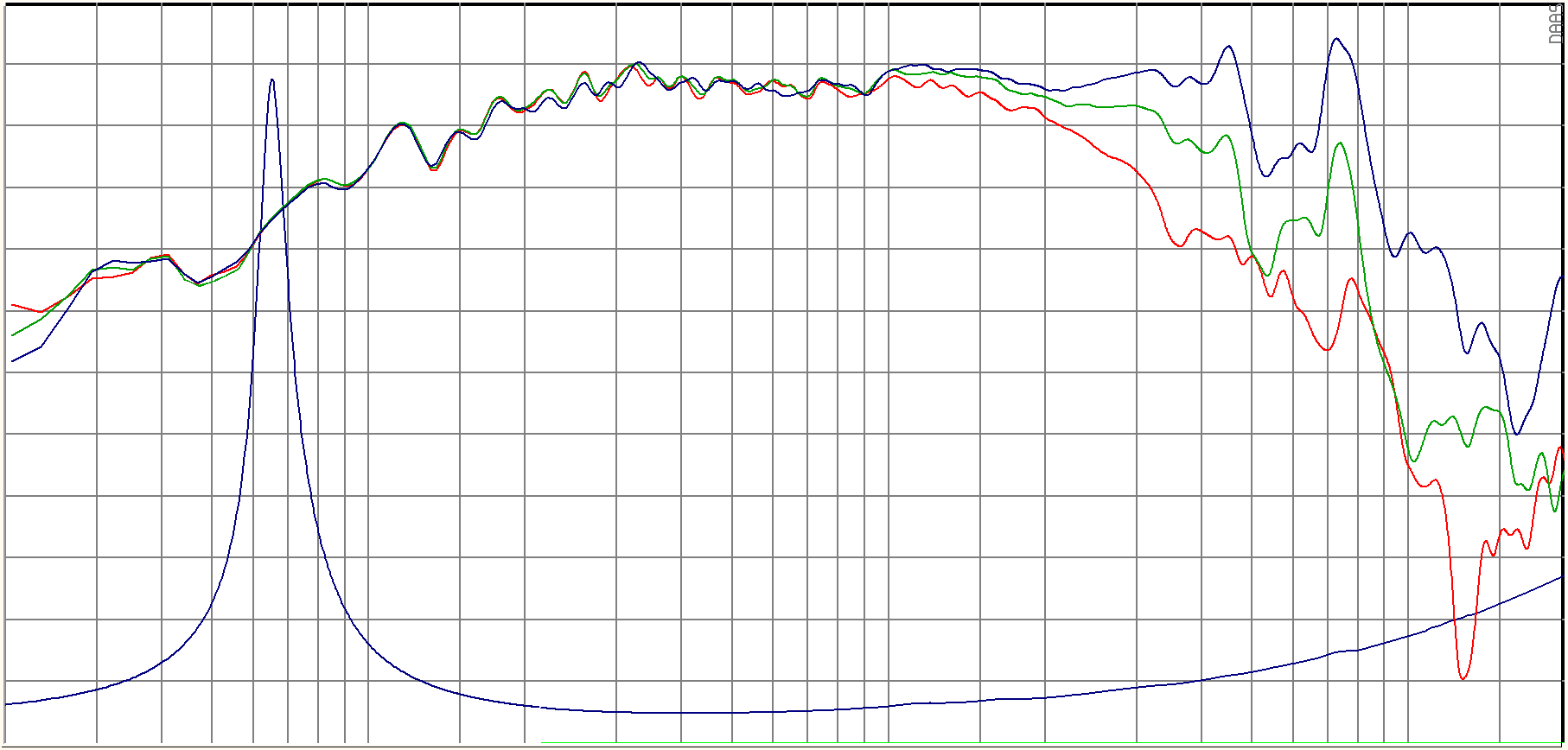

- Frequency response 66 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 66Hz
- Mechanical quality factor QMS 9.24
- Electrical quality factor QES 0.33
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion xmax 5.2mm
- Maximum excursion before damage xlim 8mm
- Air volume displaced at xmax VD 76cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.39mH
- VC Diameter 49.5mm
- Winding height HVC 12.2mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.31T
- Force factor Bl 11.6N/A
- Motor constant Bl/√RE 4.99N/√W
- Air gap height HAG 5mm
- Diameter 130mm
- Material Ferrite
Diaphragm
- Effective diameter 136mm
- Effective area SD 145cm²
- Moving mass MMS 19.4g
- Moving mass (without air load) MMD 18.2g
- Material Paper / Manila pulp / Graphite
Suspensions
- Stiffness KMS 3.33N/mm
- Compliance CMS 300µm/N
- Equivalent volume to the compliance VAS 8.8L
- Mechanical resistance RMS 0.88N·s/m
- Surround material Rubber

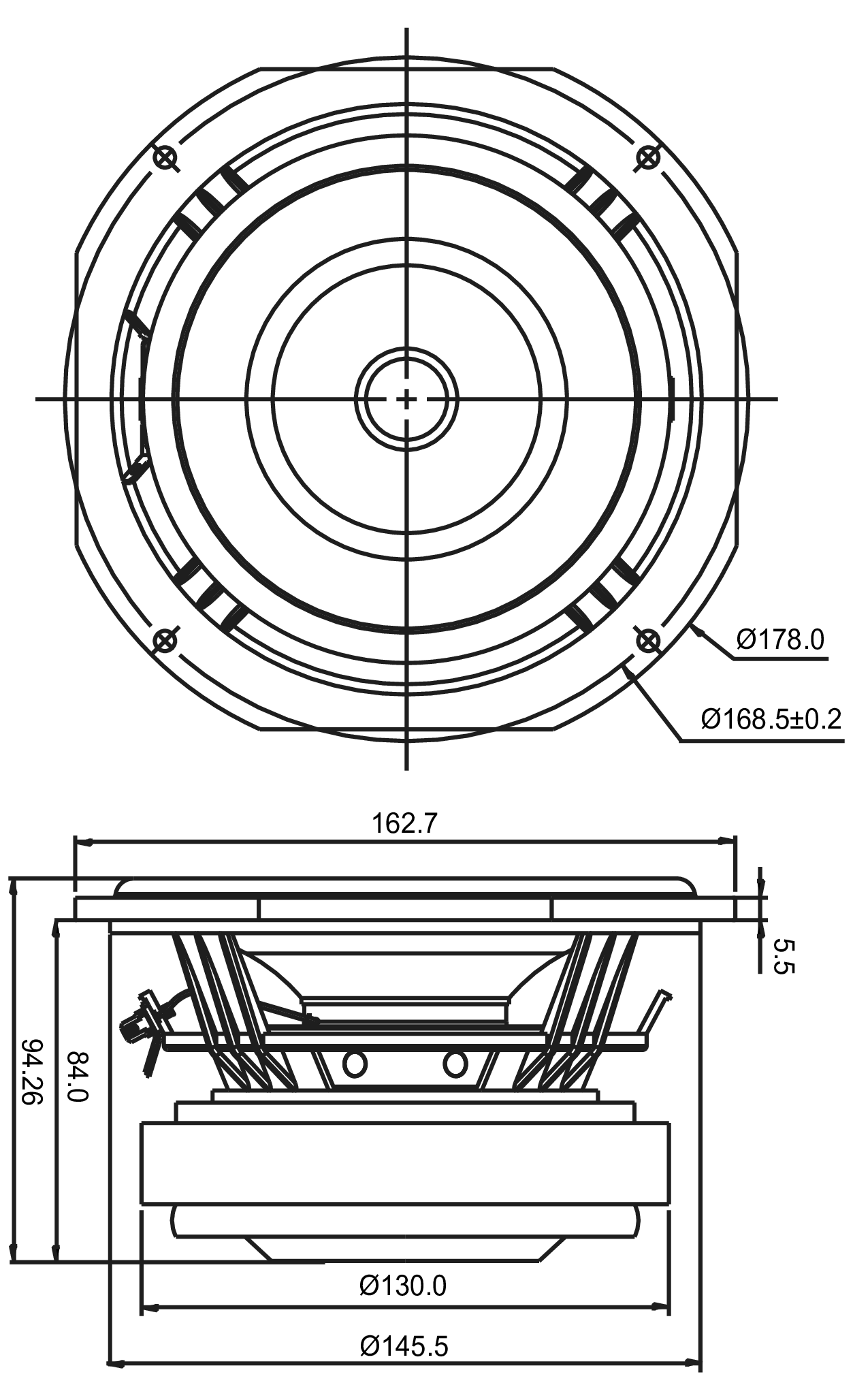

Dimensions
- Nominal diameter 6″
- 163mm
- Overall diameter 163mm
- Baffle cutout diameter 148mm
- Overall depth 94mm
- Flange thickness 6mm
- Mounting depth 84mm
- Volume occupied by the driver 0.92L
- Net weight 2.62kg
- Frame material Aluminium die cast
