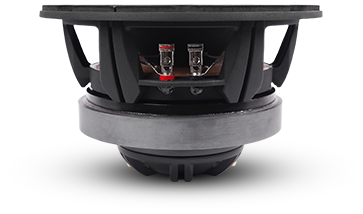

SB Audience ROSSO-8CX250
8Ω
Coaxial
| Nominal diameter | 8″ / 208 mm |
| Resonance | 70 Hz |
| Q factor | 0.32 |
| Sensitivity | 92.9 dB |
| Linear excursion | ± 5.4 mm |
| Program Power | 500 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.9dB
- Frequency response 70 - 19400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 70Hz
- Mechanical quality factor QMS 2.19
- Electrical quality factor QES 0.37
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion xmax 5.4mm
- Maximum excursion before damage xlim 12mm
- Air volume displaced at xmax VD 114cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 0.72mH
- VC Diameter 49.5mm
- Winding height HVC 13.4mm
- Winding material EISVCAW
- Former material Till
Magnet
- Flux density B 0.88T
- Force factor Bl 11.4N/A
- Motor constant Bl/√RE 4.95N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 164mm
- Effective area SD 211cm²
- Moving mass MMS 20.8g
- Moving mass (without air load) MMD 18.5g
- Material Paper (sisal and manila fibers)
Suspensions
- Stiffness KMS 4N/mm
- Compliance CMS 250µm/N
- Equivalent volume to the compliance VAS 15.8L
- Mechanical resistance RMS 4.17N·s/m
- Surround material Cloth triple roll
- Spider material Single constant height waves

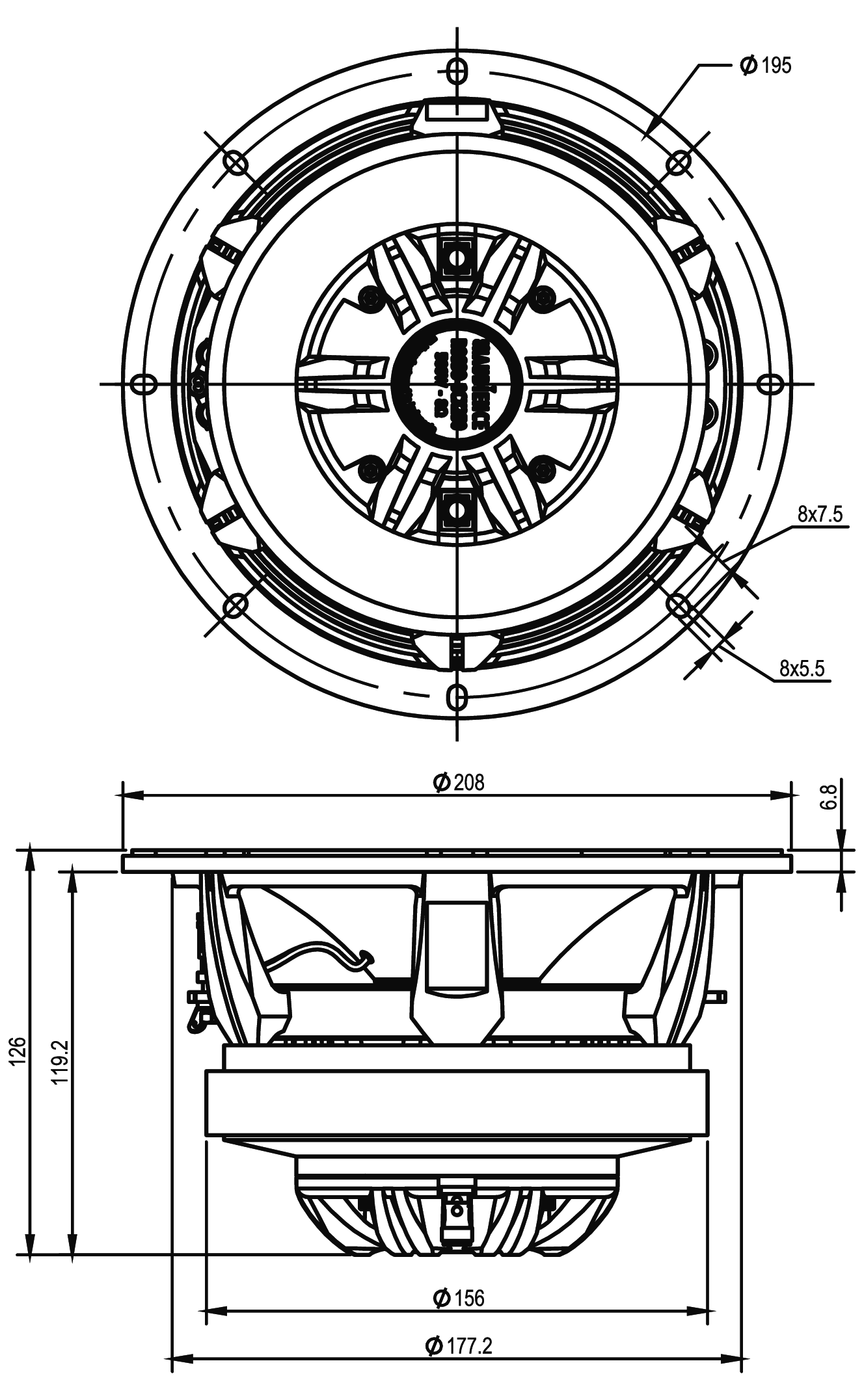

Dimensions
- Nominal diameter 8″
- 208mm
- Overall diameter 208mm
- Baffle cutout diameter 179mm
- Overall depth 126mm
- Flange thickness 7mm
- Mounting depth 119mm
- Volume occupied by the driver 2L
- Net weight 4.32kg
- Frame material Aluminium die cast
