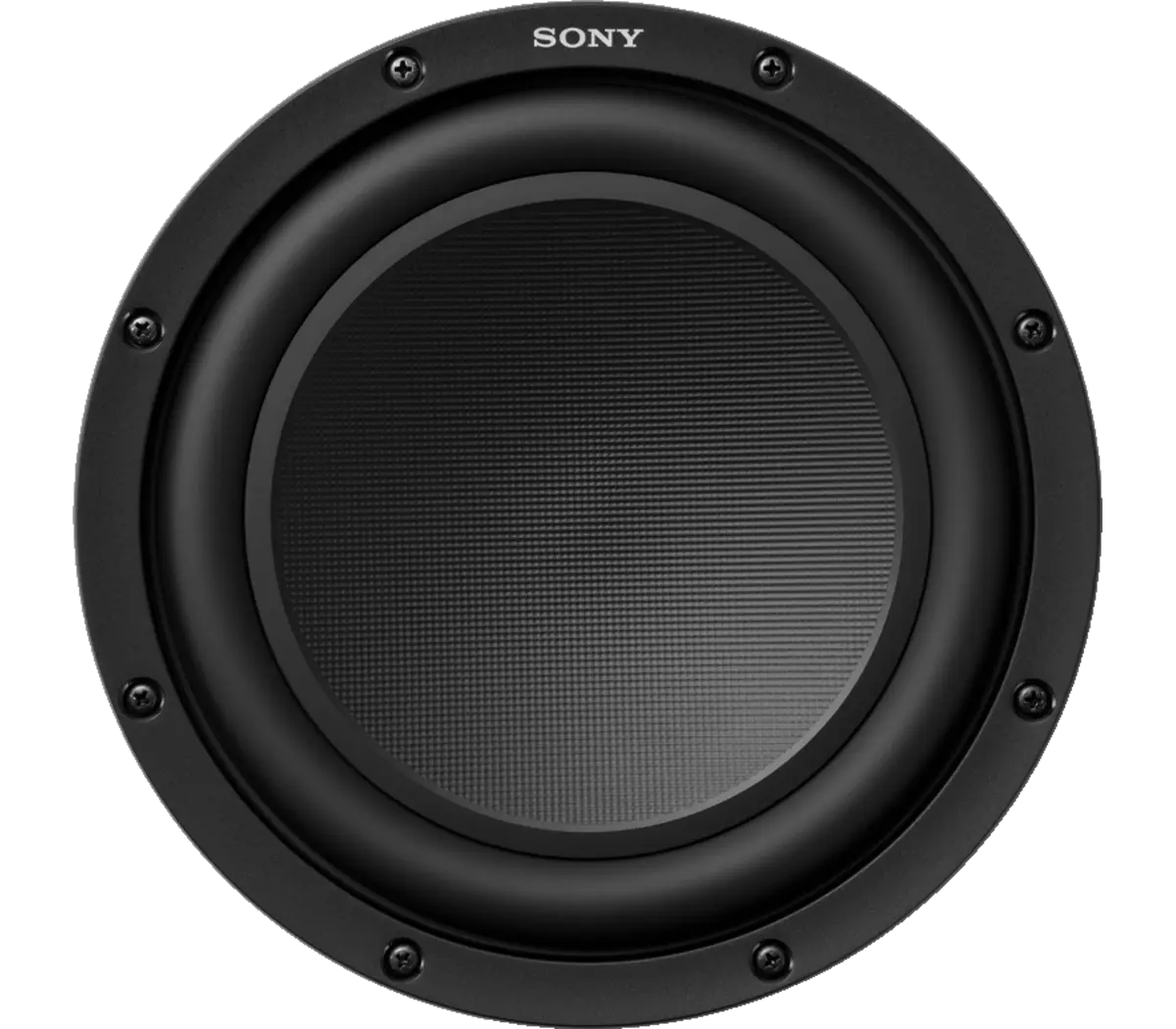

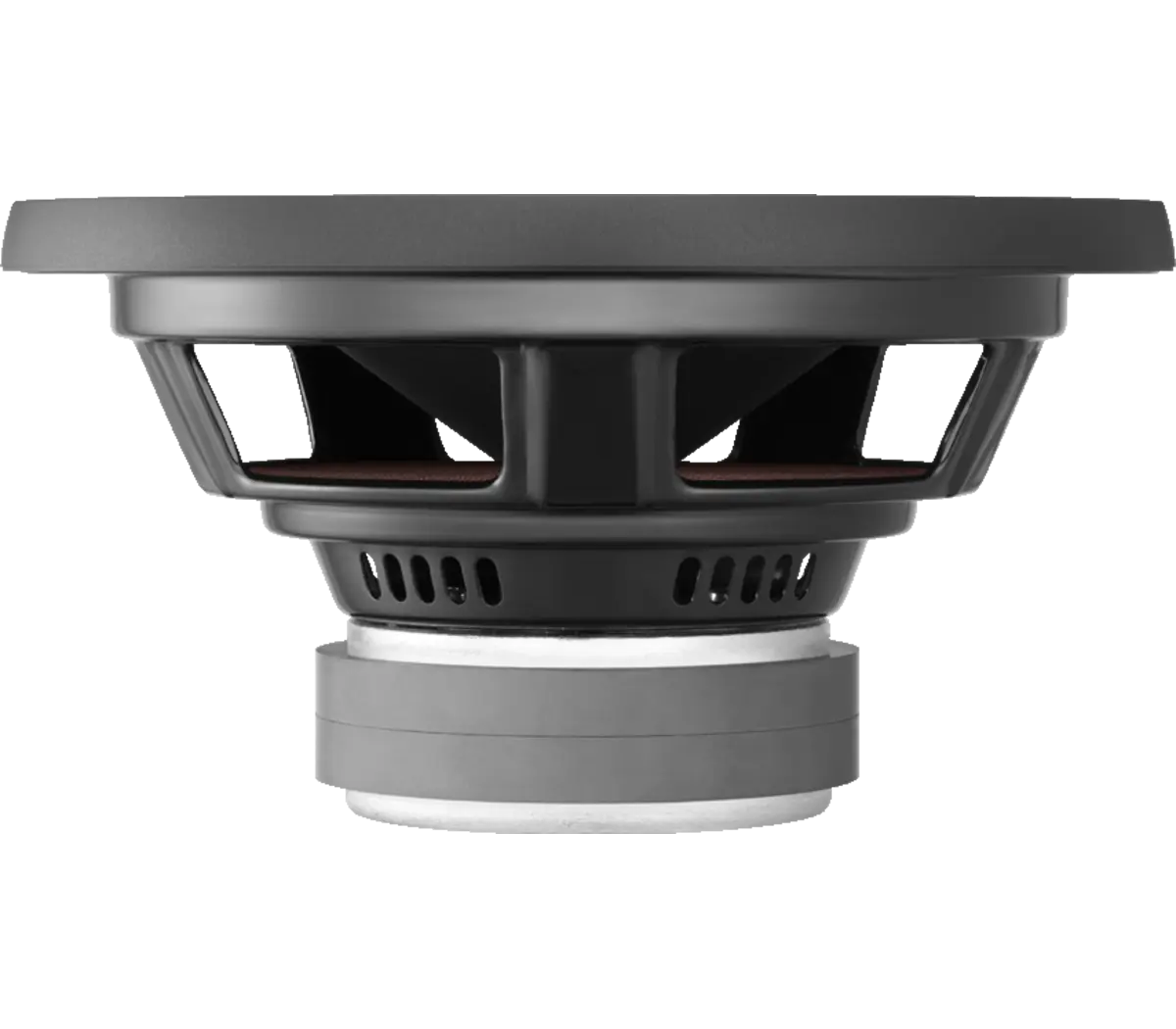

SONY XS-W104GS
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 30.9 Hz |
| Q factor | 0.51 |
| Sensitivity | 85.3 dB |
| Linear excursion | ± 7.6 mm |
| Program Power | 700 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.3dB
- Frequency response 27 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30.9Hz
- Mechanical quality factor QMS 7.55
- Electrical quality factor QES 0.54
- Total quality factor QTS 0.51
Large signal parameters
- Maximum linear excursion xmax 7.6mm
- Air volume displaced at xmax VD 263cm³
- Power handling P 350W
- Program power Pmax 700W
- Peak power Ppeak 1500W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.5Ω
- Inductance (1kHz) LE 3.37mH
Magnet
- Force factor Bl 12.5N/A
- Motor constant Bl/√RE 6.66N/√W
- Diameter 130mm
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 123g
- Moving mass (without air load) MMD 119g
Suspensions
- Stiffness KMS 4.65N/mm
- Compliance CMS 215µm/N
- Equivalent volume to the compliance VAS 36.5L
- Mechanical resistance RMS 3.17N·s/m

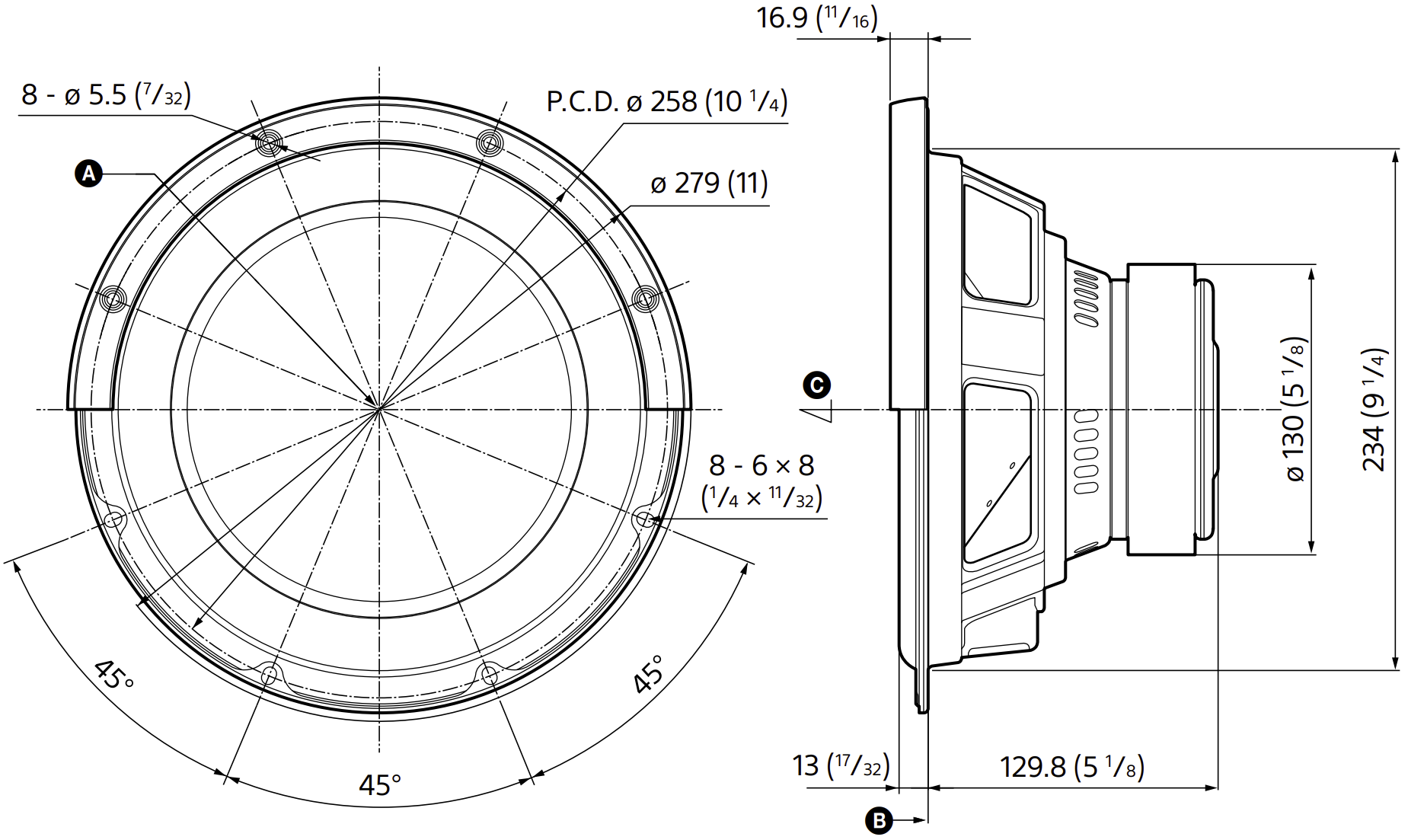

Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 279mm
- Baffle cutout diameter 234mm
- Overall depth 143mm
- Flange thickness 13mm
- Mounting depth 130mm
- Volume occupied by the driver (estimated) 157L
- Net weight 3800.0kg
