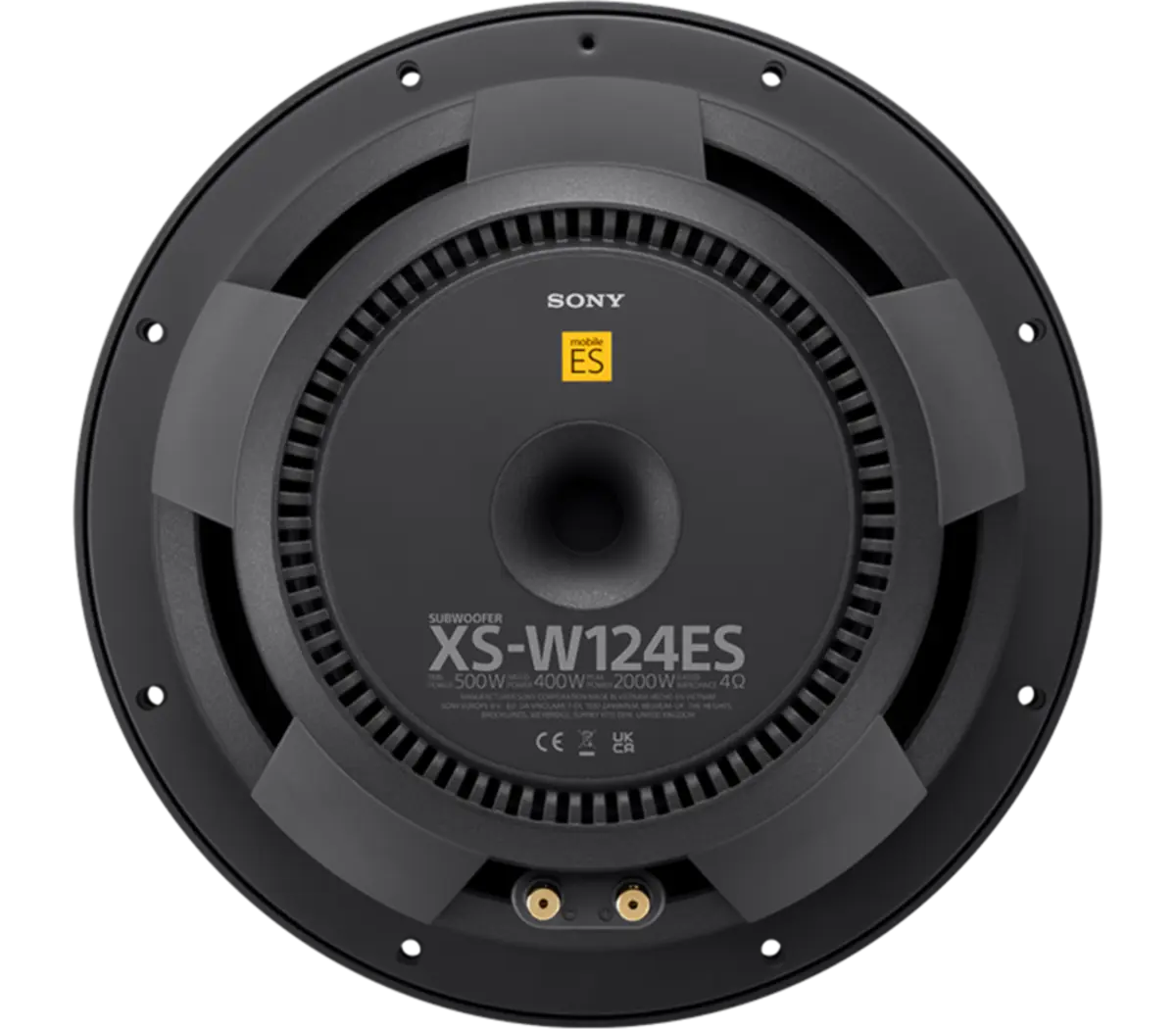

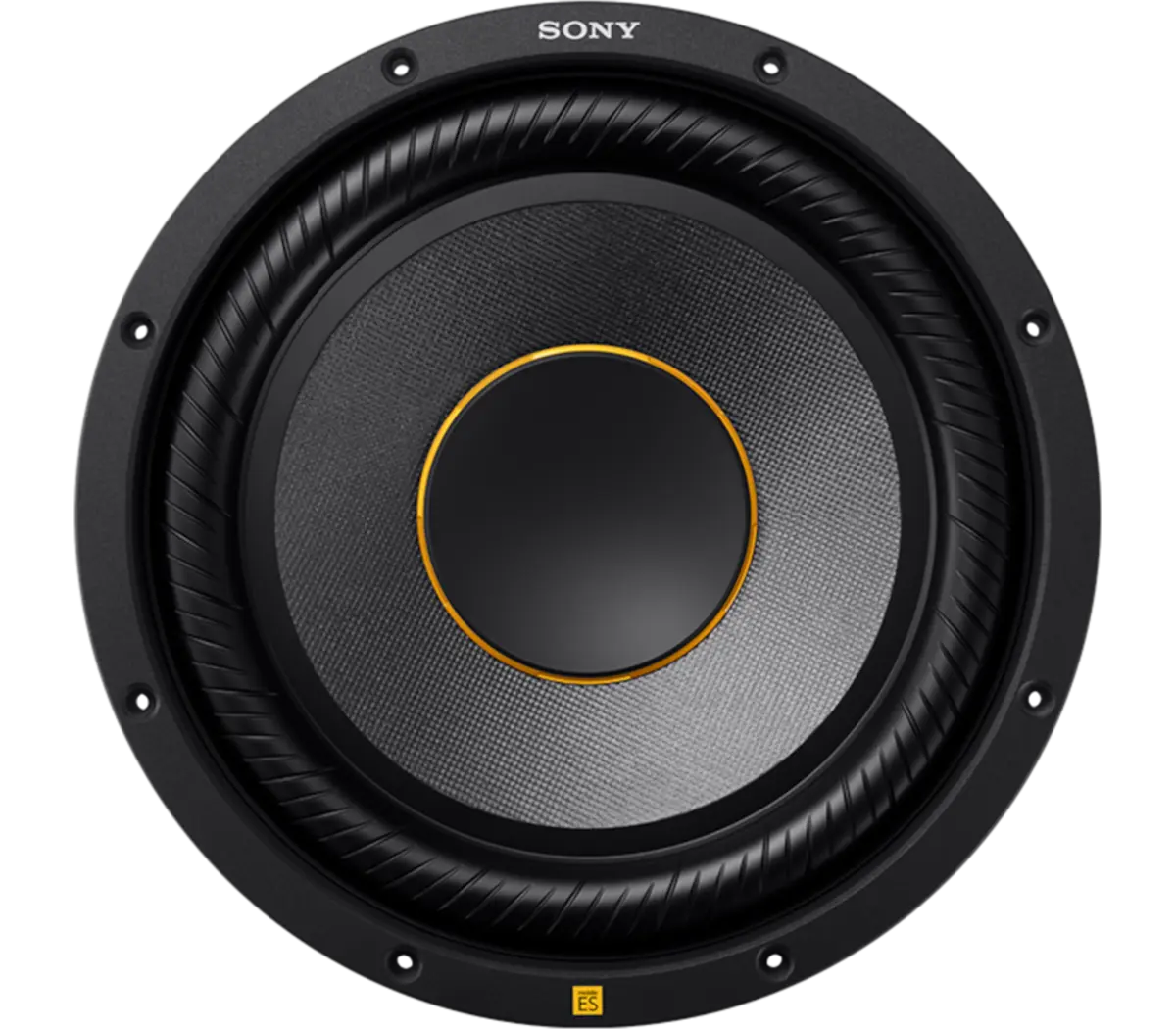

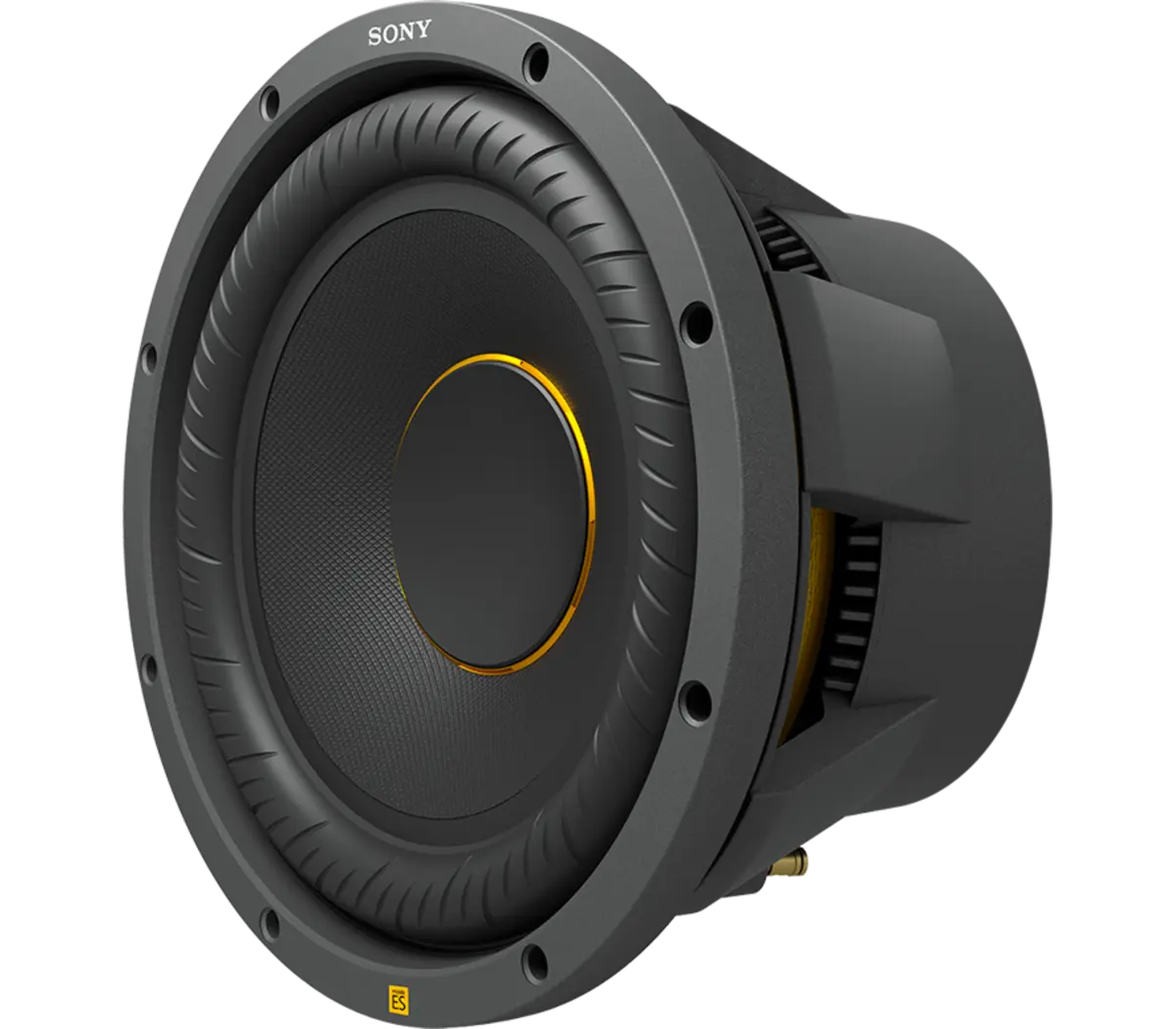

SONY XS-W124ES
2Ω
4Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 35.8 Hz |
| Q factor | 0.77 |
| Sensitivity | 85.4 dB |
| Linear excursion | ± 8.9 mm |
| Program Power | 1000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.4dB
- Frequency response 25 - 700Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35.8Hz
- Mechanical quality factor QMS 8.49
- Electrical quality factor QES 0.84
- Total quality factor QTS 0.77
Large signal parameters
- Maximum linear excursion xmax 8.9mm
- Air volume displaced at xmax VD 436cm³
- Power handling P 500W
- Program power Pmax 1000W
- Peak power Ppeak 2000W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.9Ω
- Inductance (1kHz) LE 2.03mH
Magnet
- Force factor Bl 14.2N/A
- Motor constant Bl/√RE 7.24N/√W
Diaphragm
- Effective diameter 250mm
- Effective area SD 490cm²
- Moving mass MMS 196g
- Moving mass (without air load) MMD 188g
Suspensions
- Stiffness KMS 9.9N/mm
- Compliance CMS 101µm/N
- Equivalent volume to the compliance VAS 34.4L
- Mechanical resistance RMS 5.19N·s/m
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 332mm
- Baffle cutout diameter 281mm
- Overall depth 165mm
- Flange thickness 16mm
- Mounting depth 149mm
- Volume occupied by the driver (estimated) 244L
- Net weight 5500.0kg
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
