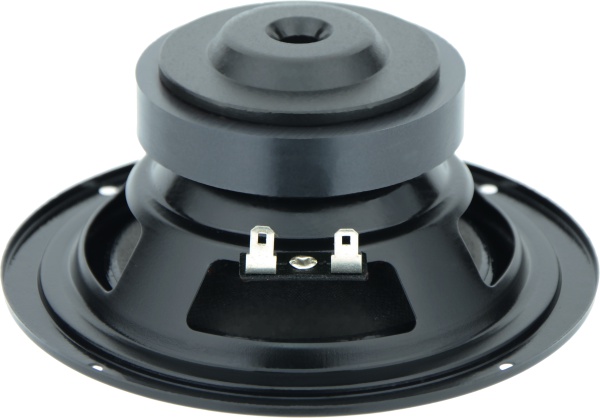

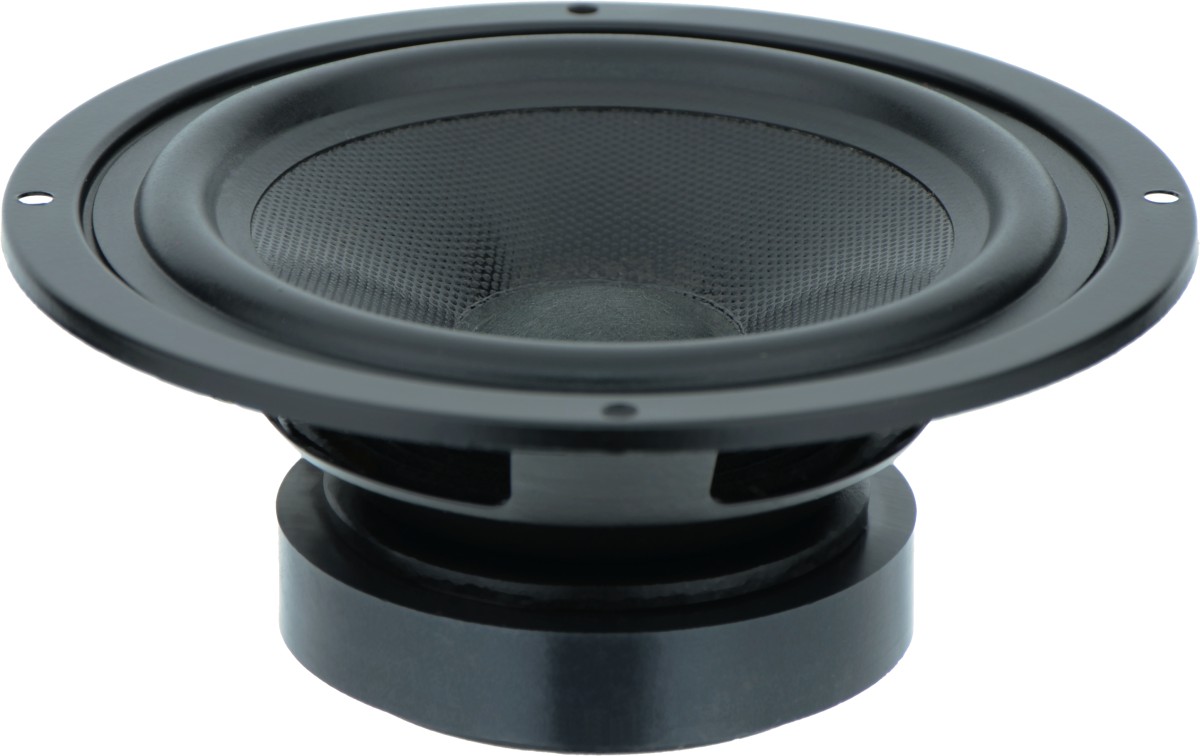

STX M.15.150.8.MCX
8Ω
Mid-range
| Nominal diameter | 6″ / 150 mm |
| Resonance | 70 Hz |
| Q factor | 0.61 |
| Sensitivity | 86.5 dB |
| Linear excursion | ± 2 mm |
| Program power | 150 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.5dB

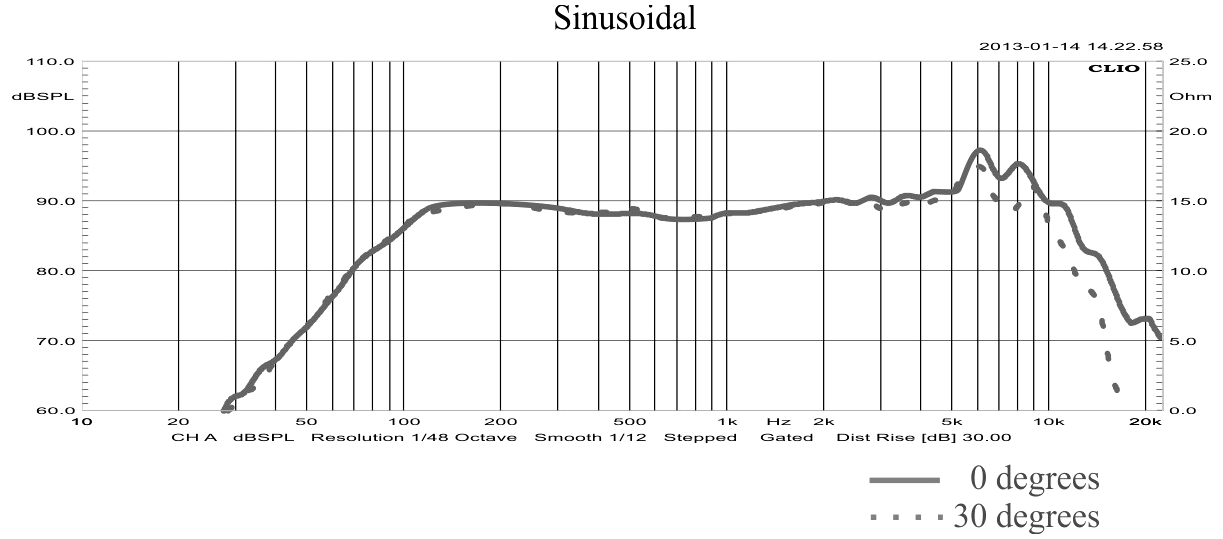

- Frequency response 150 - 15000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 70Hz
- Mechanical quality factor QMS 2.38
- Electrical quality factor QES 0.83
- Total quality factor QTS 0.61
Large signal parameters
- Maximum linear excursion (one way) xmax 2mm
- Maximum excursion before damage xlim 5mm
- Air volume displaced at xmax VD 17cm³
- Power handling P 75W
- Program power Pmax 150W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.0Ω
- Inductance (1kHz) LE 0.15mH
- VC Diameter 25mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor Bl 4.45N/A
- Motor constant Bl/√RE 1.99N/√W
- Material Ferrite
Diaphragm
- Effective diameter 105mm
- Effective area SD 87cm²
- Moving mass (including air load) MMS 7.6g
- Moving mass MMD 6.9g
- Material Modified cellulose
Suspensions
- Stiffness KMS 1.39N/mm
- Compliance CMS 720µm/N
- Equivalent volume to the compliance VAS 7.6L
- Mechanical resistance RMS 1.4N·s/m

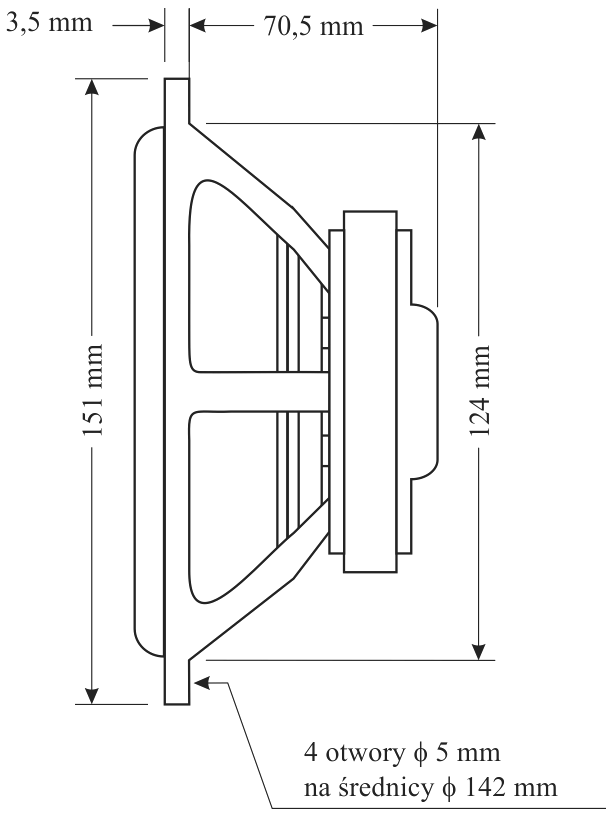

Dimensions
- Nominal diameter 6″
- 150mm
- Overall diameter 151mm
- Baffle cutout diameter 124mm
- Overall depth 74mm
- Volume occupied by the driver (estimated) 0.3L
- Net weight 0.8kg
- Frame material Steel
.webp)
.webp)
