STX W.20.80.8.MC
4Ω
8Ω

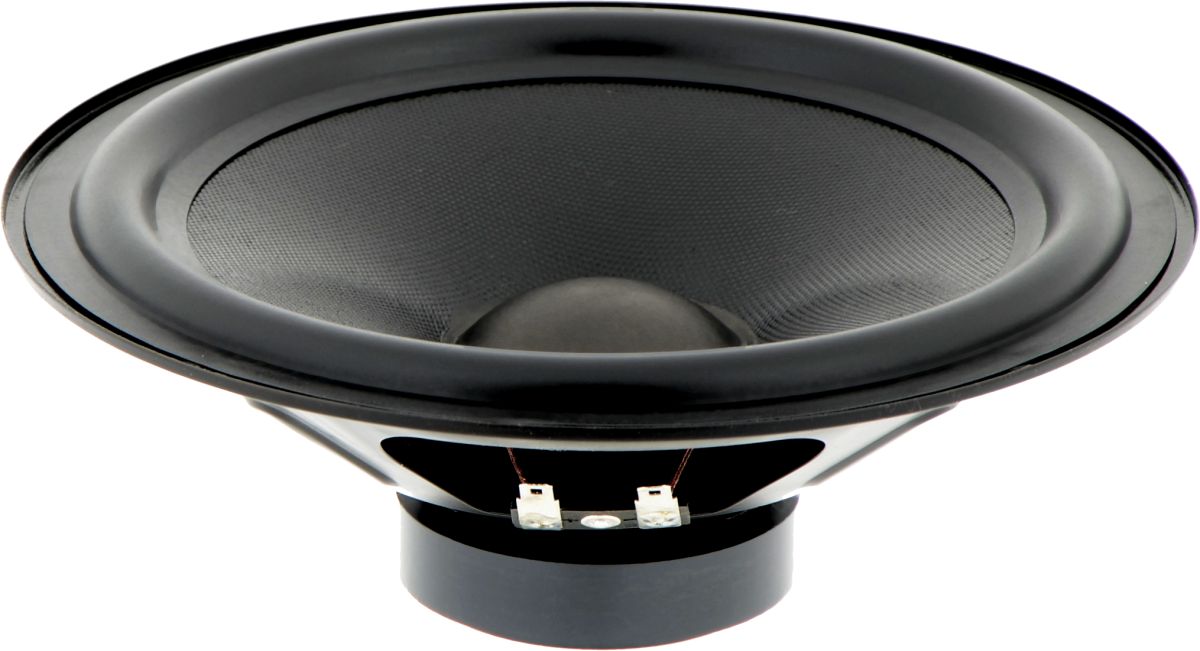

Woofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 32 Hz |
| Q factor | 0.68 |
| Sensitivity | 86.4 dB |
| Linear excursion | ± 3.5 mm |
| Program power | 80 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.4dB

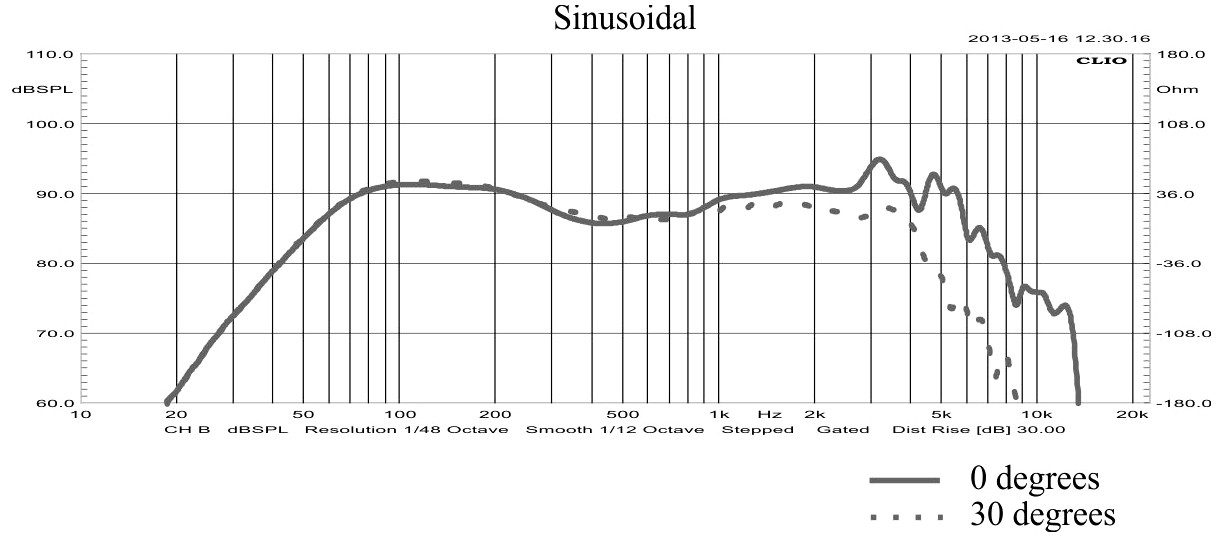

- Frequency response 30 - 10000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32Hz
- Mechanical quality factor QMS 2.95
- Electrical quality factor QES 0.87
- Total quality factor QTS 0.68
Large signal parameters
- Maximum linear excursion (one way) xmax 3.5mm
- Maximum excursion before damage xlim 10mm
- Air volume displaced at xmax VD 75cm³
- Power handling P 60W
- Program power Pmax 80W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.0Ω
- Inductance (1kHz) LE 0.4mH
- VC Diameter 25mm
- Winding material Drut termospiekalny miedziany
- Former material Aluminium
Magnet
- Force factor Bl 4.6N/A
- Motor constant Bl/√RE 2.06N/√W
- Material Ferryt
Diaphragm
- Effective diameter 165mm
- Effective area SD 214cm²
- Moving mass (including air load) MMS 18.6g
- Moving mass MMD 16.3g
- Material Celuloza modyfikowana
Suspensions
- Stiffness KMS 0.725N/mm
- Compliance CMS 1380µm/N
- Equivalent volume to the compliance VAS 88L
- Mechanical resistance RMS 1.27N·s/m

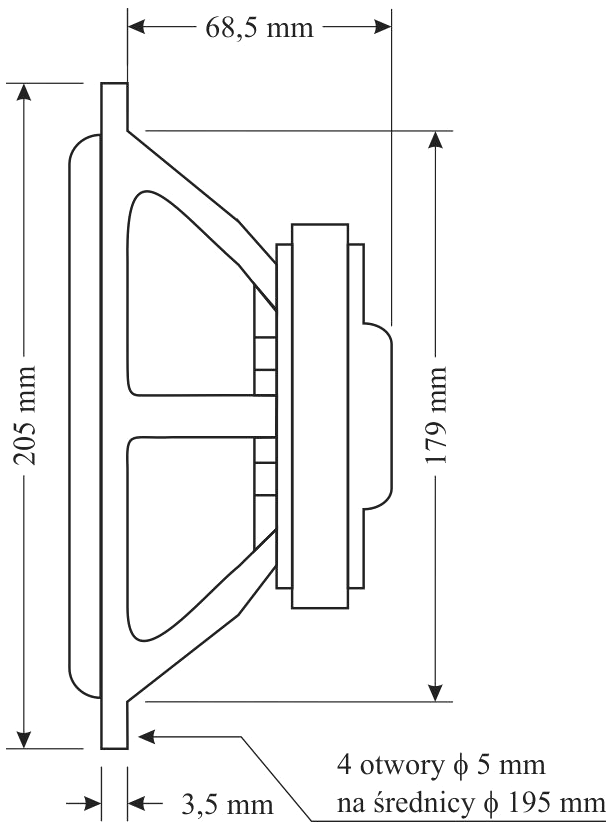

Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 205mm
- Baffle cutout diameter 179mm
- Overall depth 72mm
- Volume occupied by the driver (estimated) 0.33L
- Net weight 0.7kg
- Frame material Stal
