STX W.22.200.8.MCX_v4
8Ω
Woofer
| Nominal diameter | 8″ / 220 mm |
| Resonance | 26 Hz |
| Q factor | 0.39 |
| Sensitivity | 87.8 dB |
| Linear excursion | ± 5 mm |
| Program power | 200 W |

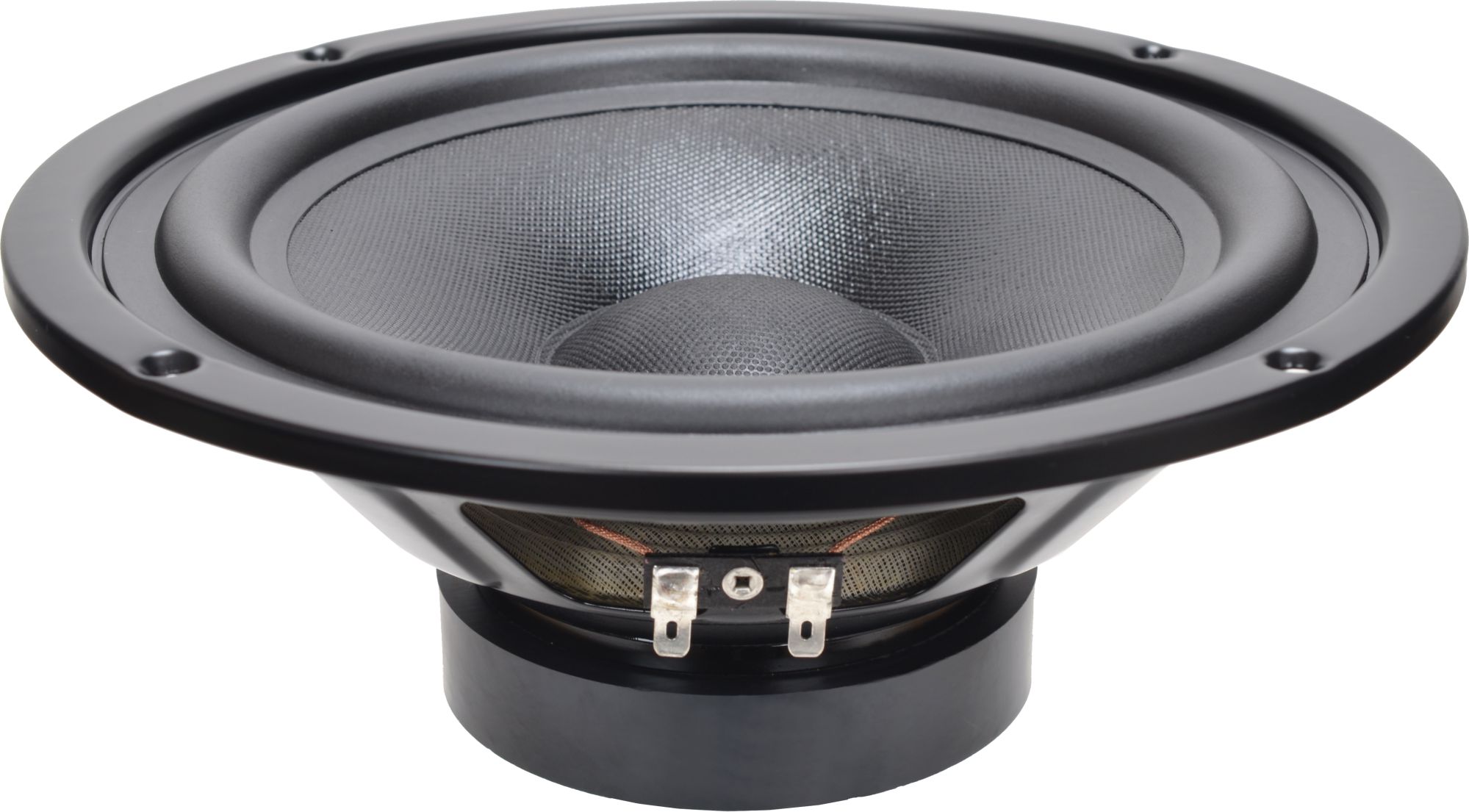

.jpg)

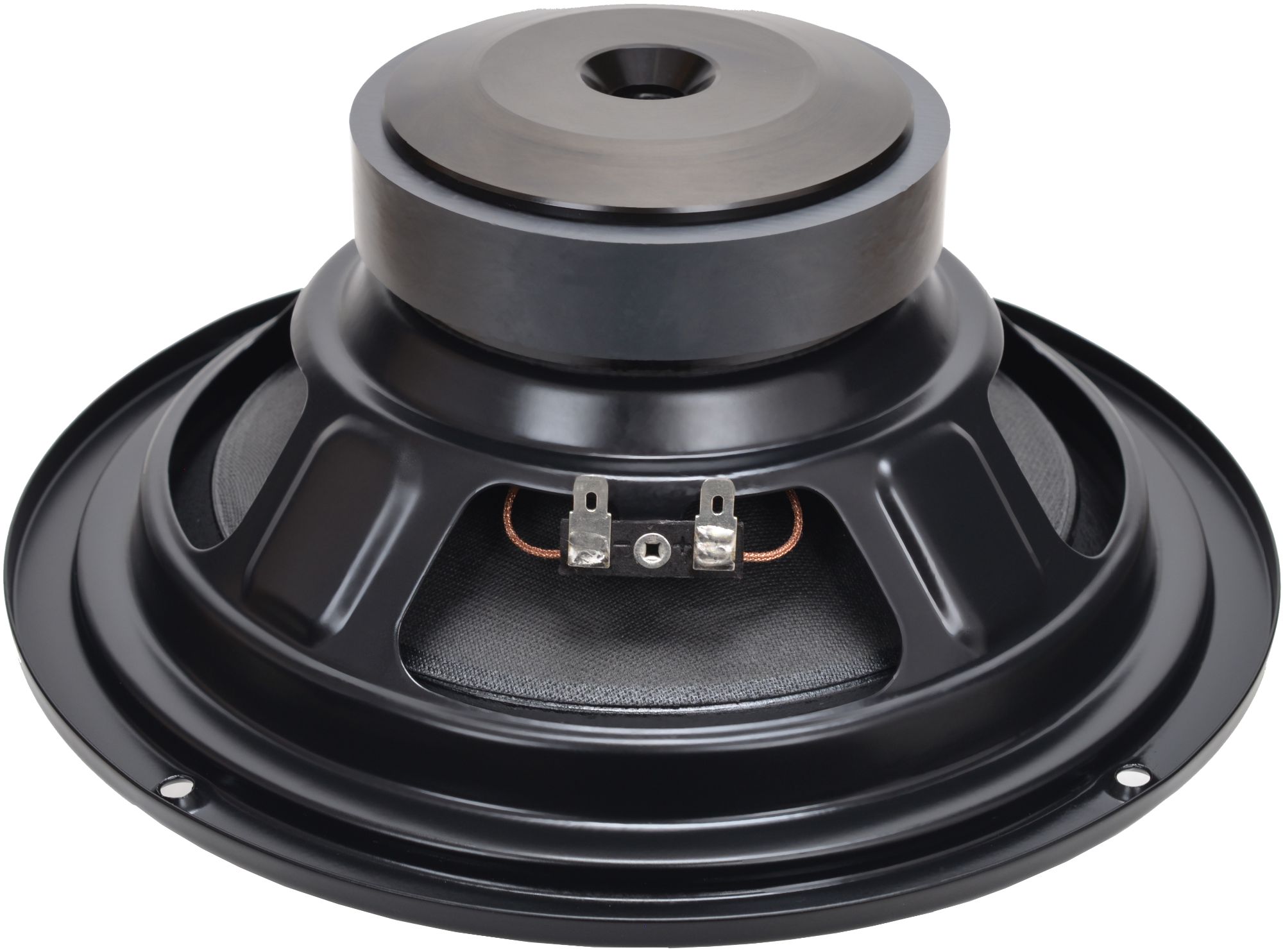

.jpg)
Specifications

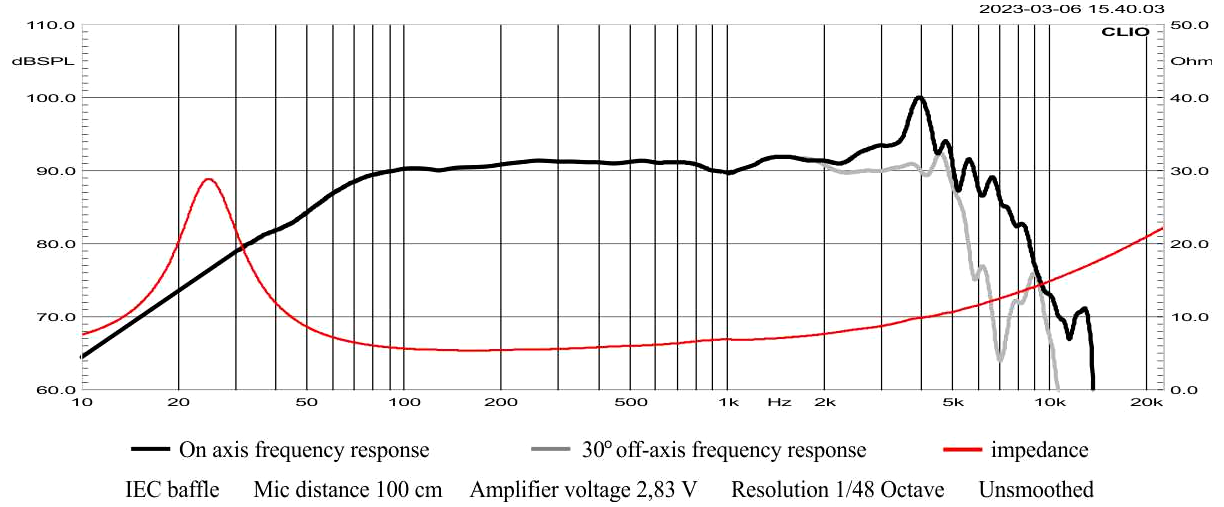

- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.8dB
- Frequency response 40 - 6000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 26Hz
- Mechanical quality factor QMS 2.45
- Electrical quality factor QES 0.46
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 5mm
- Maximum excursion before damage xlim 11mm
- Air volume displaced at xmax VD 107cm³
- Power handling P 100W
- Program power Pmax 200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.0Ω
- Inductance (1kHz) LE 0.29mH
- VC Diameter 35mm
- Winding material Drut termospiekalny miedziany
- Former material Aluminium
Magnet
- Force factor Bl 6.1N/A
- Motor constant Bl/√RE 2.73N/√W
- Material Ferryt
Diaphragm
- Effective diameter 165mm
- Effective area SD 214cm²
- Moving mass (including air load) MMS 21.7g
- Moving mass MMD 19.2g
- Material Modyfikowana celuloza
Suspensions
- Stiffness KMS 0.559N/mm
- Compliance CMS 1790µm/N
- Equivalent volume to the compliance VAS 117L
- Mechanical resistance RMS 1.45N·s/m

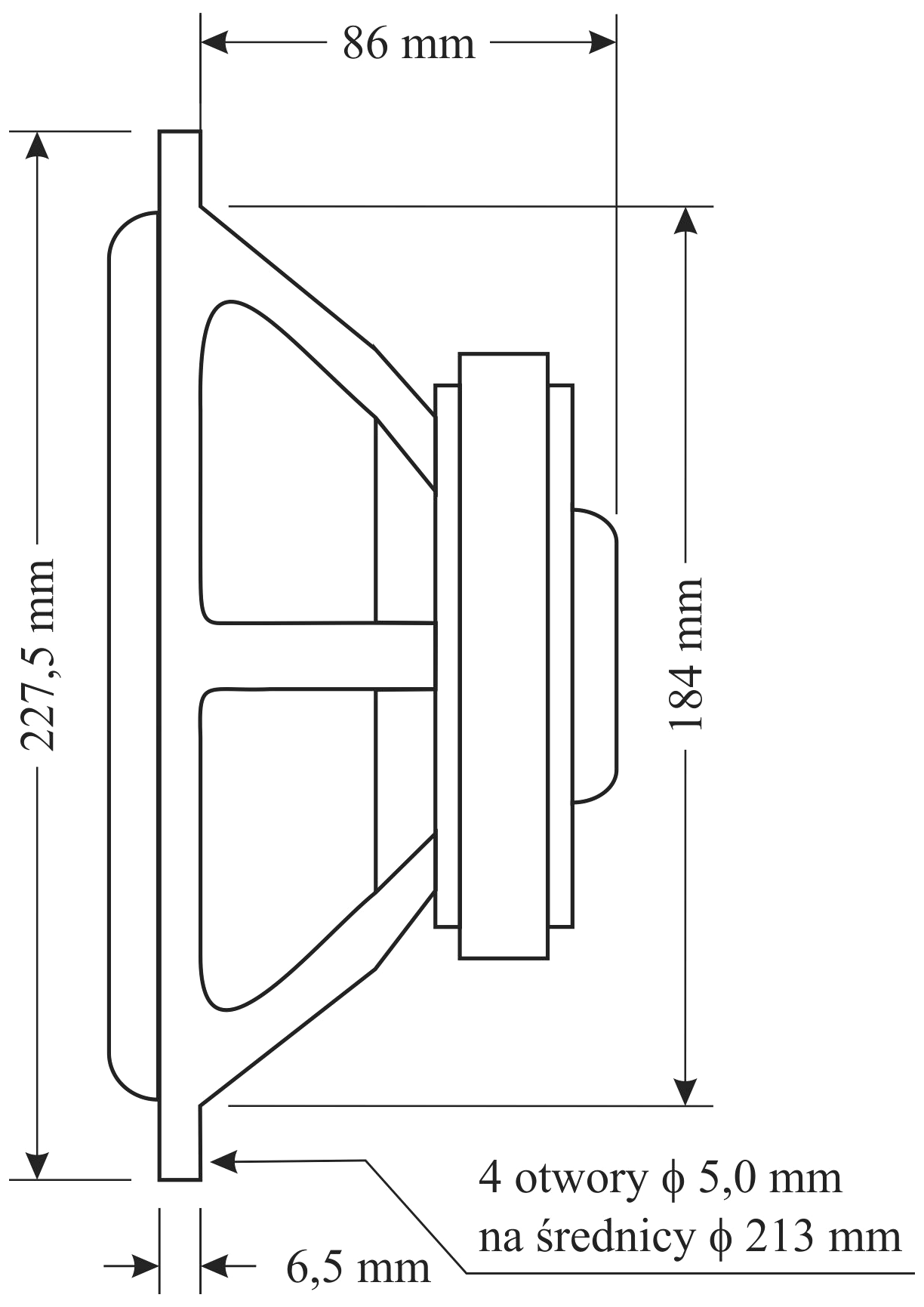

Dimensions
- Nominal diameter 8″
- 220mm
- Overall diameter 228mm
- Baffle cutout diameter 184mm
- Overall depth 93mm
- Volume occupied by the driver (estimated) 0.79L
- Net weight 1.9kg
- Frame material Stal
.webp)
.webp)
