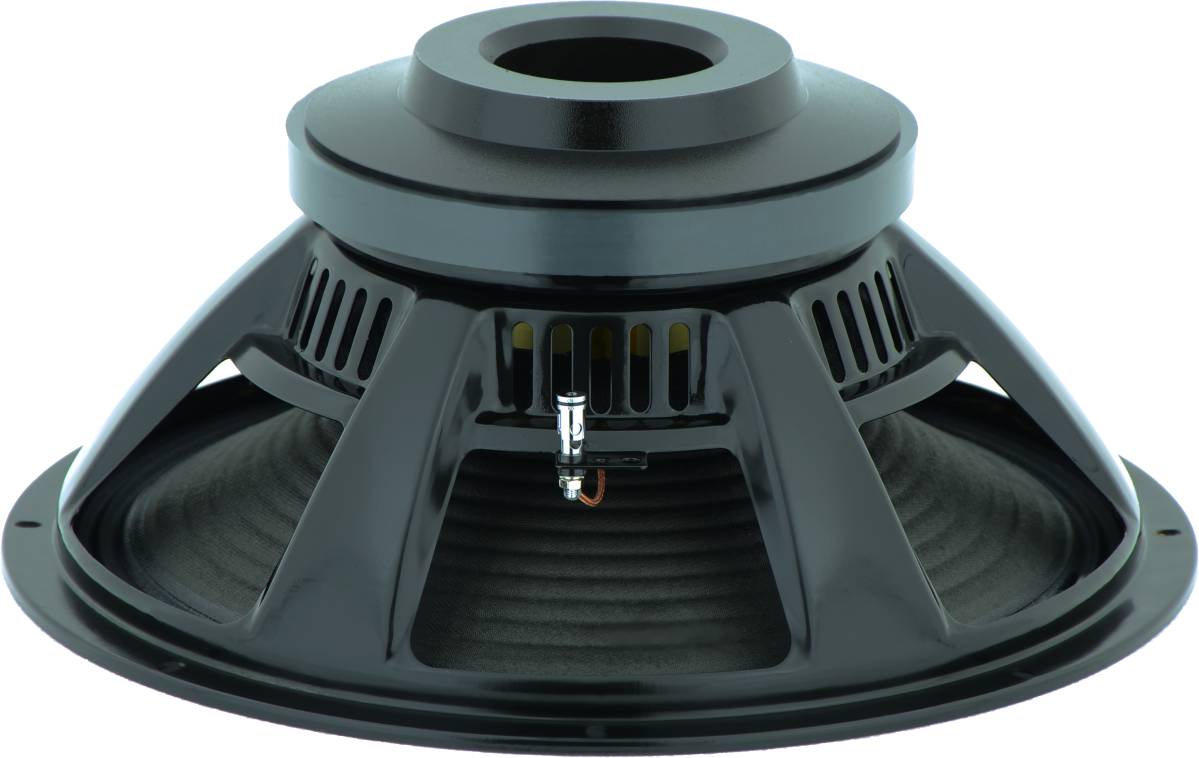

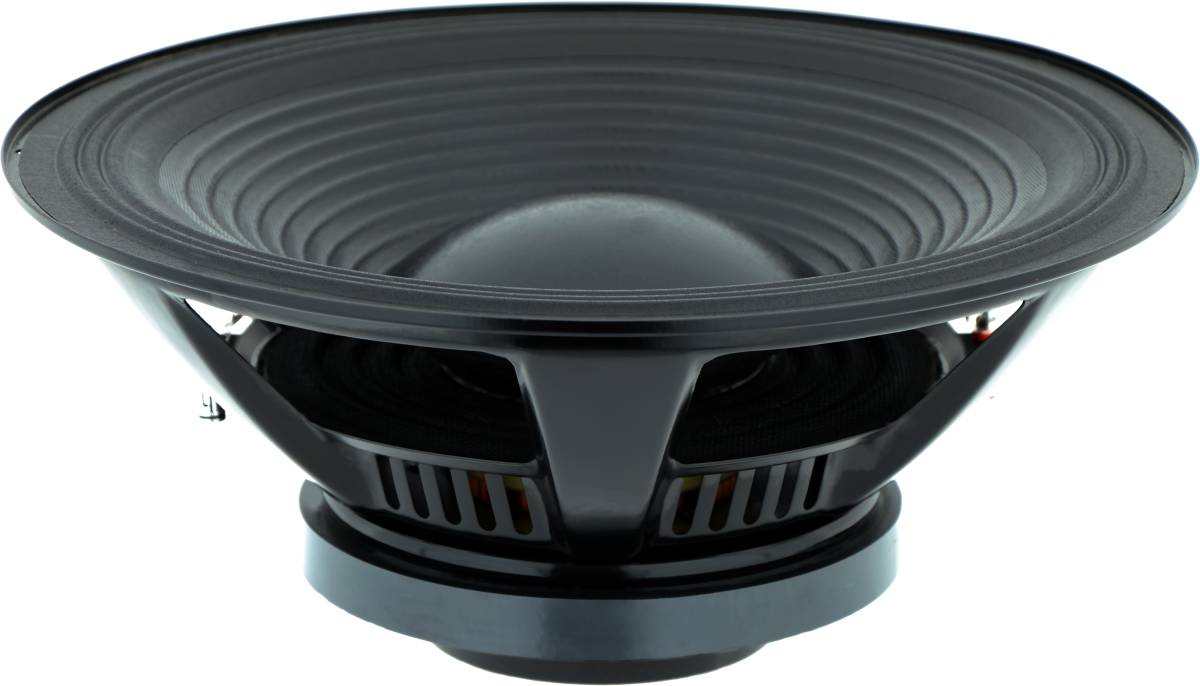

STX W.38.1200.8.MC
8Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 28 Hz |
| Q factor | 0.32 |
| Sensitivity | 92.4 dB |
| Linear excursion | ± 8 mm |
| Program power | 1200 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.4dB

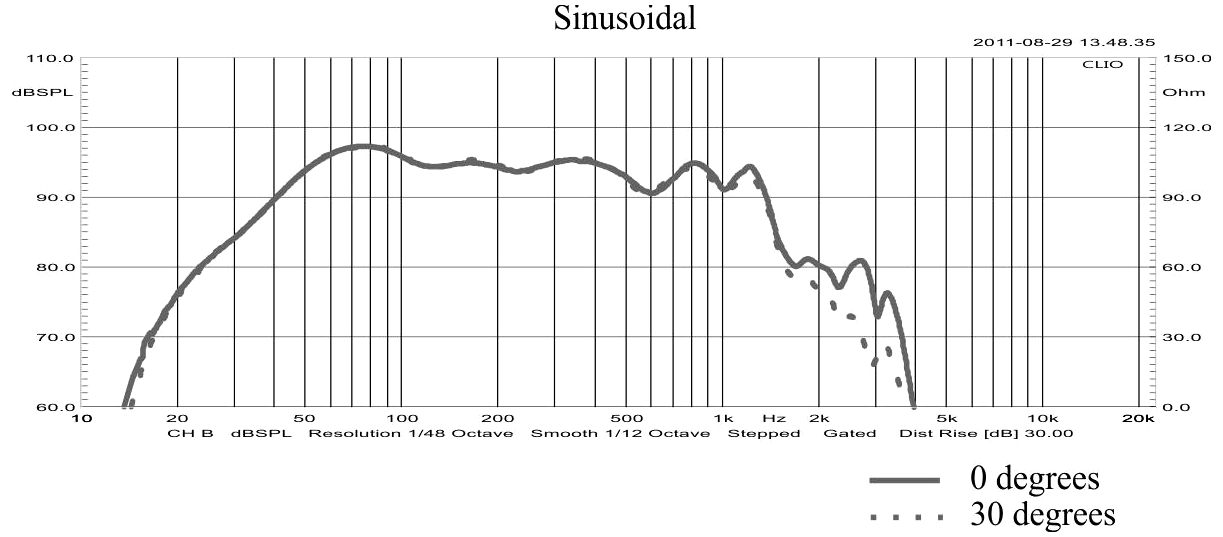

- Frequency response 30 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 28Hz
- Mechanical quality factor QMS 4.17
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion (one way) xmax 8mm
- Maximum excursion before damage xlim 25mm
- Air volume displaced at xmax VD 684cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.0Ω
- Inductance (1kHz) LE 2.21mH
- VC Diameter 100mm
- Winding material Copper
- Former material Aluminium
Magnet
- Force factor Bl 20N/A
- Motor constant Bl/√RE 8.94N/√W
- Material Ferrite
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass (including air load) MMS 160g
- Moving mass MMD 143g
- Material Modified cellulose
Suspensions
- Stiffness KMS 5N/mm
- Compliance CMS 200µm/N
- Equivalent volume to the compliance VAS 207L
- Mechanical resistance RMS 6.75N·s/m

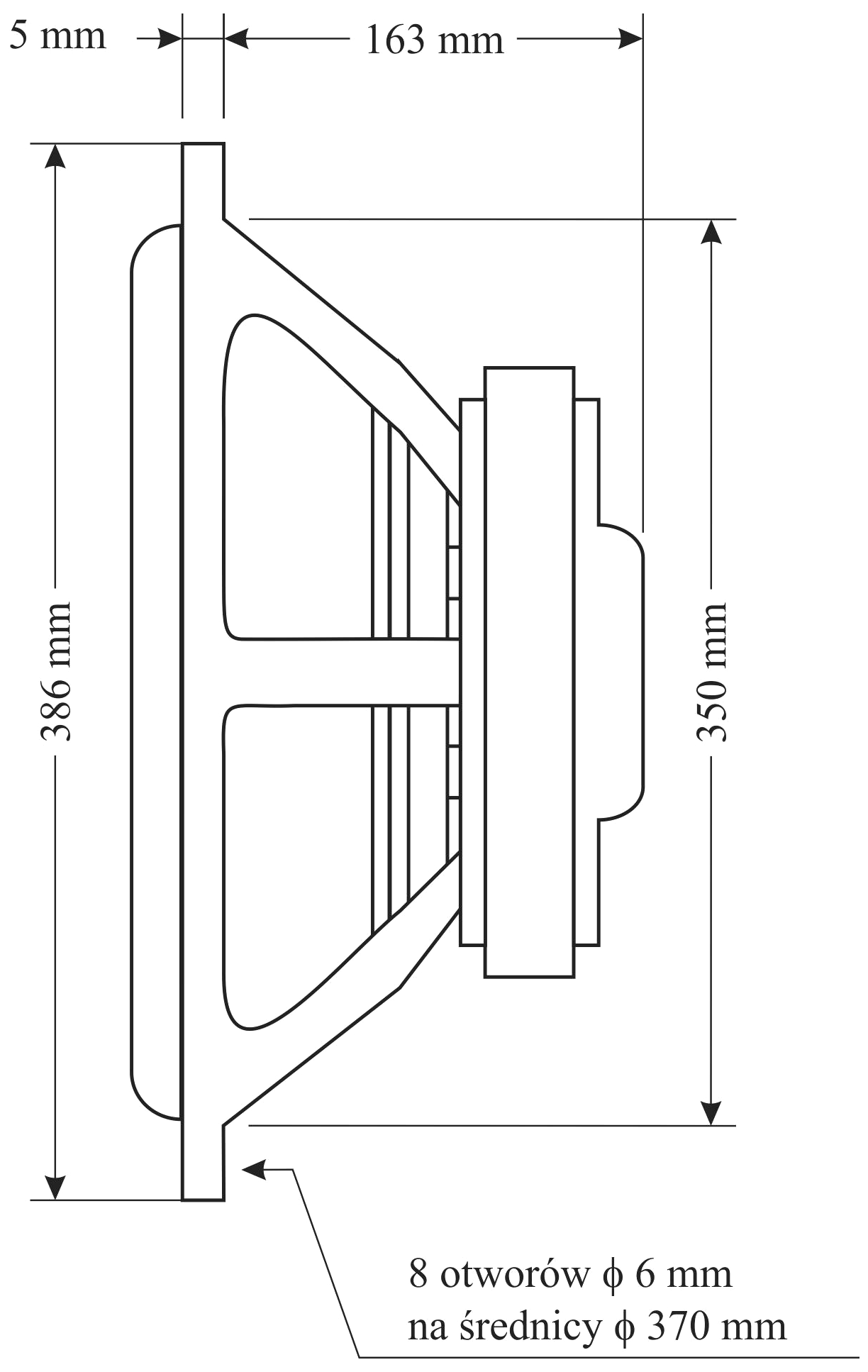

Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 386mm
- Baffle cutout diameter 350mm
- Overall depth 168mm
- Volume occupied by the driver (estimated) 3.9L
- Net weight 7.5kg
- Frame material Steel
.webp)
.webp)
