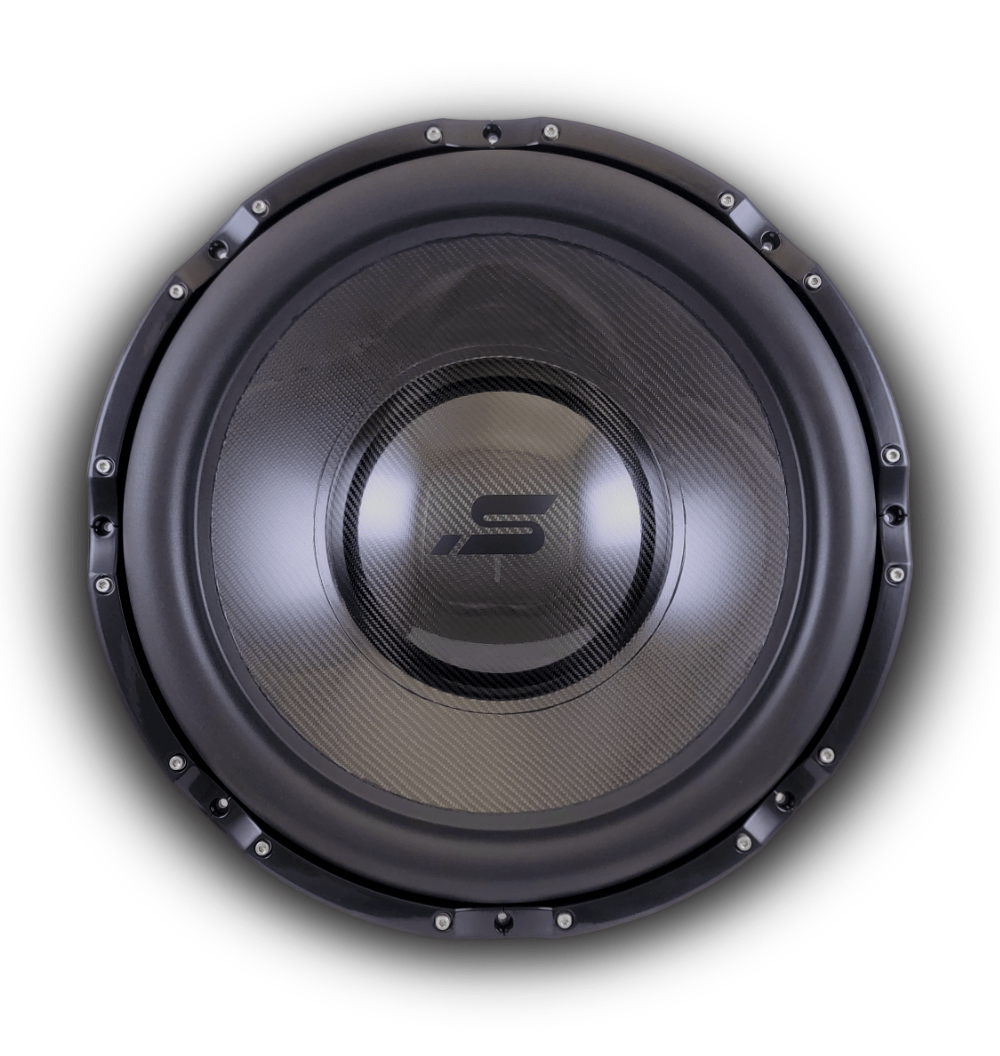

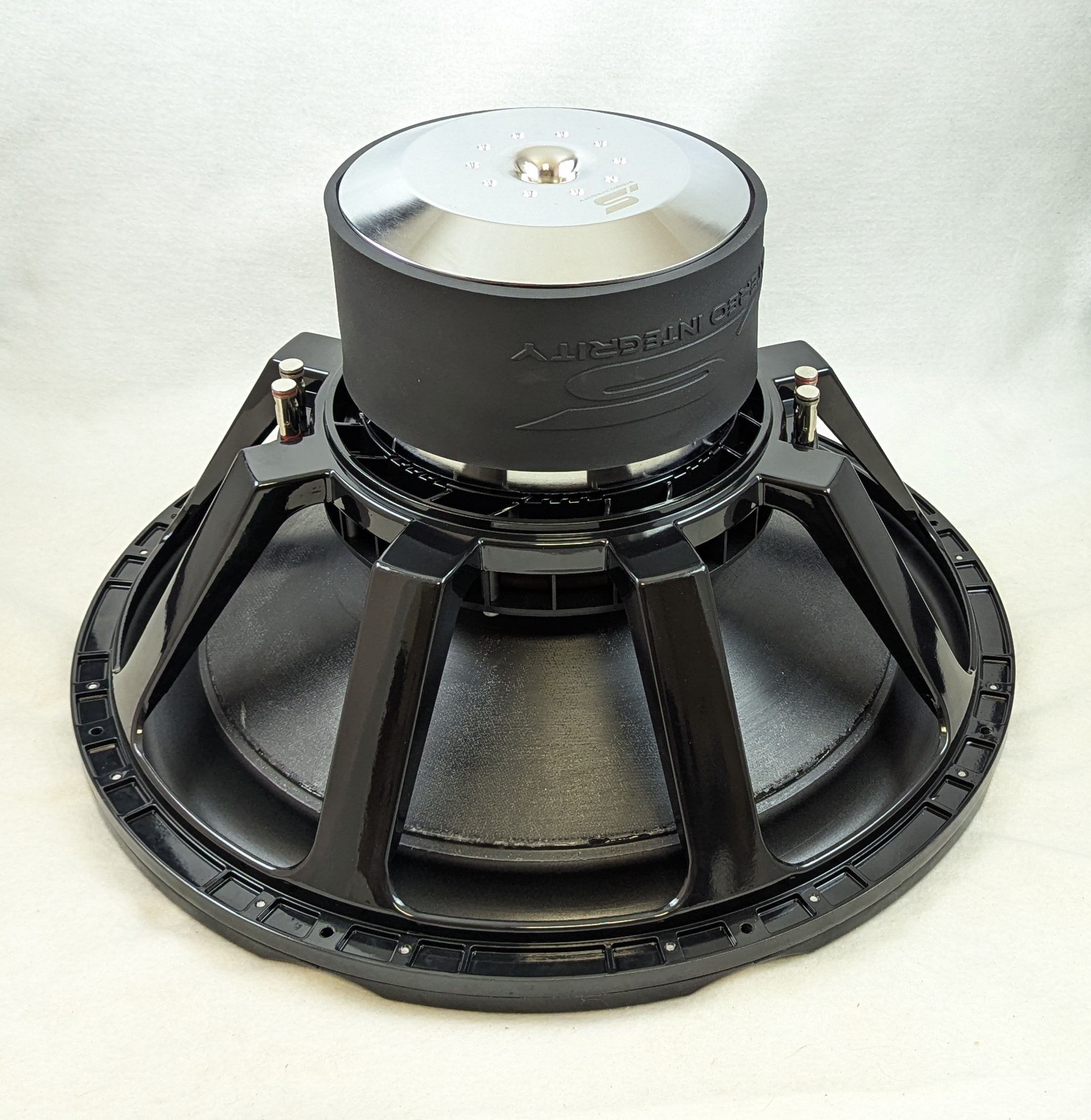

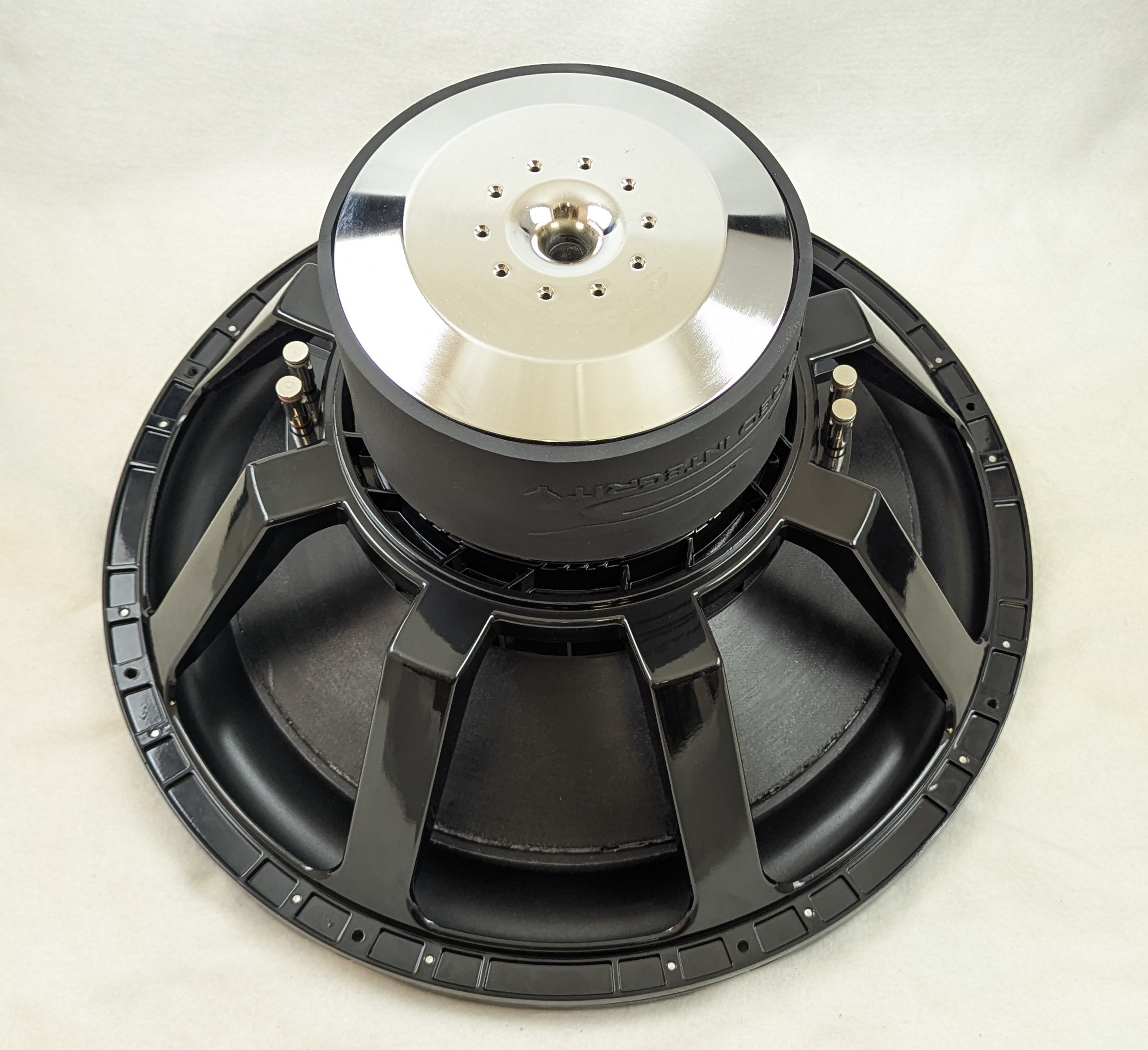

Stereo Integrity HS-24
2x2Ω
Subwoofer
| Nominal diameter | 24″ / 618 mm |
| Resonance | 16.2 Hz |
| Q factor | 0.47 |
| Sensitivity | 88.1 dB |
| Linear excursion | ± 40 mm |
| Program Power | 6000 W |
.png)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.1dB
- Frequency response 5 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 16.2Hz
- Mechanical quality factor QMS 5.36
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.47
Large signal parameters
- Maximum linear excursion (one way) xmax 40mm
- Maximum excursion before damage xlim 60mm
- Air volume displaced at xmax VD 8330cm³
- Power handling P 3000W
- Program power Pmax 6000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.5Ω
- Inductance (1kHz, in series) LE 2.1mH
- Winding material Copper
Magnet

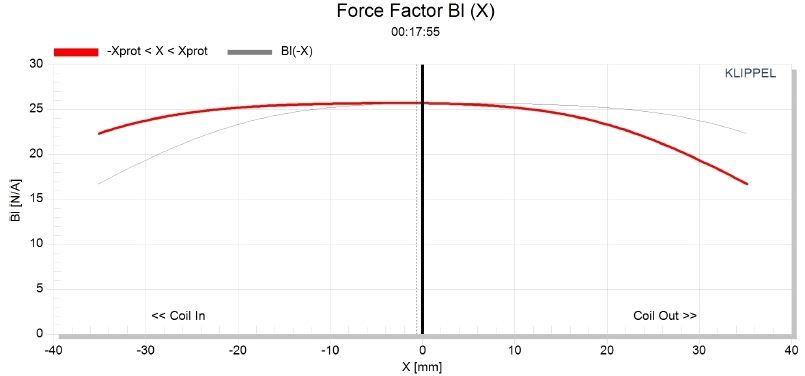

- Force factor (in series) Bl 26.3N/A
- Motor constant Bl/√RE 14.1N/√W
- Material Ferrite
Diaphragm
- Effective diameter 515mm
- Effective area SD 2083cm²
- Moving mass MMS 1067g
- Moving mass (without air load) MMD 1000g
- Material Carbon Fiber, Kevlar
Suspensions

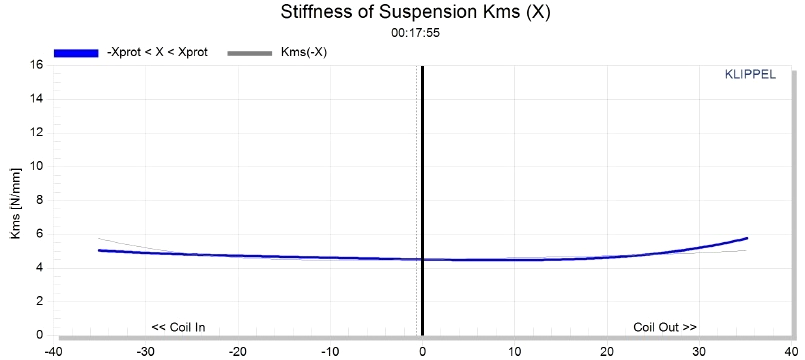

- Stiffness KMS 10.8N/mm
- Compliance CMS 92.7µm/N
- Equivalent volume to the compliance VAS 564L
- Mechanical resistance RMS 20.3N·s/m
- Spider material Nomex
Dimensions
- Nominal diameter 24″
- 618mm
- Overall diameter 618mm
- Baffle cutout diameter 568mm
- Mounting depth 324mm
- Volume occupied by the driver 12.7L
- Net weight 65.77kg
- Frame material Cast Aluminium
.png)
.png)
