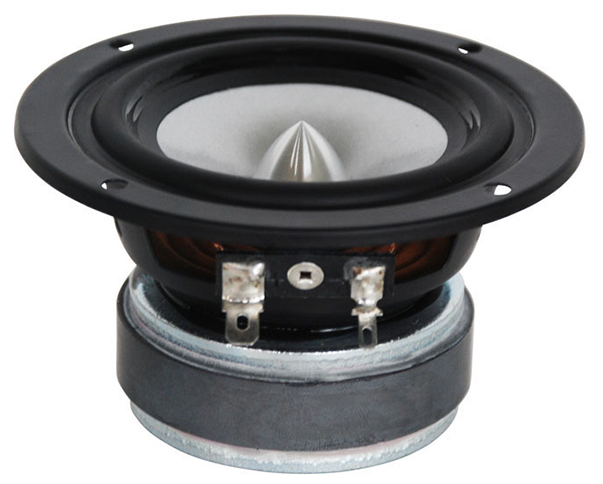

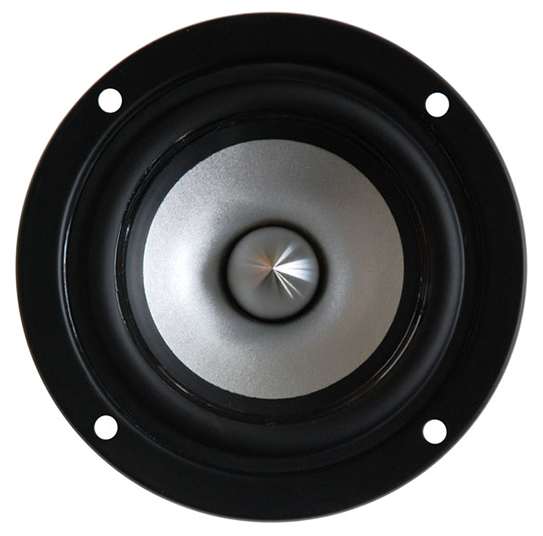

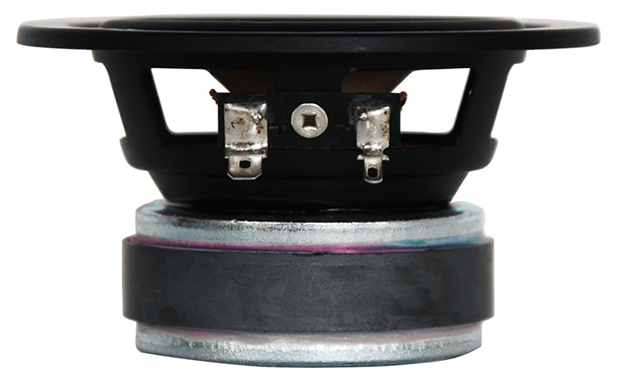

Tang Band W3-871B
SC
B
Full-range
| Nominal diameter | 3″ / 76 mm |
| Resonance | 110 Hz |
| Q factor | 0.52 |
| Sensitivity | 86.6 dB |
| Linear excursion | ± 0.5 mm |
| Program power | 20 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.6dB

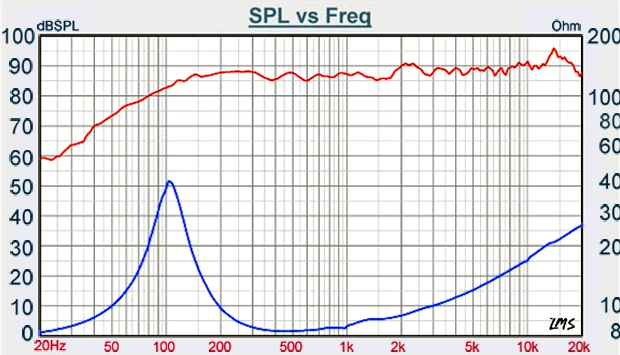

- Frequency response 110 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 110Hz
- Mechanical quality factor QMS 3.33
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.52
Large signal parameters
- Maximum linear excursion (one way) xmax 0.5mm
- Air volume displaced at xmax VD 1.6cm³
- Power handling P 10W
- Program power Pmax 20W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.6Ω
- Inductance (1kHz) LE 0.078mH
- VC Diameter 18.4mm
Magnet
- Force factor Bl 3.69N/A
- Motor constant Bl/√RE 1.44N/√W
- Air gap height HAG 6mm
- Material Ferrite
Diaphragm
- Effective diameter 64mm
- Effective area SD 32cm²
- Moving mass (including air load) MMS 2g
- Moving mass MMD 1.9g
- Material Silver Paper
Suspensions
- Stiffness KMS 0.823N/mm
- Compliance CMS 1215µm/N
- Equivalent volume to the compliance VAS 1.18L
- Mechanical resistance RMS 0.42N·s/m
- Surround material Santoprene

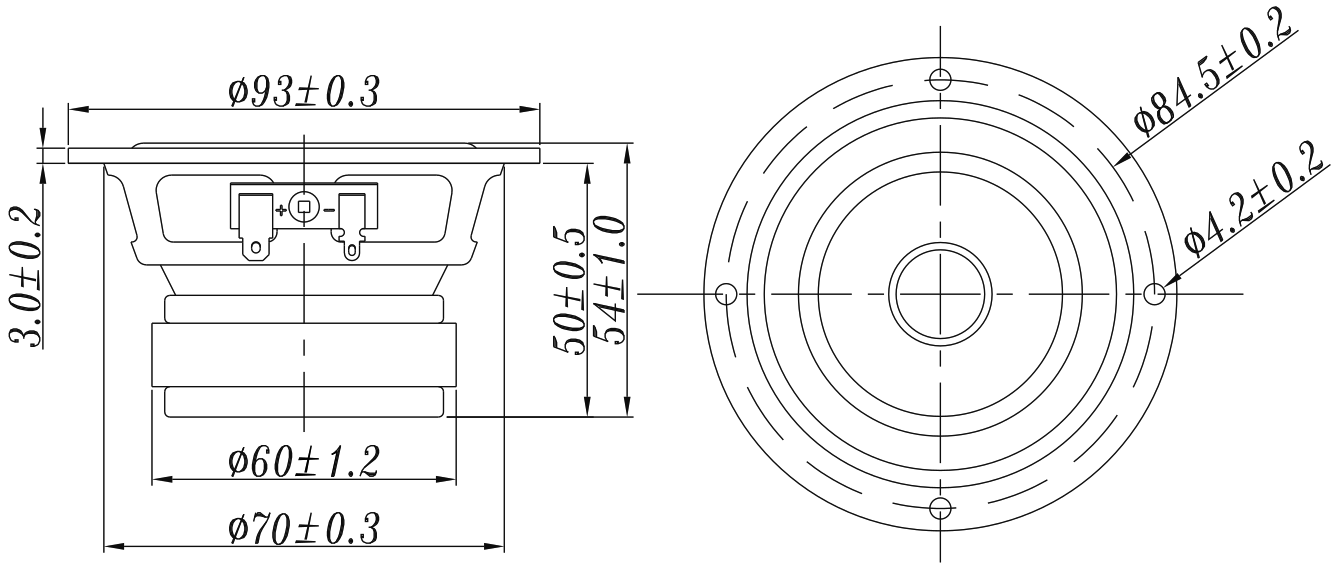

Dimensions
- Nominal diameter 3″
- 76mm
- Volume occupied by the driver (estimated) 0.2L
- Net weight 0.53kg
.png)
.png)
