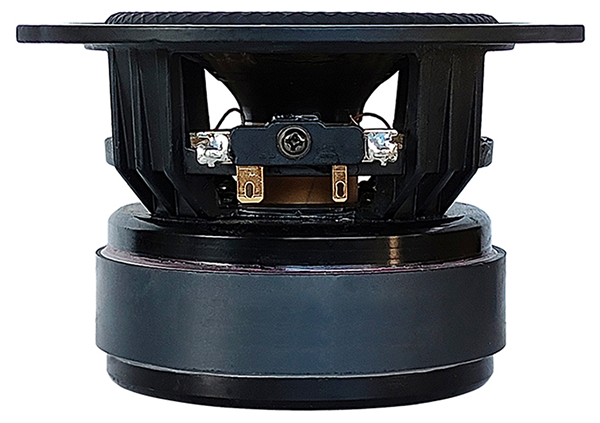

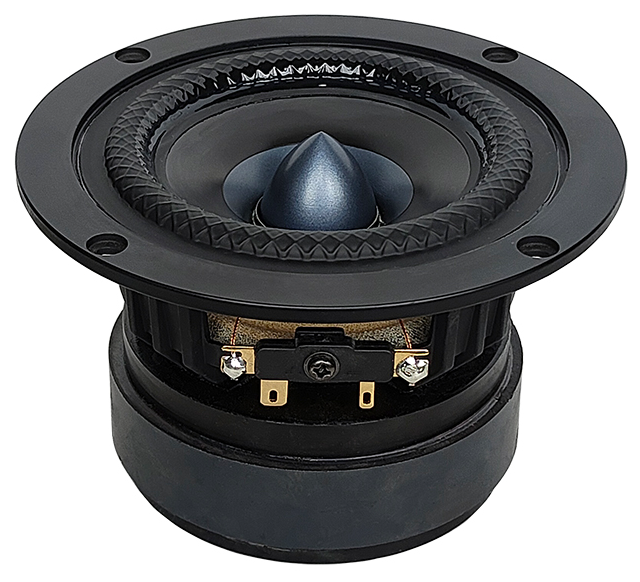

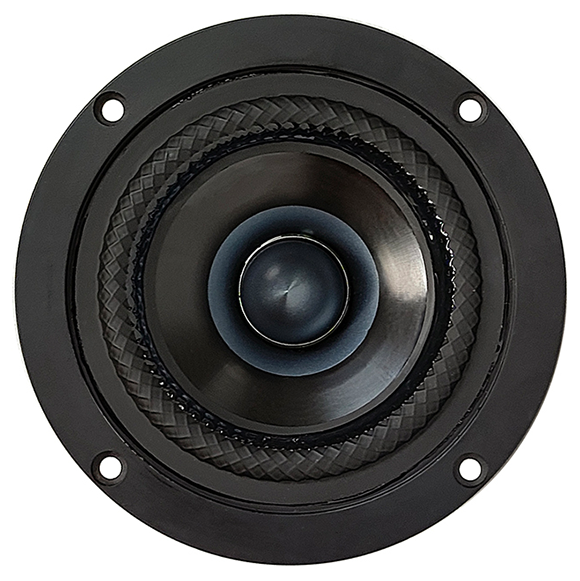

Tang Band W4-2414
8Ω
Full-range
| Nominal diameter | 4″ / 102 mm |
| Resonance | 65 Hz |
| Q factor | 0.40 |
| Sensitivity | 86.9 dB |
| Linear excursion | ± 2.5 mm |
| Program Power | 50 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.9dB
- Frequency response 65 - 40000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 65Hz
- Mechanical quality factor QMS 2.77
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion xmax 2.5mm
- Air volume displaced at xmax VD 13cm³
- Power handling P 25W
- Program power Pmax 50W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.3Ω
- Inductance (1kHz) LE 0.032mH
- VC Diameter 25.4mm
Magnet
- Force factor Bl 5.49N/A
- Motor constant Bl/√RE 2.19N/√W
- Air gap height HAG 10mm
- Material Ferrite
Diaphragm
- Effective diameter 81mm
- Effective area SD 52cm²
- Moving mass MMS 5.06g
- Moving mass (without air load) MMD 4.8g
- Material Alum.+Polypropylene
Suspensions
- Stiffness KMS 0.993N/mm
- Compliance CMS 1007µm/N
- Equivalent volume to the compliance VAS 3.87L
- Mechanical resistance RMS 0.75N·s/m
- Surround material Santoprene

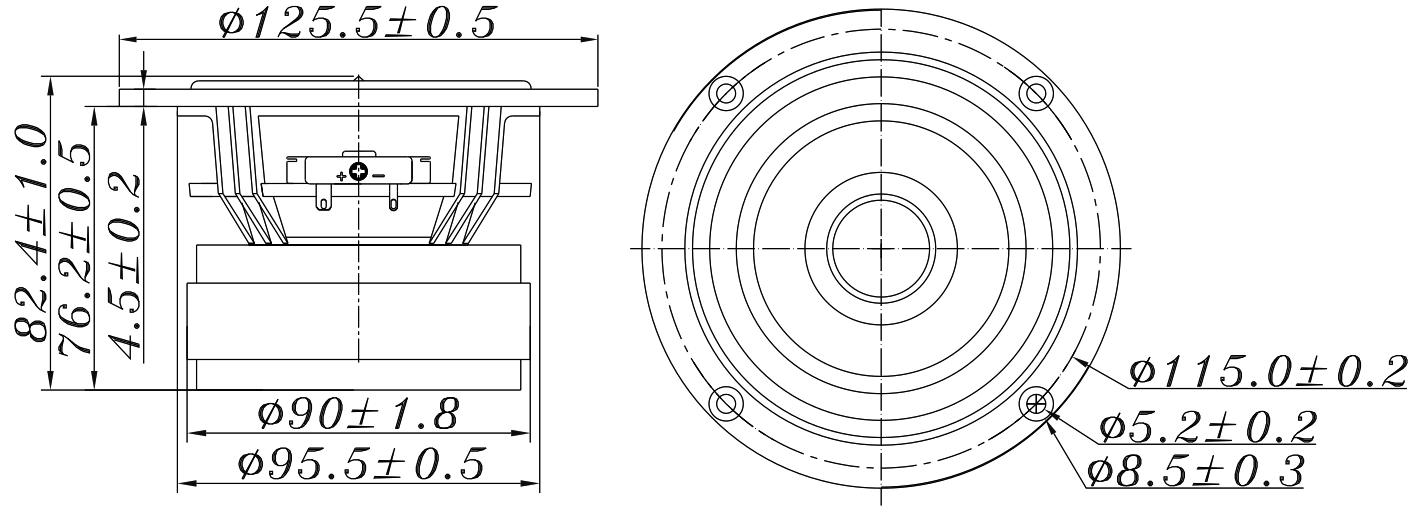

Dimensions
- Nominal diameter 4″
- 102mm
- Volume occupied by the driver (estimated) 0.67L
- Net weight 1.638kg
.png)
.png)
