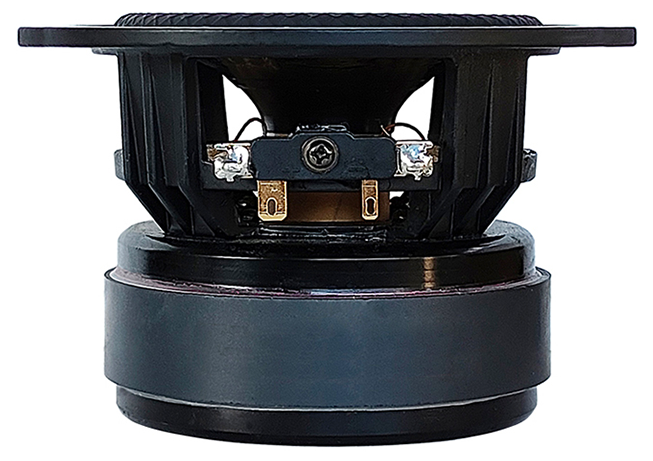

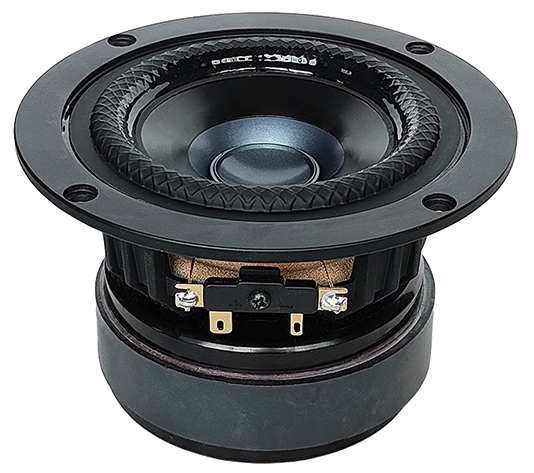

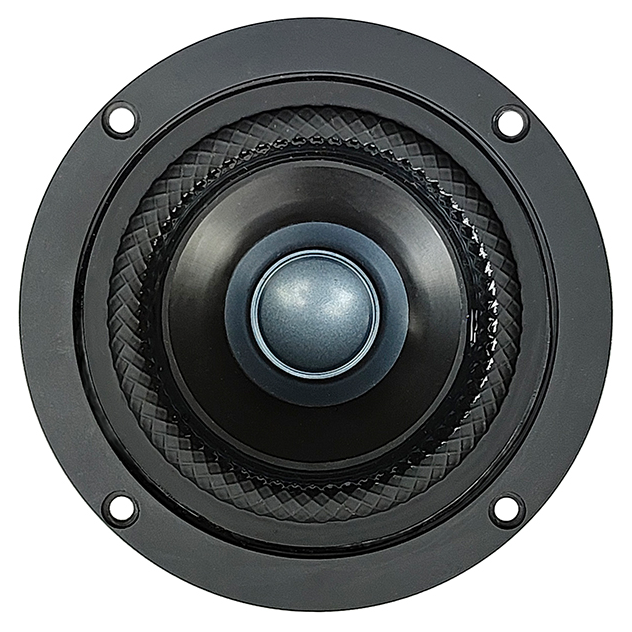

Tang Band W4-2417
8Ω
Full-range
| Nominal diameter | 4″ / 102 mm |
| Resonance | 65 Hz |
| Q factor | 0.44 |
| Sensitivity | 86.6 dB |
| Linear excursion | ± 2.5 mm |
| Program Power | 50 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.6dB

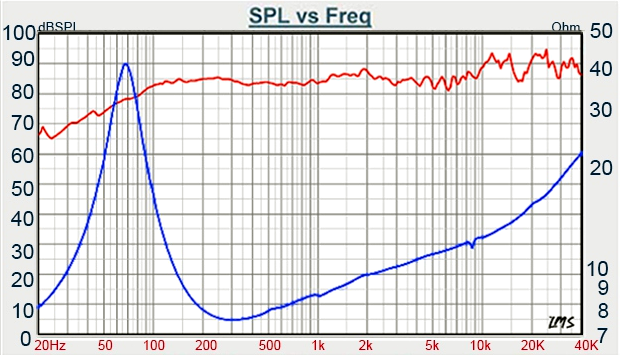

- Frequency response 65 - 40000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 65Hz
- Mechanical quality factor QMS 2.87
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion xmax 2.5mm
- Air volume displaced at xmax VD 14cm³
- Power handling P 25W
- Program power Pmax 50W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.3Ω
- Inductance (1kHz) LE 0.032mH
- VC Diameter 25.4mm
Magnet
- Force factor Bl 5.36N/A
- Motor constant Bl/√RE 2.14N/√W
- Air gap height HAG 10mm
- Material Ferrite
Diaphragm
- Effective diameter 85mm
- Effective area SD 57cm²
- Moving mass MMS 5.56g
- Moving mass (without air load) MMD 5.3g
- Material Alum.+Polypropylene
Suspensions
- Stiffness KMS 1.01N/mm
- Compliance CMS 988µm/N
- Equivalent volume to the compliance VAS 4.56L
- Mechanical resistance RMS 0.79N·s/m
- Surround material Santoprene

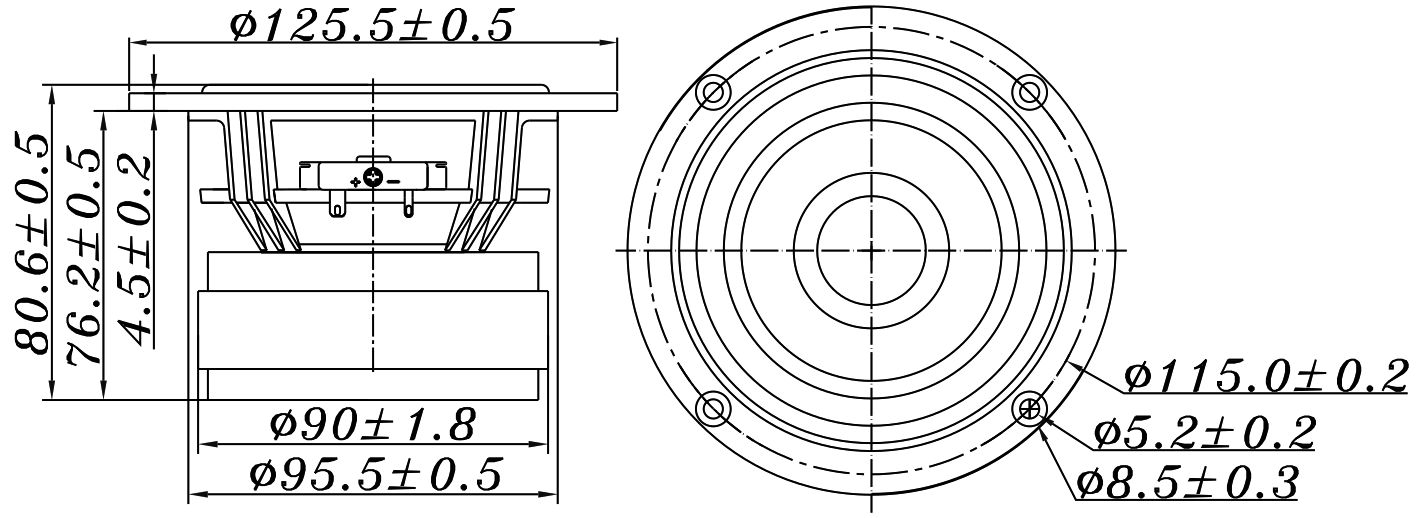

Dimensions
- Nominal diameter 4″
- 102mm
- Volume occupied by the driver (estimated) 0.65L
- Net weight 1.6kg
.png)
.png)
