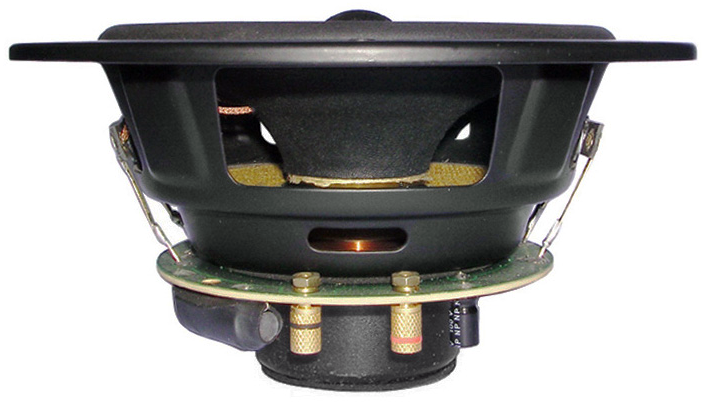

Tang Band W5-938SC
8Ω
Coaxial
| Nominal diameter | 5″ / 127 mm |
| Resonance | 65 Hz |
| Q factor | 0.41 |
| Sensitivity | 89.9 dB |
| Linear excursion | ± 4.5 mm |
| Program power | 60 W |
Discontinued
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.9dB

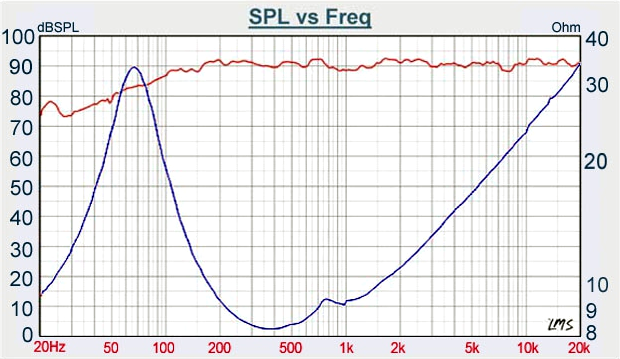

- Frequency response 65 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 65Hz
- Mechanical quality factor QMS 1.97
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.41
Large signal parameters
- Maximum linear excursion (one way) xmax 4.5mm
- Air volume displaced at xmax VD 42cm³
- Power handling P 30W
- Program power Pmax 60W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.8Ω
- Inductance (1kHz) LE 0.103mH
- VC Diameter 32mm
Magnet
- Force factor Bl 6.21N/A
- Motor constant Bl/√RE 2.38N/√W
- Air gap height HAG 6mm
- Material Neodymium
Diaphragm
- Effective diameter 109mm
- Effective area SD 94cm²
- Moving mass (including air load) MMS 6.99g
- Moving mass MMD 6.4g
- Material Paper
Suspensions
- Stiffness KMS 1.25N/mm
- Compliance CMS 798µm/N
- Equivalent volume to the compliance VAS 10L
- Mechanical resistance RMS 1.45N·s/m
- Surround material Rubber

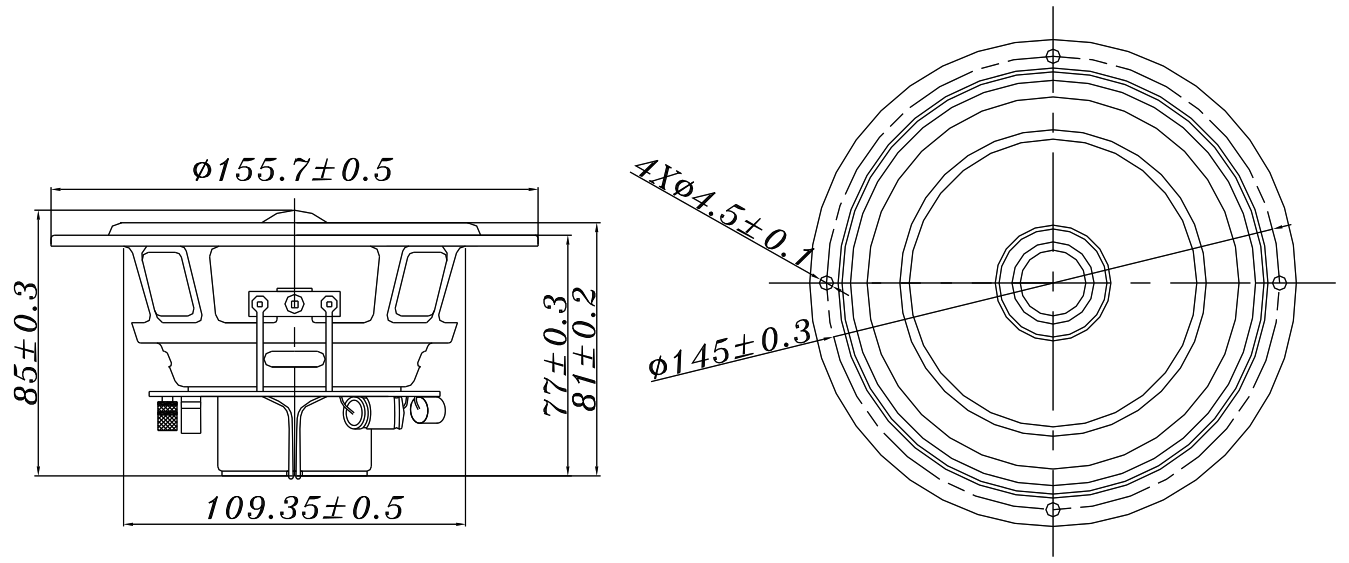

Dimensions
- Nominal diameter 5″
- 127mm
- Volume occupied by the driver (estimated) 0.25L
