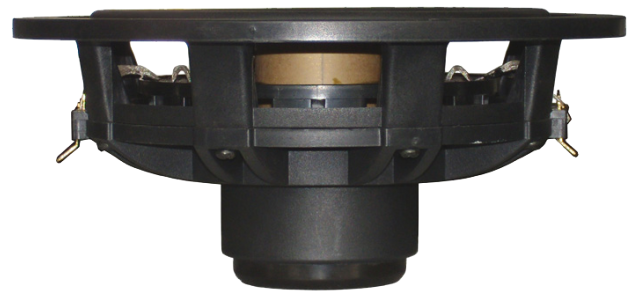

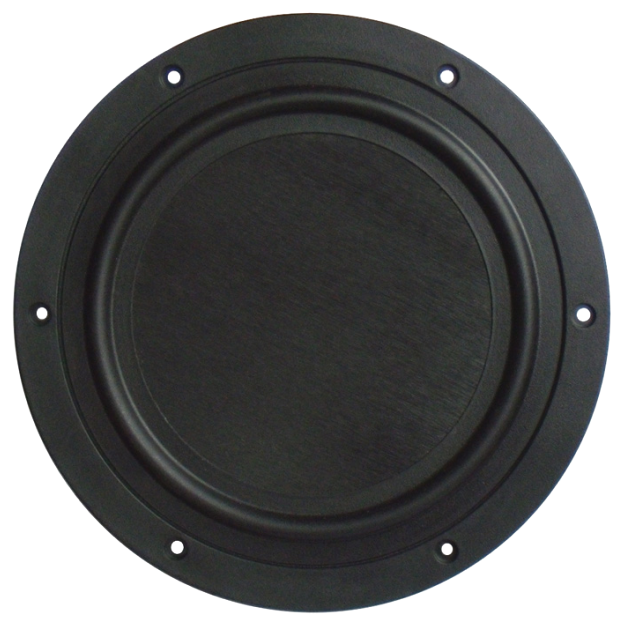

Tang Band W6-1936S
8Ω
Subwoofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 30 Hz |
| Q factor | 0.36 |
| Sensitivity | 77.9 dB |
| Linear excursion | ± 7.4 mm |
| Program Power | 160 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 77.9dB

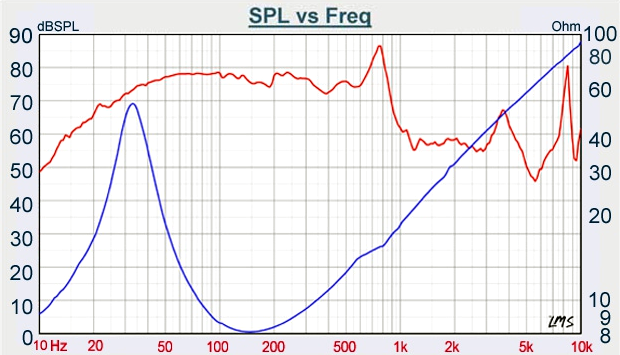

- Frequency response 30 - 800Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30Hz
- Mechanical quality factor QMS 3.09
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.36
Large signal parameters
- Maximum linear excursion (one way) xmax 7.4mm
- Air volume displaced at xmax VD 104cm³
- Power handling P 80W
- Program power Pmax 160W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.5Ω
- Inductance (1kHz) LE 0.548mH
- VC Diameter 38.5mm
Magnet
- Force factor Bl 21.6N/A
- Motor constant Bl/√RE 8.46N/√W
- Air gap height HAG 7mm
- Material Neodymium
Diaphragm
- Effective diameter 134mm
- Effective area SD 140cm²
- Moving mass MMS 142g
- Moving mass (without air load) MMD 140g
- Material Aluminium
Suspensions
- Stiffness KMS 5.97N/mm
- Compliance CMS 168µm/N
- Equivalent volume to the compliance VAS 4.66L
- Mechanical resistance RMS 8.64N·s/m
- Surround material Rubber

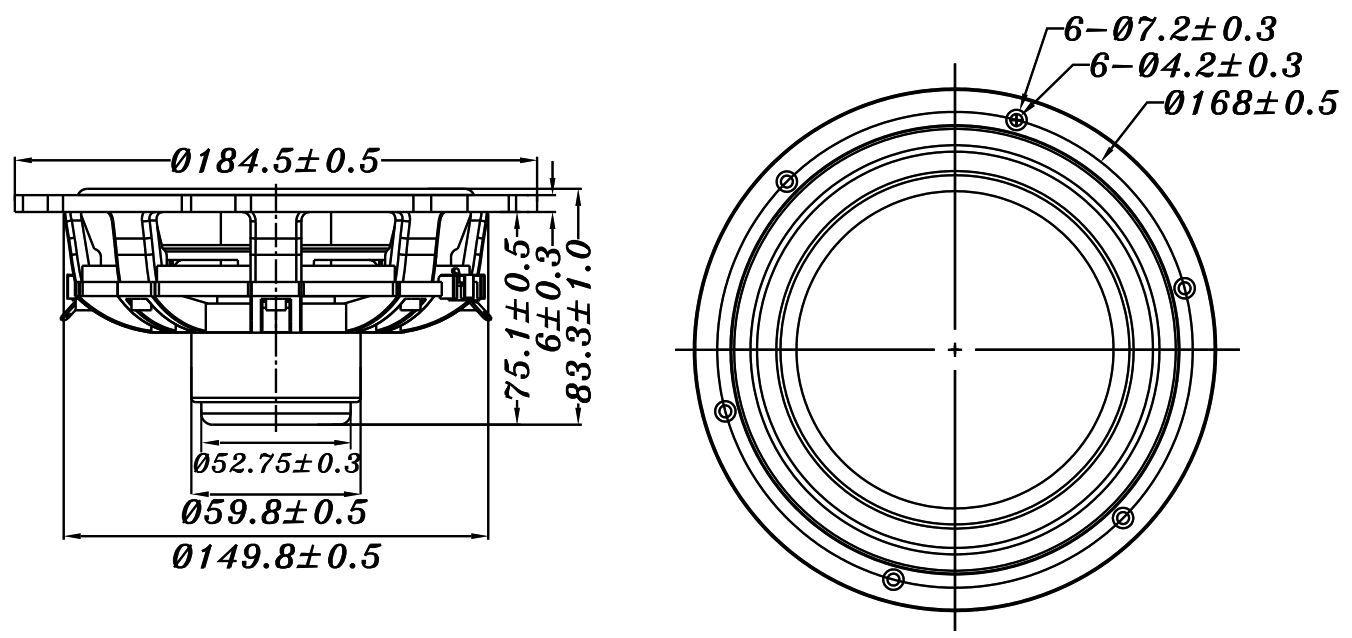

Dimensions
- Nominal diameter 6.5″
- 165mm
- Volume occupied by the driver (estimated) 0.52L
- Net weight 1.3kg
.png)
.png)
