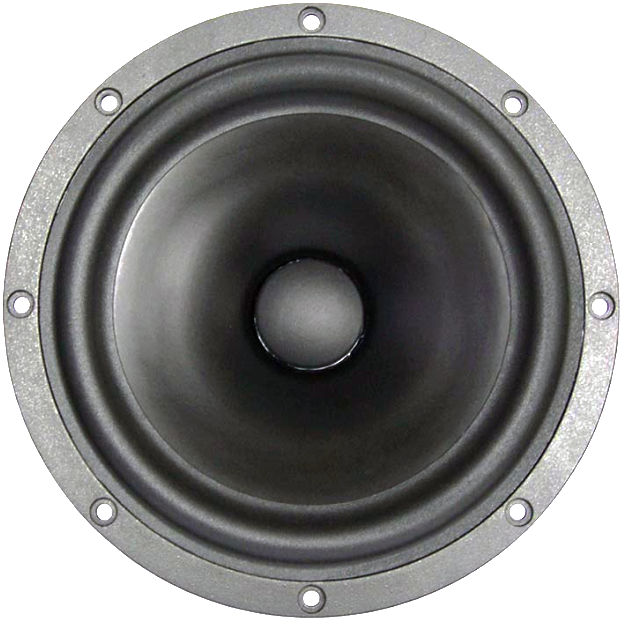

Tang Band W8-1722
4Ω
Woofer
| Nominal diameter | 8″ / 203 mm |
| Resonance | 35 Hz |
| Q factor | 0.49 |
| Sensitivity | 88.3 dB |
| Linear excursion | ± 8.5 mm |
| Program Power | 120 W |
Discontinued
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.3dB

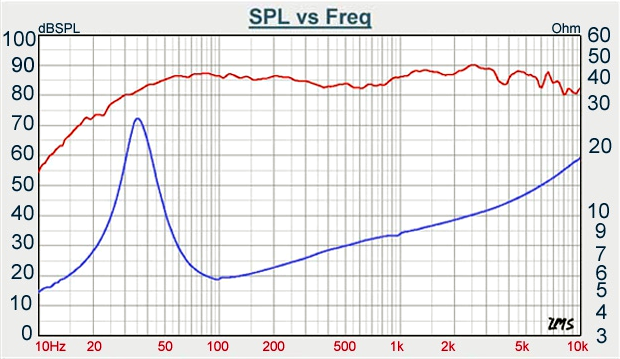

- Frequency response 35 - 3500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 3.56
- Electrical quality factor QES 0.57
- Total quality factor QTS 0.49
Large signal parameters
- Maximum linear excursion xmax 8.5mm
- Air volume displaced at xmax VD 187cm³
- Power handling P 60W
- Program power Pmax 120W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.6Ω
- Inductance (1kHz) LE 0.111mH
- VC Diameter 38.5mm
Magnet
- Force factor Bl 6.01N/A
- Motor constant Bl/√RE 3.17N/√W
- Air gap height HAG 25mm
- Material Ferrite
Diaphragm
- Effective diameter 167mm
- Effective area SD 220cm²
- Moving mass MMS 25.9g
- Moving mass (without air load) MMD 23.6g
- Material Paper
Suspensions
- Stiffness KMS 1.25N/mm
- Compliance CMS 802µm/N
- Equivalent volume to the compliance VAS 55.1L
- Mechanical resistance RMS 1.6N·s/m
- Surround material Foam Rubber

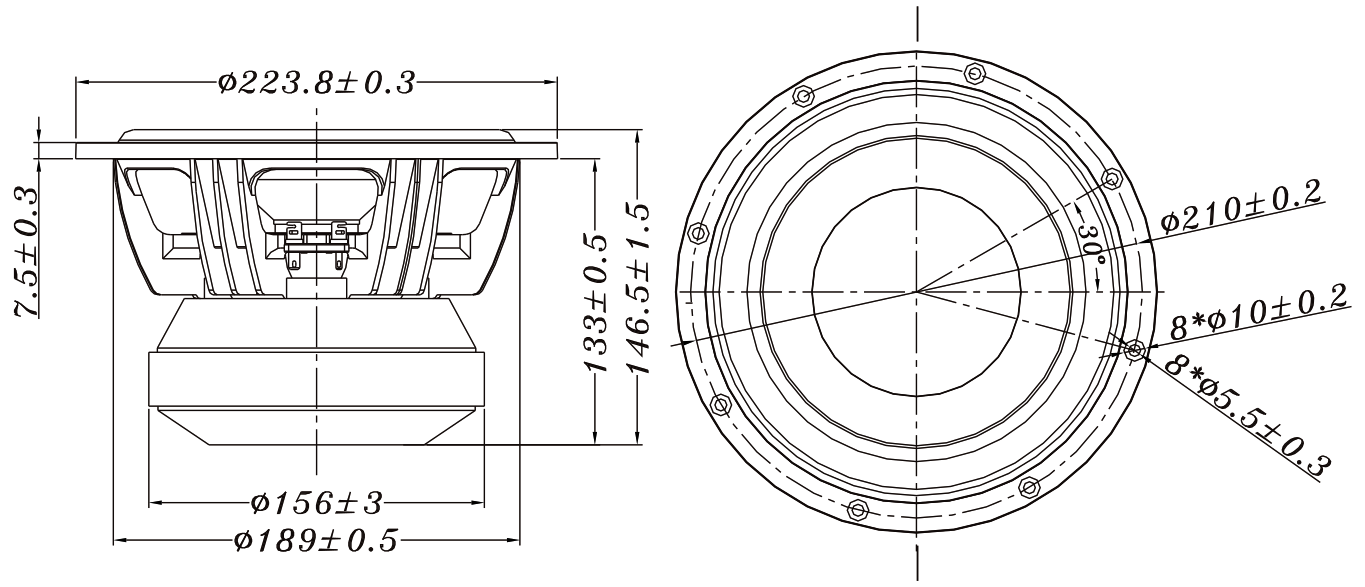

Dimensions
- Nominal diameter 8″
- 203mm
- Volume occupied by the driver (estimated) 0.85L
