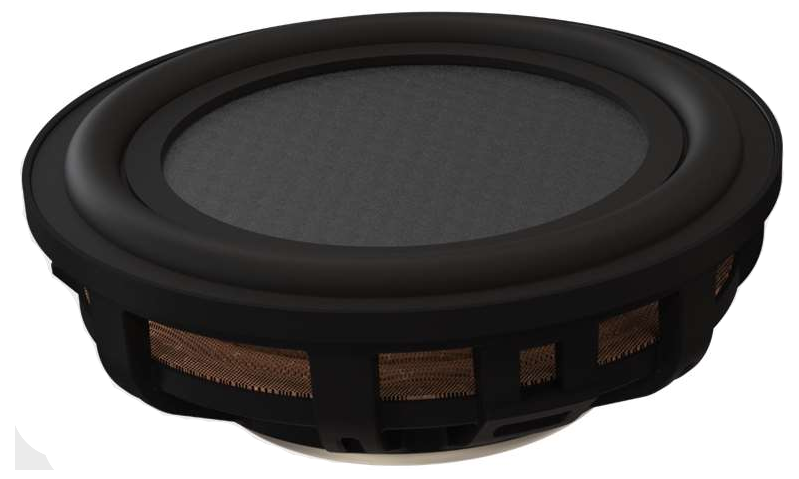

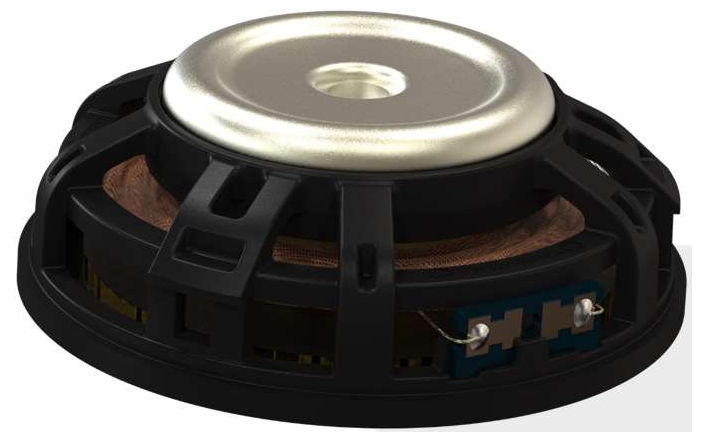

Tectonic TEBM35C015-6LW
8Ω
Full-range
| Nominal diameter | 1.5″ / 44 mm |
| Resonance | 148 Hz |
| Q factor | 1.07 |
| Sensitivity | 78.9 dB |
| Linear excursion | ± 0.9 mm |
| Program Power | 4 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 78.9dB

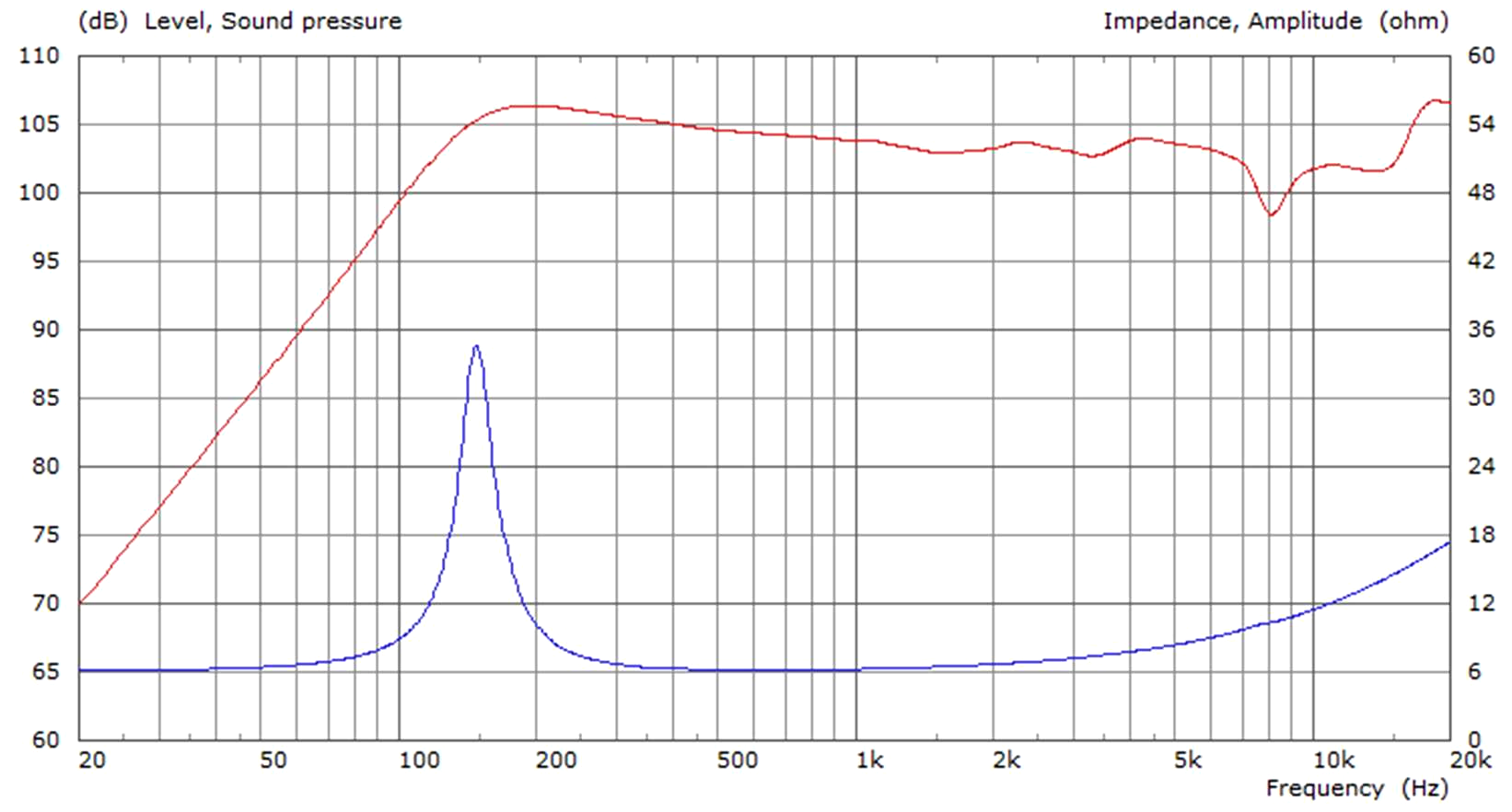

- Frequency response 100 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 148Hz
- Mechanical quality factor QMS 6.04
- Electrical quality factor QES 1.30
- Total quality factor QTS 1.07
Large signal parameters
- Maximum linear excursion xmax 0.9mm
- Maximum excursion before damage xlim 2.2mm
- Air volume displaced at xmax VD 0.9cm³
- Power handling P 2W
- Program power Pmax 4W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.7Ω
- Inductance (1kHz) LE 0.09mH
- VC Diameter 20.4mm
- Winding material Copper
Magnet
- Force factor Bl 2.25N/A
- Motor constant Bl/√RE 0.94N/√W
Diaphragm
- Effective diameter 36mm
- Effective area SD 10.2cm²
- Moving mass MMS 1.24g
- Moving mass (without air load) MMD 1.2g
- Material Paper
Suspensions

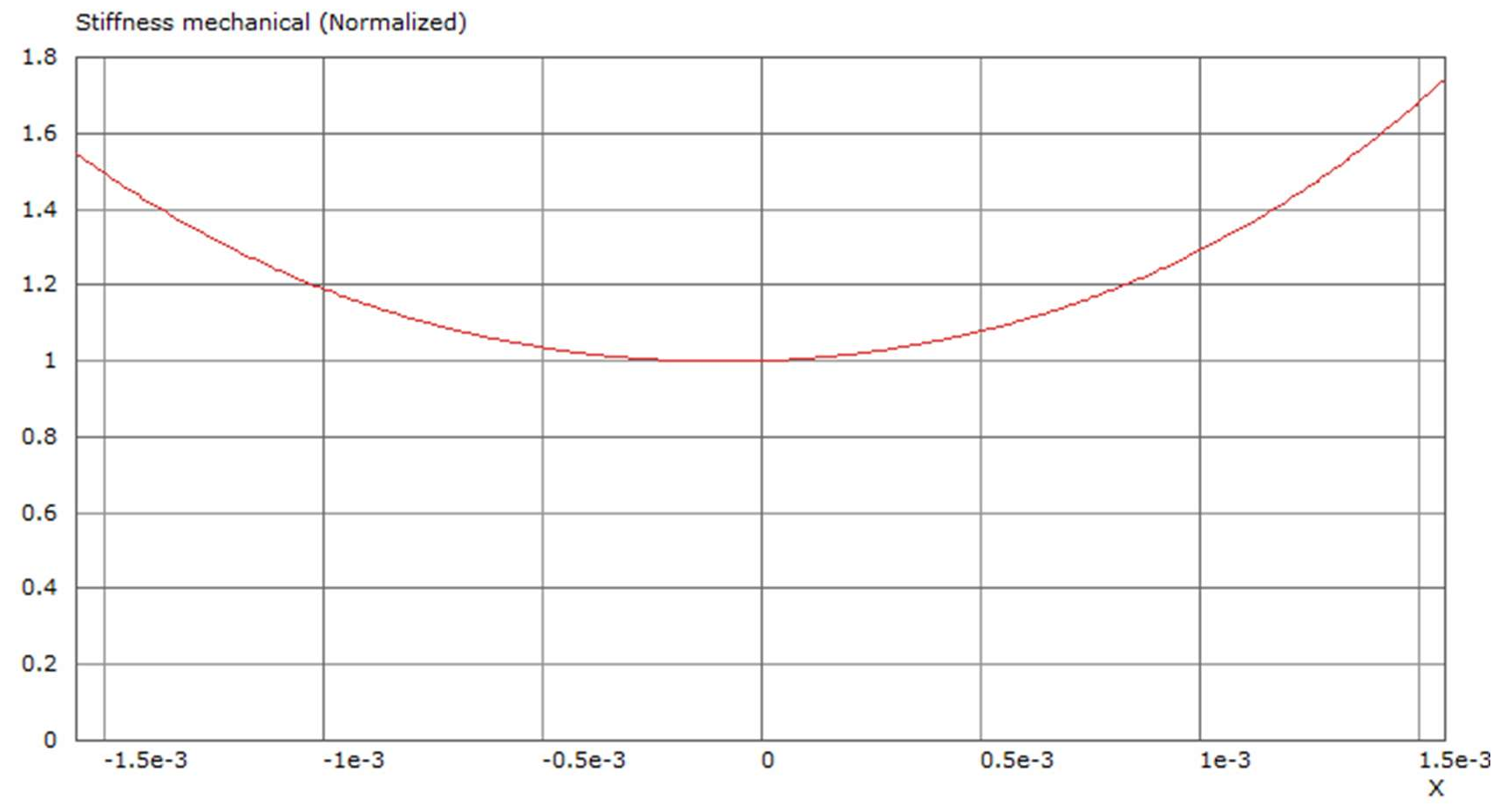

- Stiffness KMS 1.06N/mm
- Compliance CMS 940µm/N
- Equivalent volume to the compliance VAS 0.139L
- Mechanical resistance RMS 0.19N·s/m

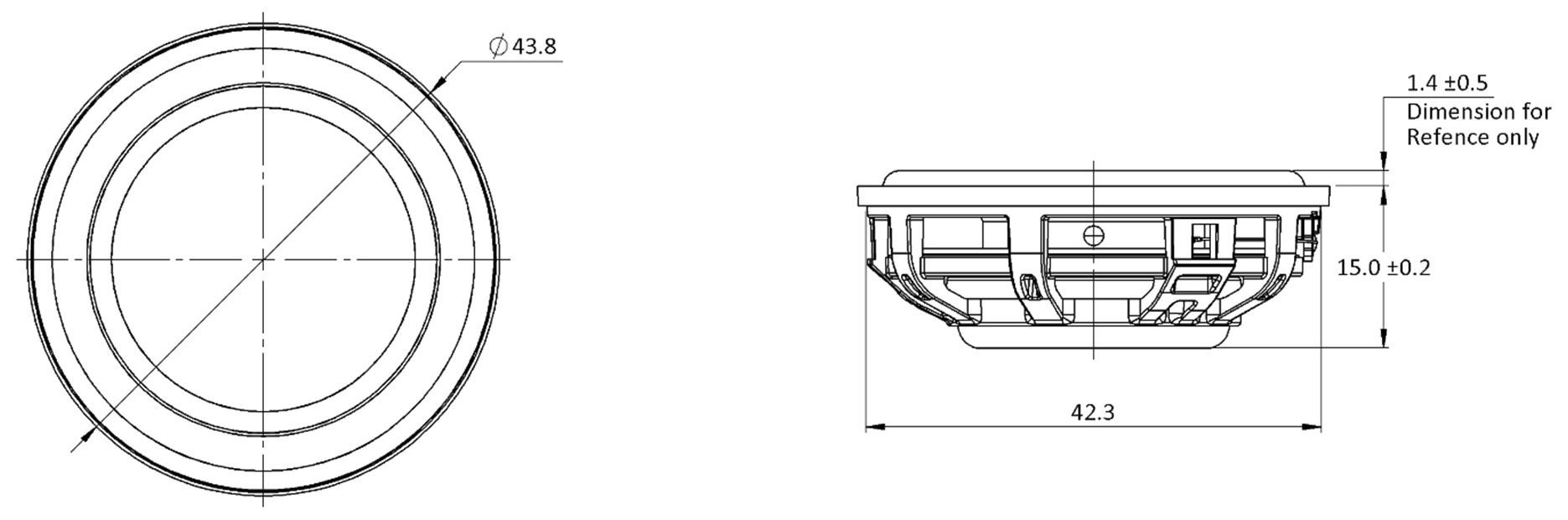

Dimensions
- Nominal diameter 1.5″
- 44mm
- Overall diameter 44mm
- Baffle cutout diameter 43mm
- Overall depth 15mm
- Volume occupied by the driver 0.01L
- Net weight 0.021kg
.webp)
.webp)
.webp)
.webp)
