VISATON F 8 SC - 8 Ohm

• Sensitivity (1W, 1m, infinite baffle) SPL1W 84.2dB

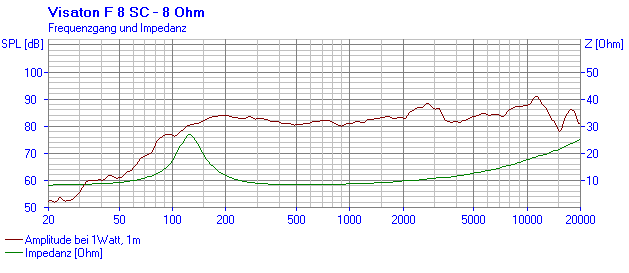

• Frequency response 80 - 15000Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 125Hz
• Mechanical quality factor QMS 2.94
• Electrical quality factor QES 1.29
• Total quality factor QTS 0.90

Large signal parameters

• Maximum linear excursion xmax 0.8mm
• Maximum excursion before damage xlim 2.5mm
• Air volume displaced at xmax VD 2.4cm³
• Power handling P 20W
• Program power Pmax 30W

Voice Coil

• Nominal impedance Z 8Ω
• DC resistance RE 7.9Ω
• Inductance (1kHz) LE 0.3mH
• VC Diameter 20mm
• Winding height HVC 4.5mm

Magnet

• Flux density B 0.8T
• Force factor Bl 2.2N/A
• Motor constant Bl/√RE 0.78N/√W
• Air gap height HAG 3mm

Diaphragm

• Effective diameter 62mm
• Effective area SD 30cm²
• Moving mass MMS 2g
• Moving mass (without air load) MMD 1.9g

Suspensions

• Stiffness KMS 1.28N/mm
• Compliance CMS 783µm/N
• Equivalent volume to the compliance VAS 1L
• Mechanical resistance RMS 0.53N·s/m

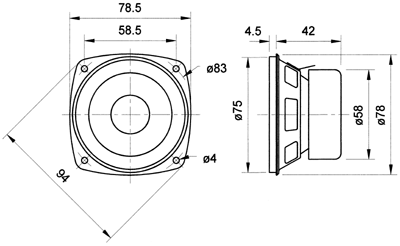

Dimensions

• Nominal diameter 3.3″
• 80mm
• Baffle cutout diameter 76mm
• Net weight 0.25kg
