Tang Band W6-1914S Mid-range

Tang Band W6-1914S

8 Ω
6.5″ Mid-range
fS65 Hz
SD140 cm²
65 - 7000 Hz
QTS0.44
xmax0.5 mm
SPL1W88.7 dB
Bl/√RE4.55
Pmax90 W
Skar Audio EVL-65 D2 Subwoofer

Skar Audio EVL-65 D2

2 x 2 Ω
6.5″ Subwoofer
fS61 Hz
SD113 cm²
QTS0.39
xmax6.3 mm
SPL1W82.8 dB
Bl/√RE6.85
Pmax400 W
SUPRAVOX 165 LB Full-range

SUPRAVOX 165 LB

4 Ω
6.5″ Full-range
fS64 Hz
SD165 cm²
60 - 19000 Hz
QTS0.39
xmax3 mm
SPL1W96.8 dB
Bl/√RE2.22
Pmax70 W
SUPRAVOX 165 GMF Mid Bass

SUPRAVOX 165 GMF

8 Ω
6.5″ Mid Bass
fS64 Hz
SD165 cm²
60 - 10000 Hz
QTS0.39
xmax3 mm
SPL1W97.9 dB
Bl/√RE2.39
Pmax70 W
Discontinued

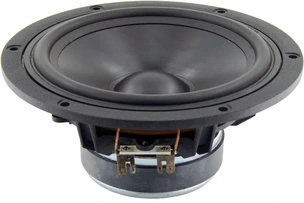

Peerless P18WJ02-04 Woofer

Peerless P18WJ02-04

4 Ω
6.5″ Woofer
fS71.3 Hz
SD141 cm²
50 - 4000 Hz
QTS0.45
xmax2.7 mm
SPL1W88.8 dB
Bl/√RE3.3
Pmax60 W
MONACOR SP-6/150PA Mid-range

MONACOR SP-6/150PA

8 Ω
6.5″ Mid-range
fS73 Hz
SD139 cm²
73 - 6000 Hz
QTS0.42
xmax1 mm
SPL1W90.2 dB
Bl/√RE3.88
Pmax300 W
MONACOR SP-167E Mid-range

MONACOR SP-167E

4 Ω
6.5″ Mid-range
fS62 Hz
SD135 cm²
62 - 6000 Hz
QTS0.41
xmax2.5 mm
SPL1W90.9 dB
Bl/√RE2.75
Pmax70 W
LaVoce WAF061.80 Woofer

LaVoce WAF061.80

8 Ω
6.5″ Woofer
fS65 Hz
SD132 cm²
65 - 5000 Hz
QTS0.42
xmax4.9 mm
SPL1W88.4 dB
Bl/√RE4.36
Pmax300 W
Fane FC65175-1 Mid Bass

Fane FC65175-1

8 Ω
6.5″ Mid Bass
fS63 Hz
SD135 cm²
75 - 6000 Hz
QTS0.45
xmax5 mm
SPL1W90.2 dB
Bl/√RE3.69
Pmax300 W
Discontinued

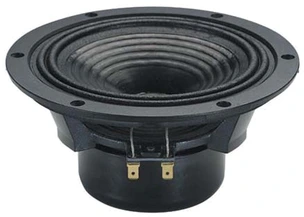

Ciare HX160

Ciare HX160

8 Ω
6.5″ 
fS70.2 Hz
SD135 cm²
QTS0.42
xmax1.8 mm
SPL1W93.3 dB
Bl/√RE2.83
Pmax90 W
Ciare CMI160ND Mid Bass

Ciare CMI160ND

4 Ω
6.5″ Mid Bass
fS73 Hz
SD137 cm²
70 - 4000 Hz
QTS0.41
xmax4.5 mm
SPL1W89.2 dB
Bl/√RE4.58
Pmax450 W
Ciare CMI160 Mid Bass

Ciare CMI160

4 Ω
6.5″ Mid Bass
fS70 Hz
SD137 cm²
70 - 4000 Hz
QTS0.41
xmax4.5 mm
SPL1W89.2 dB
Bl/√RE4.23
Pmax450 W
B&C Speaker 6NDL38 Woofer

B&C Speaker 6NDL38

8 Ω
6.5″ Woofer
fS72 Hz
SD132 cm²
70 - 6000 Hz
QTS0.42
xmax6 mm
SPL1W89.5 dB
Bl/√RE4.17
Pmax300 W
B&C Speaker 6NDL38 Woofer

B&C Speaker 6NDL38

4 Ω
6.5″ Woofer
fS69 Hz
SD132 cm²
70 - 5000 Hz
QTS0.39
xmax6 mm
SPL1W89.6 dB
Bl/√RE4.43
Pmax300 W
