ATOHM LD230TDR04

4Ω
8Ω8Ω M

Subwoofer

Nominal diameter10″ / 230 mm
Resonance38.6 Hz
Q factor0.31
Sensitivity87.1 dB
Linear excursion± 13 mm
Program Power300 W

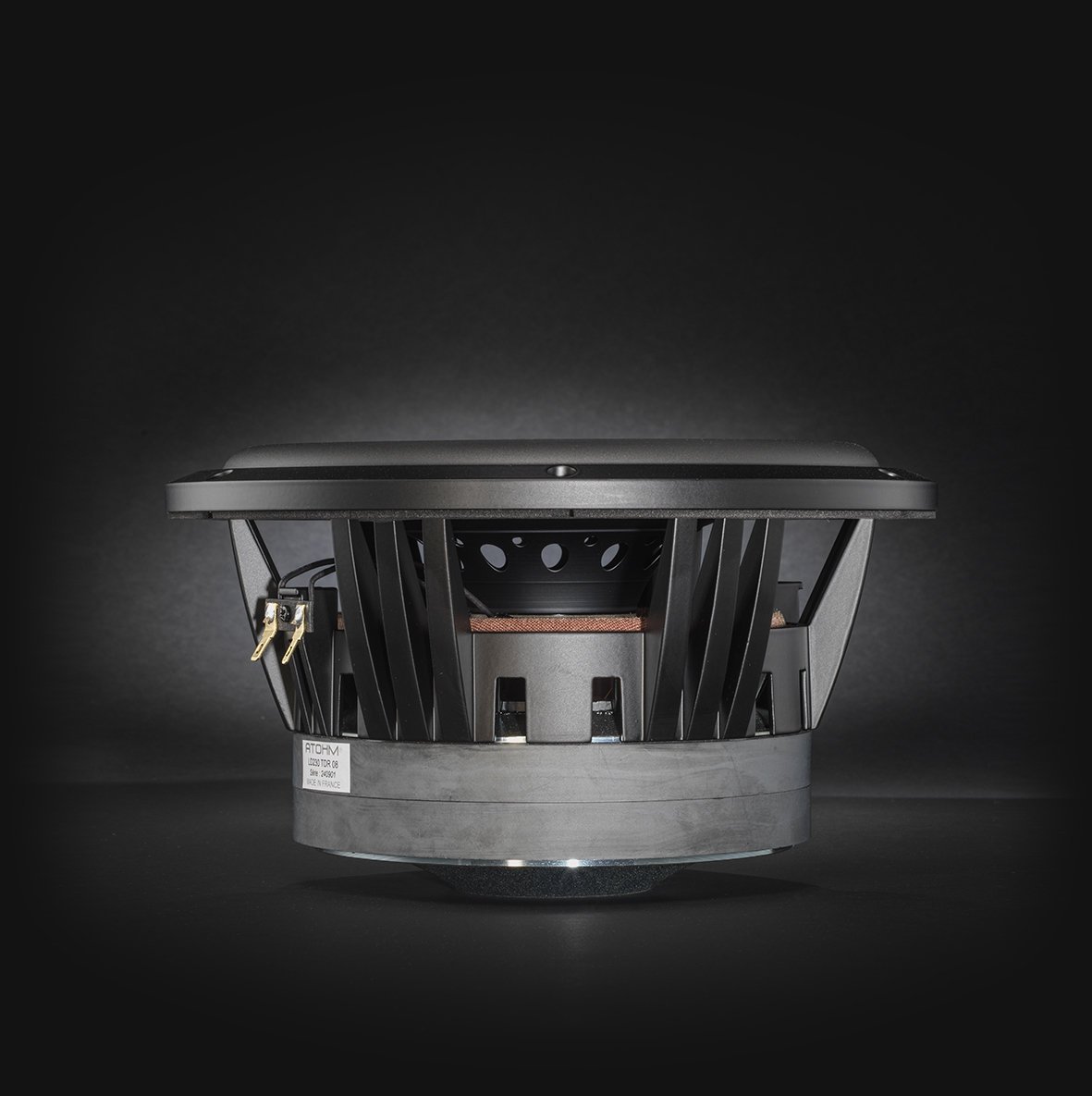

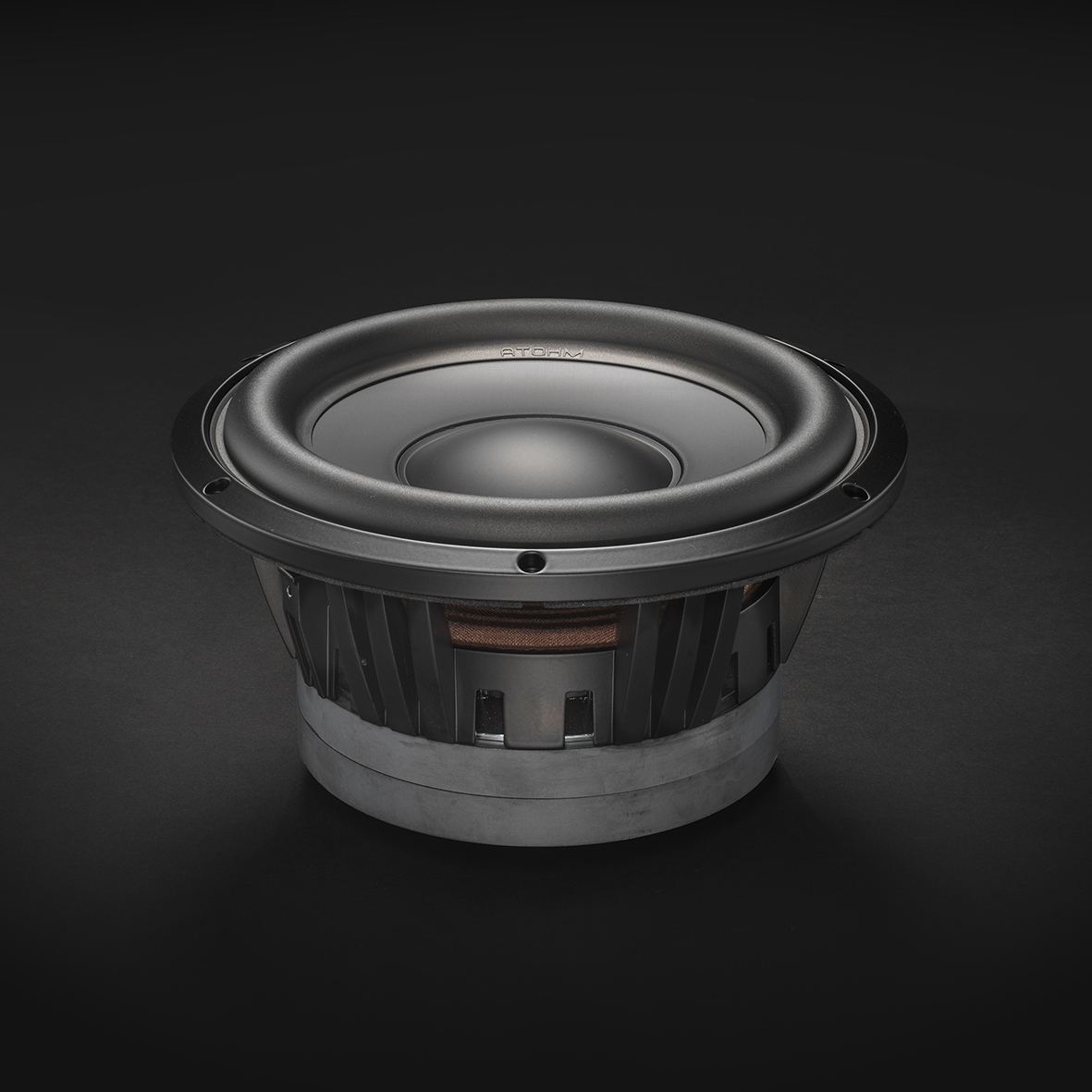

ATOHM LD230TDR04 SubwooferATOHM LD230TDR04 Subwoofer
Impedance
Excursion
Velocity
SPL
Phase
Group delay
Step response
Tone Burst
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 87.1dB
  • Frequency response 39 - 400Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 38.6Hz
  • Mechanical quality factor QMS 3.42
  • Electrical quality factor QES 0.34
  • Total quality factor QTS 0.31

Large signal parameters

  • Maximum linear excursion xmax 13mm
  • Maximum excursion before damage xlim 20mm
  • Air volume displaced at xmax VD 312cm³
  • Power handling P 150W
  • Program power Pmax 300W
  • Peak power Ppeak 700W

Voice Coil

  • Nominal impedance Z 4Ω
  • DC resistance RE 3.0Ω
  • Inductance (1kHz) LE 0.47mH
  • VC Diameter 50mm
  • Winding height HVC 32mm
  • Former material Aluminum

Magnet

  • Flux density B 1.2T
  • Force factor Bl 12.1N/A
  • Motor constant Bl/√RE 6.99N/√W
  • Air gap height HAG 6mm
  • Diameter 156mm
  • Height 32mm
  • Material Ferrite

Diaphragm

  • Effective diameter 175mm
  • Effective area SD 240cm²
  • Moving mass MMS 68.1g
  • Moving mass (without air load) MMD 65.3g

Suspensions

  • Stiffness KMS 3.85N/mm
  • Compliance CMS 260µm/N
  • Equivalent volume to the compliance VAS 21L
  • Mechanical resistance RMS 4.83N·s/m

Dimensions

  • Nominal diameter 10″
  • 230mm
  • Overall diameter 230mm
  • Baffle cutout diameter 194mm
  • Overall depth 122mm
  • Flange thickness 9mm
  • Mounting depth 113mm
  • Volume occupied by the driver (estimated) 1.9L
  • Net weight 5.6kg
SPL & Impedance
Force factor
Inductance
Stiffness

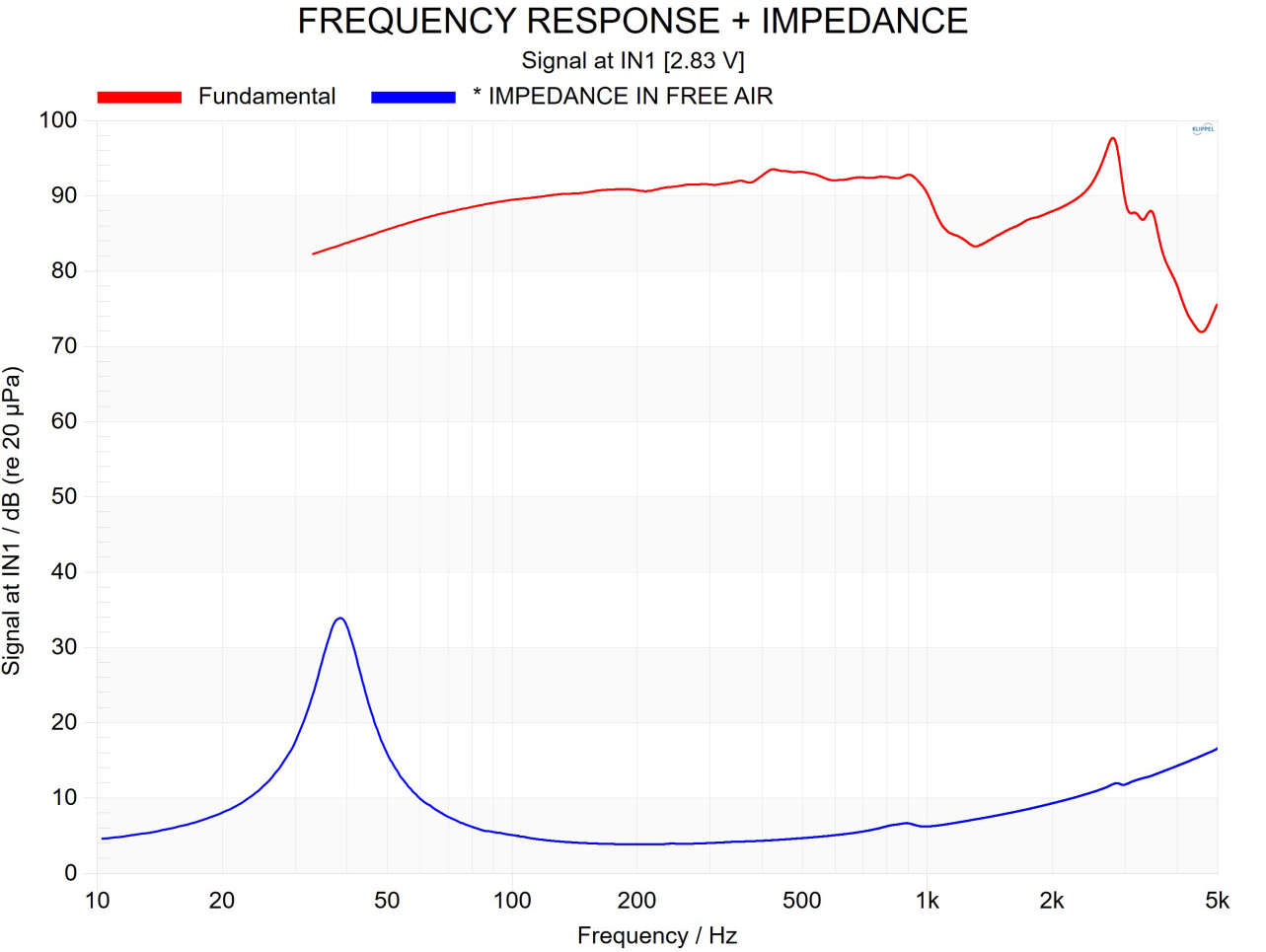

ATOHM LD230TDR04 SPL & Impedance

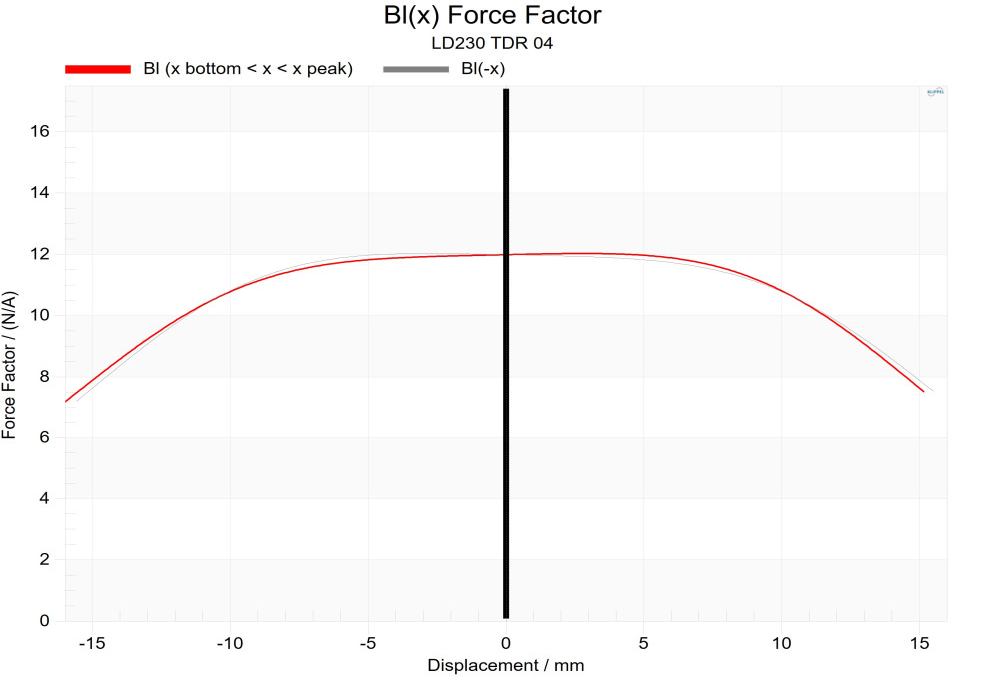

ATOHM LD230TDR04 Force factor

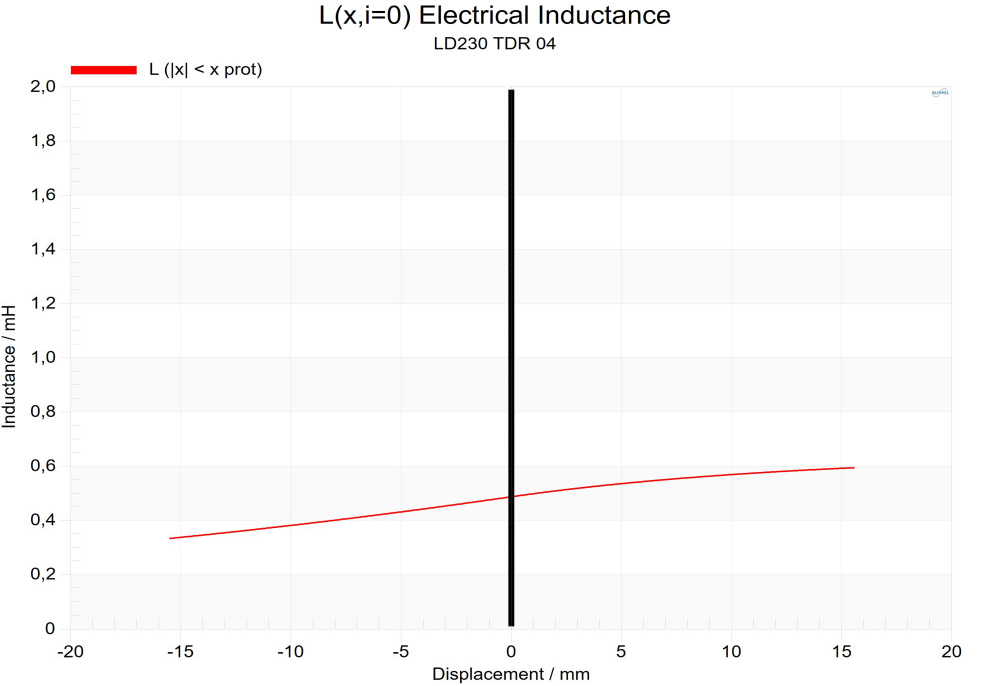

ATOHM LD230TDR04 Inductance

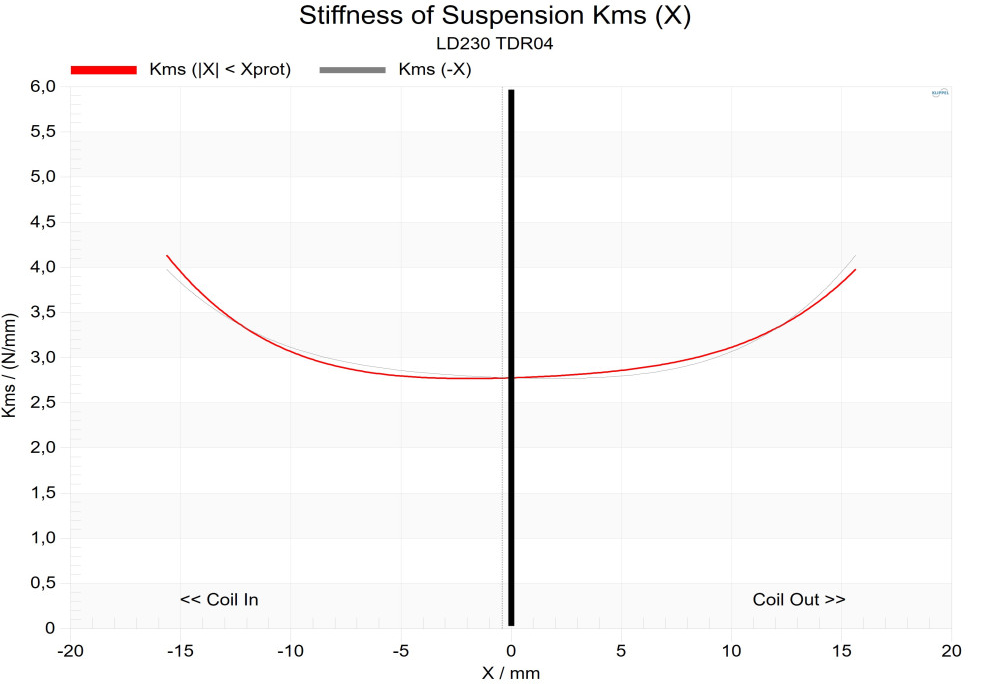

ATOHM LD230TDR04 Stiffness

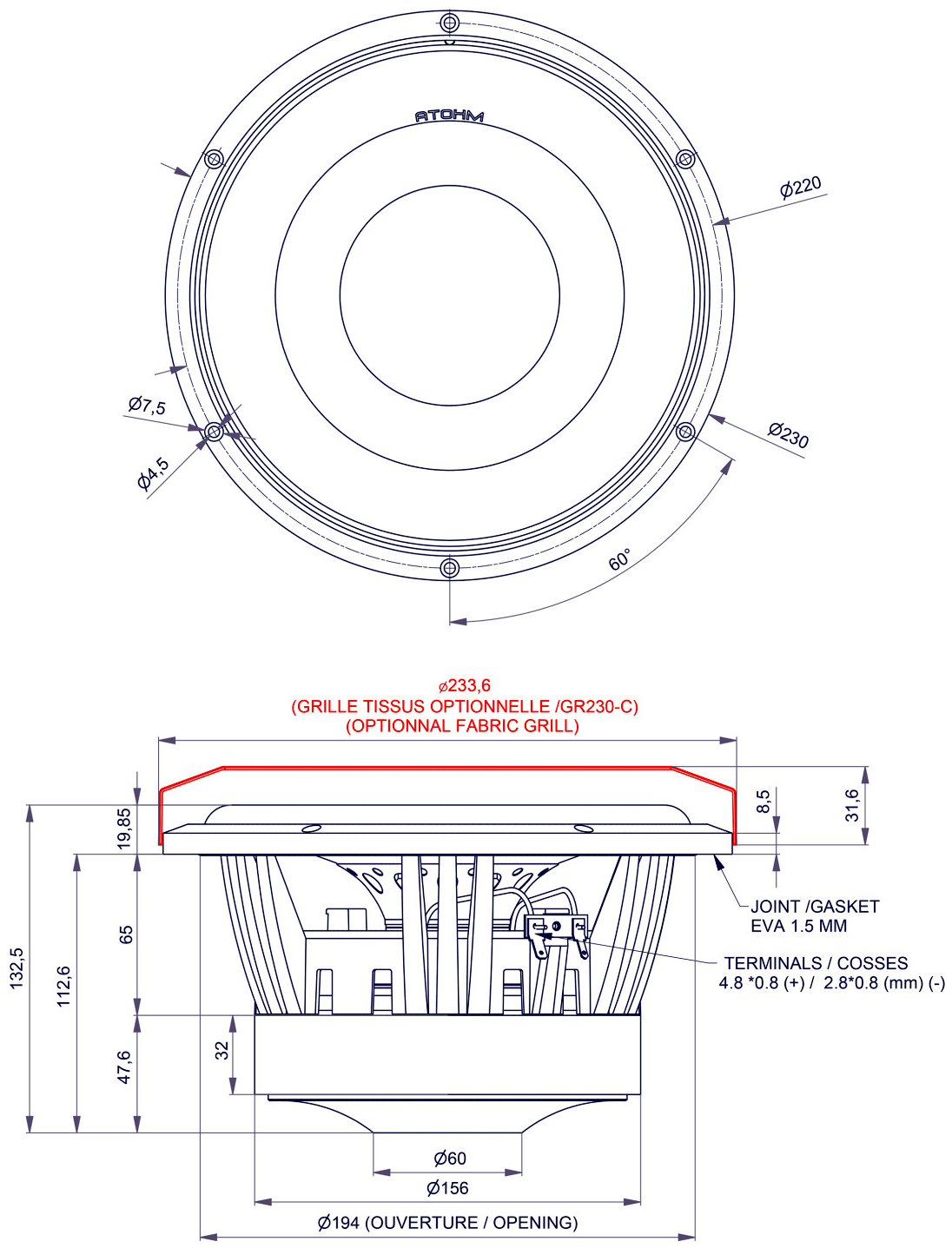

ATOHM LD230TDR04 Dimensions
PDF fileDatasheet

Export this driver to a simulation software:
