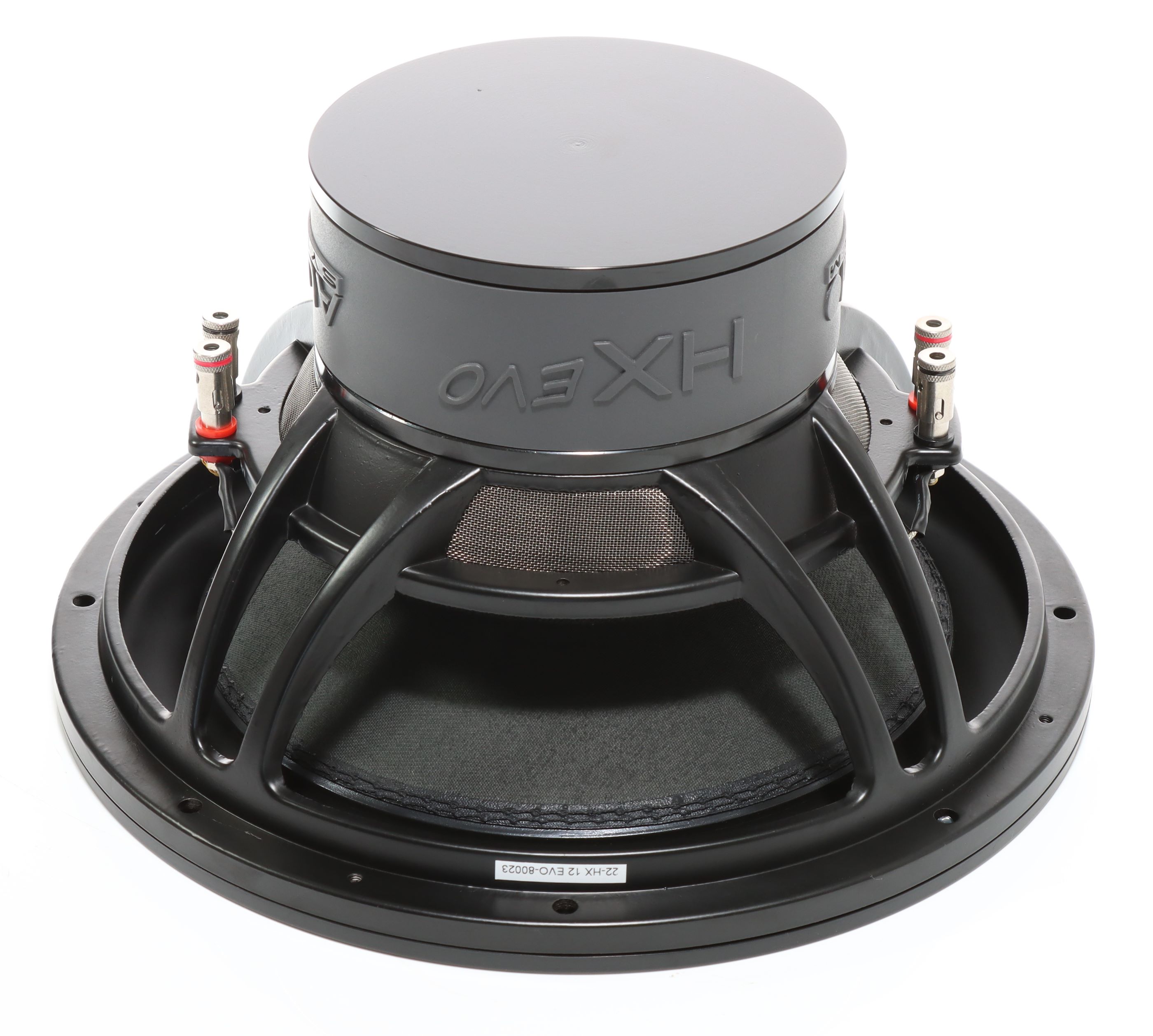

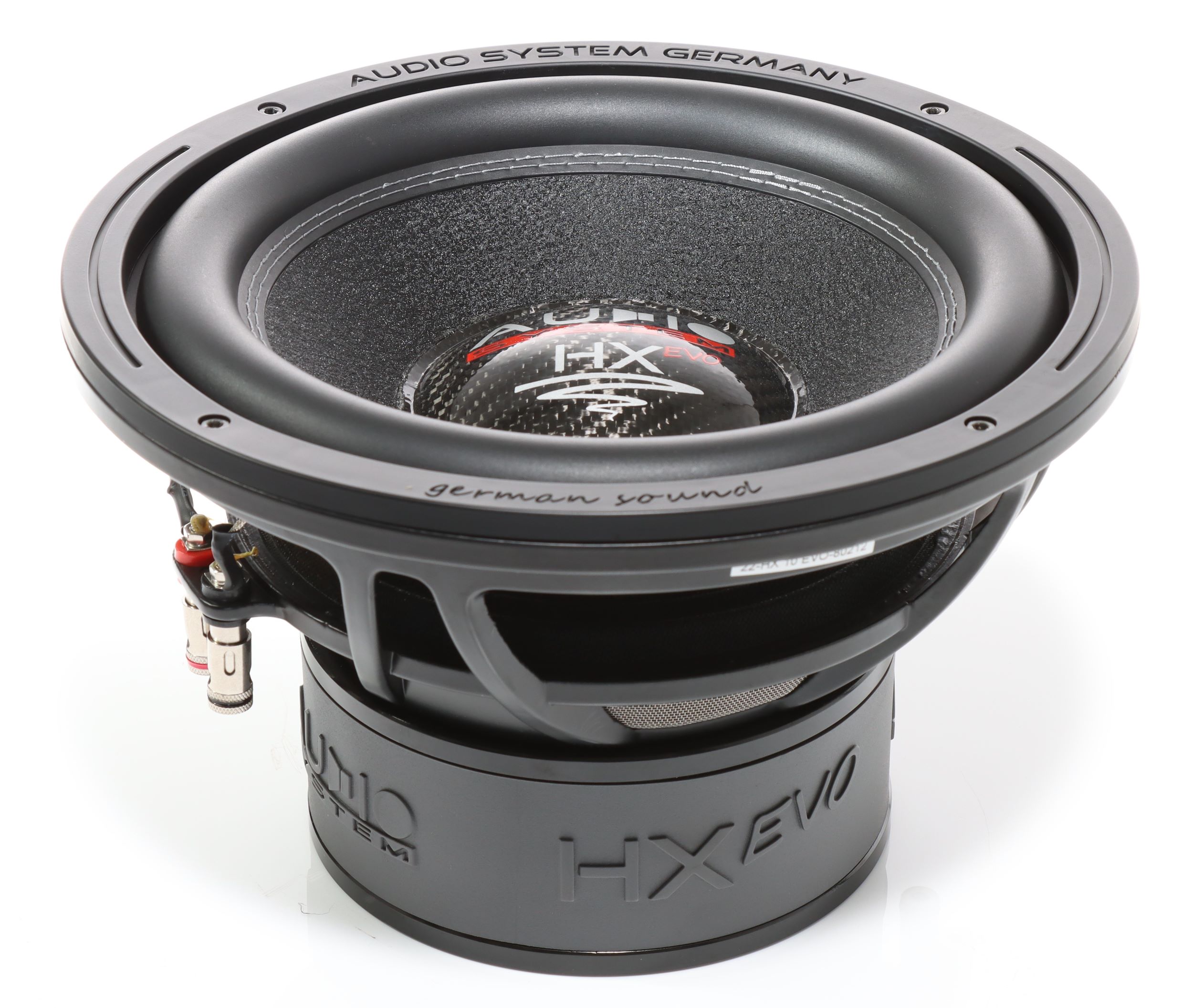

Audio System HX 10 EVO
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 259 mm |
| Resonance | 35 Hz |
| Q factor | 0.50 |
| Sensitivity | 83.9 dB |
| Linear excursion | ± 5 mm |
| Program Power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.9dB
- Frequency response 22 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 4.54
- Electrical quality factor QES 0.56
- Total quality factor QTS 0.50
Large signal parameters
- Maximum linear excursion (one way) xmax 5mm
- Air volume displaced at xmax VD 138cm³
- Power handling P 400W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.2Ω
- Inductance (1kHz, in series, estimated) LE 1.97mH
- VC Diameter 54mm
- Former material Kapton
Magnet
- Force factor (in series) Bl 12N/A
- Motor constant Bl/√RE 5.86N/√W
- Diameter 156mm
Diaphragm
- Effective diameter 187mm
- Effective area SD 275cm²
- Moving mass MMS 98g
- Moving mass (without air load) MMD 94.4g
- Material HPPC-Papier (HPPC Cone)
Suspensions
- Stiffness KMS 4.22N/mm
- Compliance CMS 237µm/N
- Equivalent volume to the compliance VAS 35L
- Mechanical resistance RMS 4.75N·s/m
- Surround material Elastomer
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 259mm
- Overall diameter 259mm
- Baffle cutout diameter 238mm
- Overall depth 162mm
- Flange thickness 15mm
- Mounting depth 147mm
- Volume occupied by the driver (estimated) 3.1L
- Net weight 8.0kg
- Frame material Druckguss (Die-Cast)
