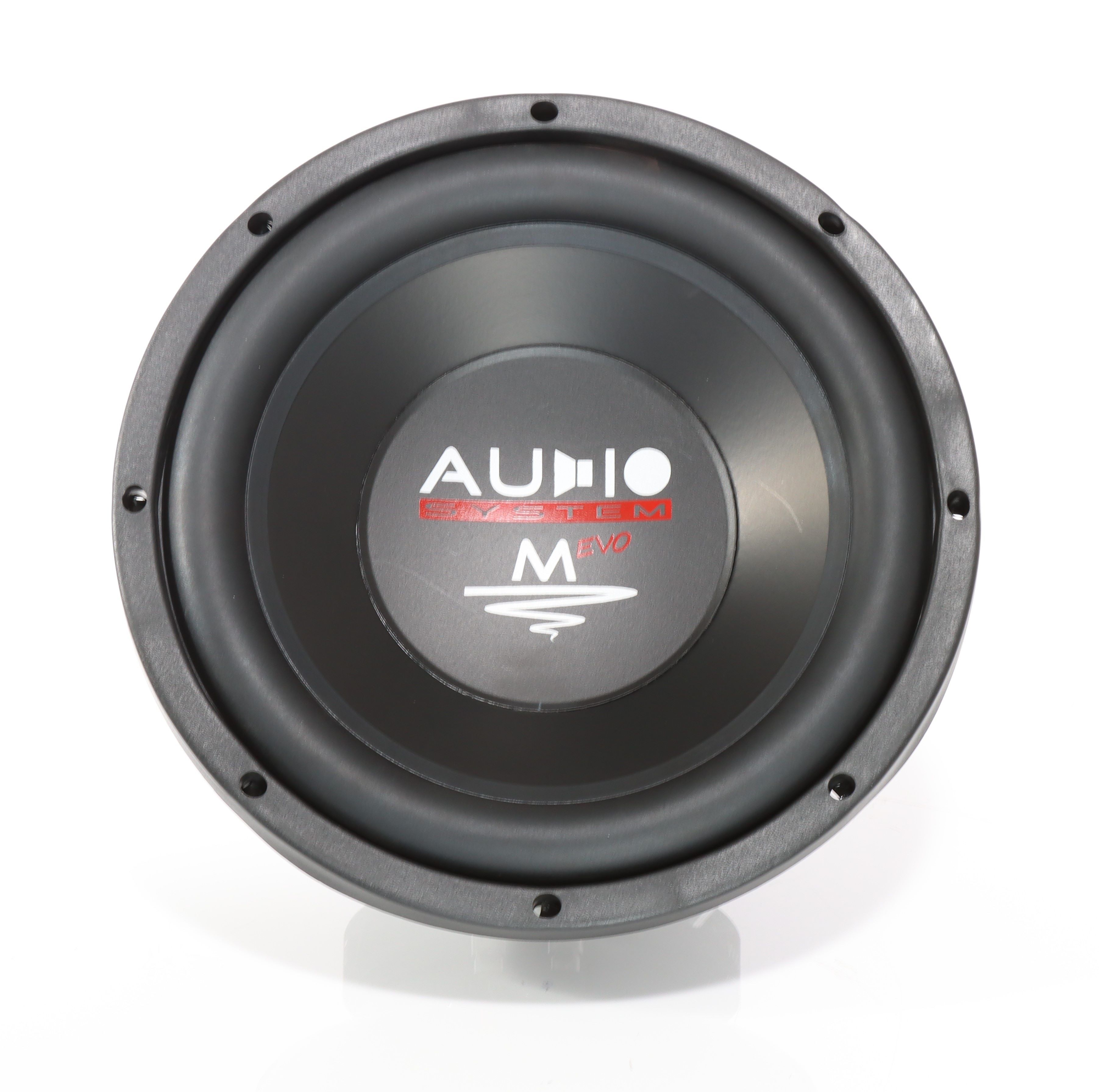

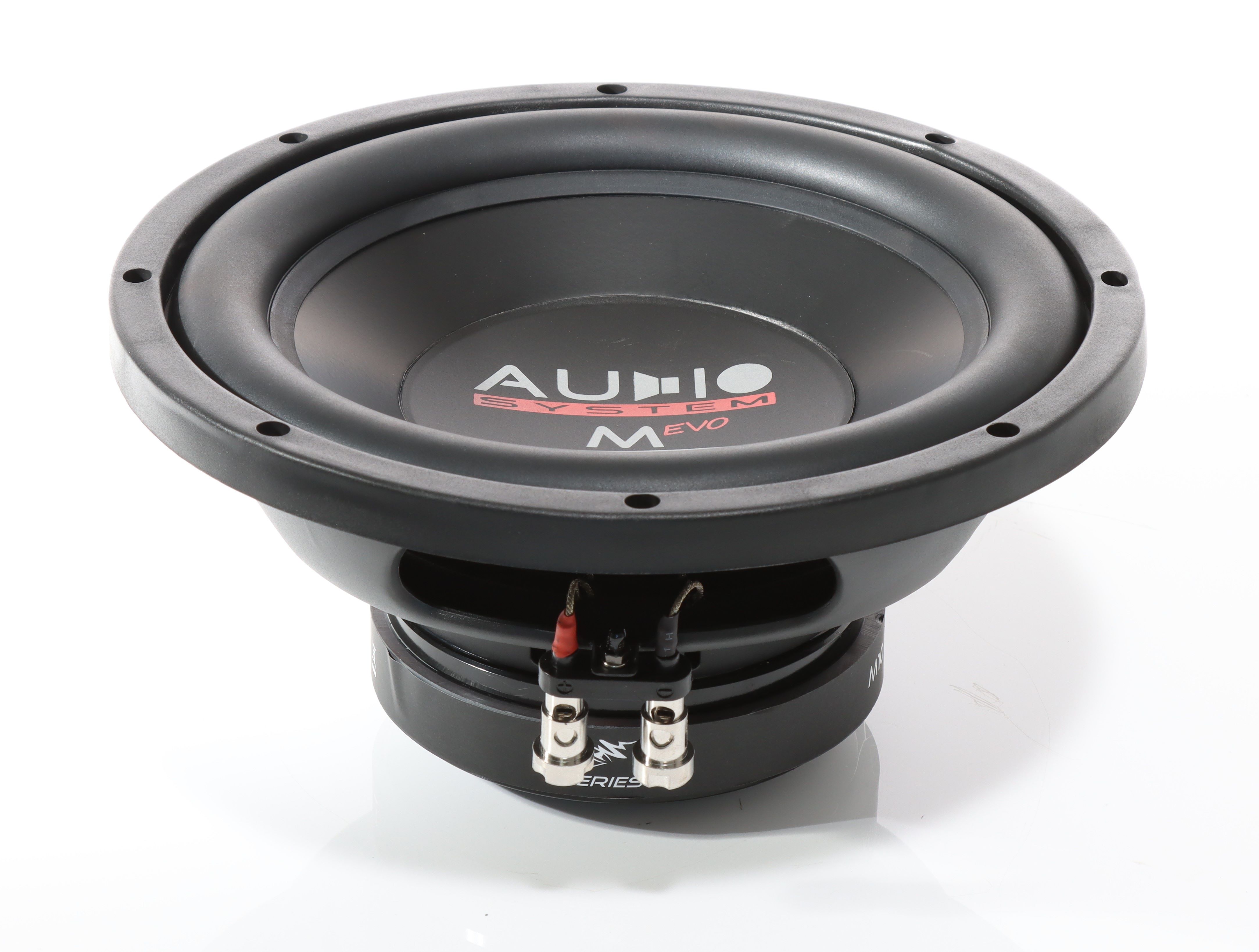

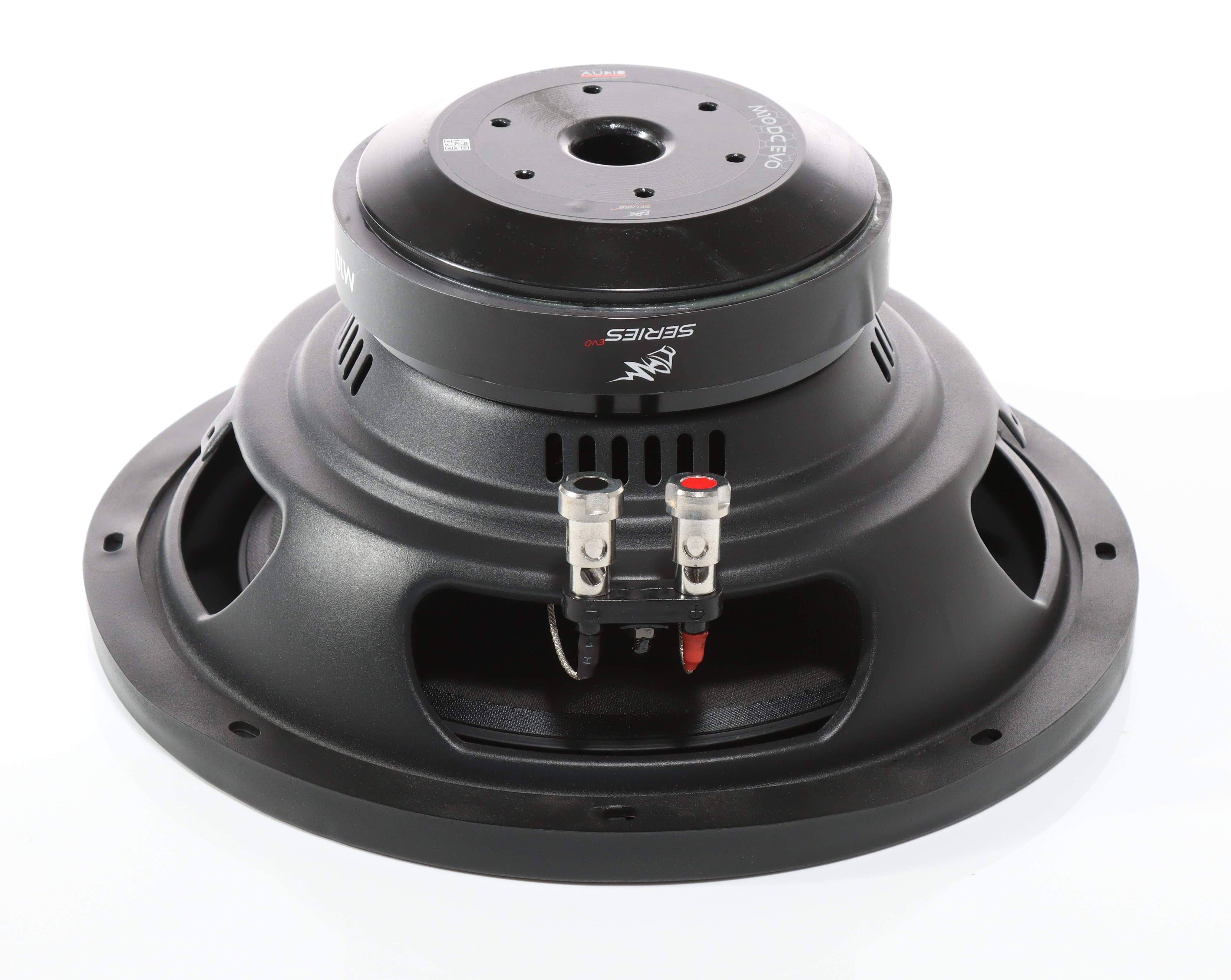

Audio System M 10 EVO2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 263 mm |
| Resonance | 35.8 Hz |
| Q factor | 0.45 |
| Sensitivity | 86.3 dB |
| Linear excursion | ± 7.5 mm |
| Program Power | 400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.3dB
- Frequency response 38 - 120Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35.8Hz
- Mechanical quality factor QMS 4.47
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion (one way) xmax 7.5mm
- Air volume displaced at xmax VD 259cm³
- Power handling P 300W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 1.85mH
- VC Diameter 51mm
- Former material Aluminum
Magnet
- Force factor (in series) Bl 13.5N/A
- Motor constant Bl/√RE 7.12N/√W
- Diameter 134mm
Diaphragm
- Effective diameter 210mm
- Effective area SD 345cm²
- Moving mass MMS 112g
- Moving mass (without air load) MMD 107g
- Material KPC Paper
Suspensions
- Stiffness KMS 5.59N/mm
- Compliance CMS 179µm/N
- Equivalent volume to the compliance VAS 25.3L
- Mechanical resistance RMS 5.64N·s/m
- Surround material Elastane
- Spider material PPTA Connex
Dimensions
- Nominal diameter 10″
- 263mm
- Overall diameter 263mm
- Baffle cutout diameter 227mm
- Overall depth 128mm
- Flange thickness 16mm
- Mounting depth 112mm
- Volume occupied by the driver (estimated) 1.7L
- Net weight 3.8kg
- Frame material Steel
