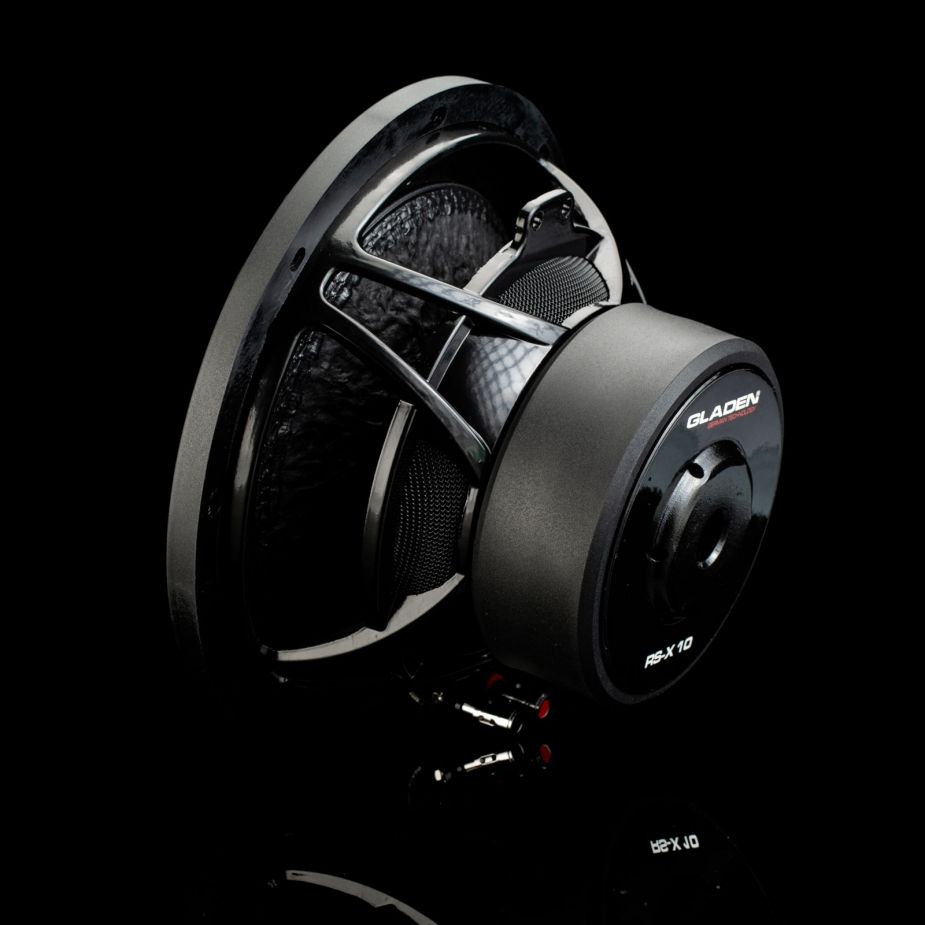

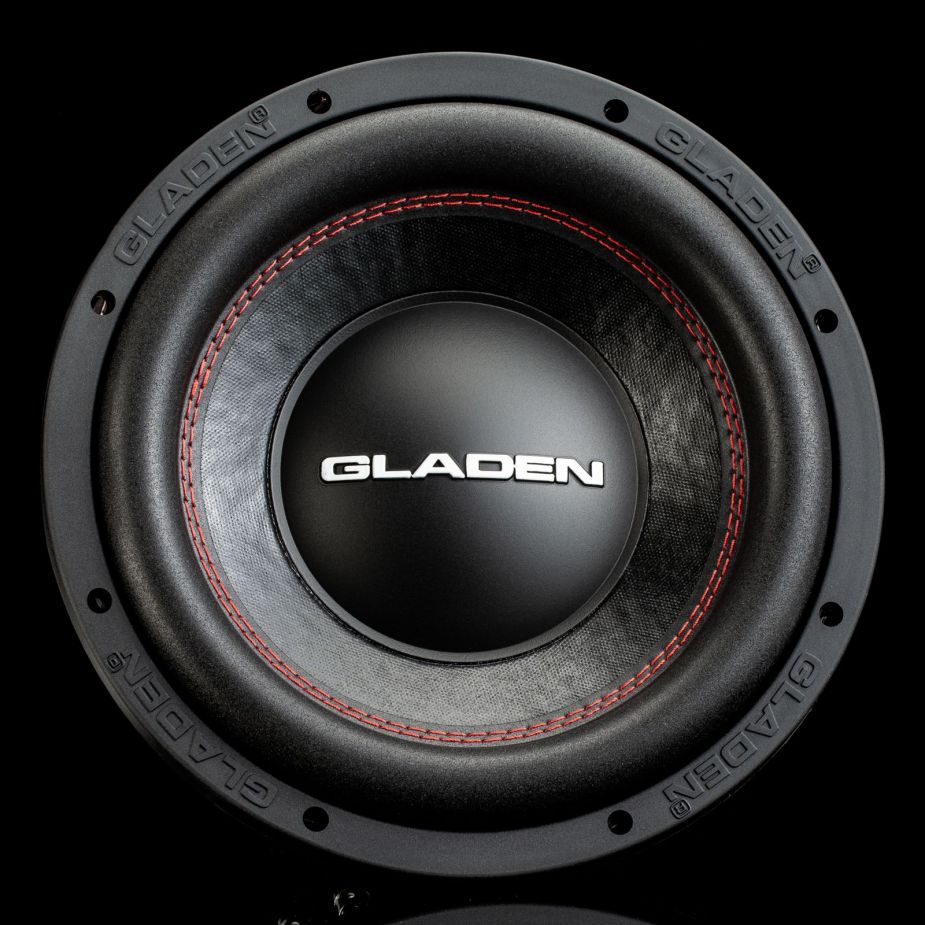

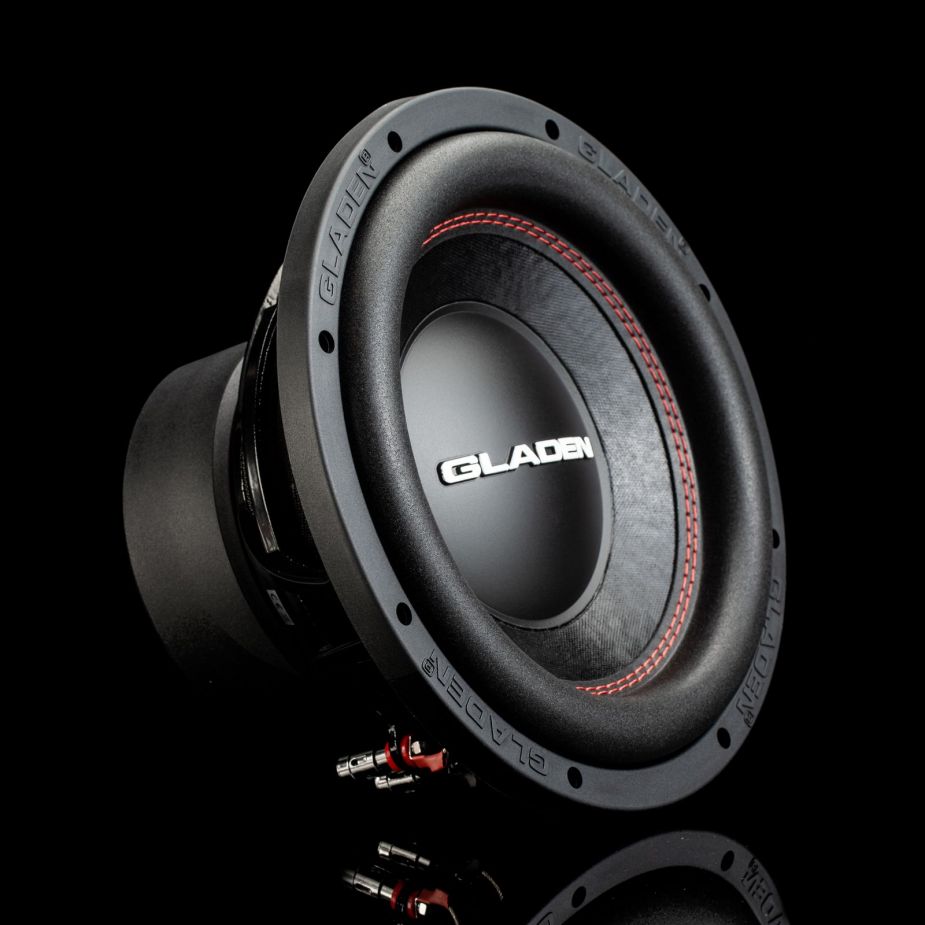

GLADEN RS-X 10
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 35.6 Hz |
| Q factor | 0.46 |
| Sensitivity | 85.8 dB |
| Program power | 450 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35.6Hz
- Mechanical quality factor QMS 6.16
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.46
Large signal parameters
- Power handling P 300W
- Program power Pmax 450W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.7Ω
- Inductance (1kHz, estimated) LE 2.03mH
- VC Diameter 63.5mm
- Former material Aluminium
Magnet
- Force factor Bl 13.8N/A
- Motor constant Bl/√RE 7.15N/√W
- Diameter 162mm
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass (including air load) MMS 122g
- Moving mass MMD 117g
- Material Paper
Suspensions
- Stiffness KMS 6.25N/mm
- Compliance CMS 160µm/N
- Equivalent volume to the compliance VAS 27.7L
- Mechanical resistance RMS 4.79N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 263mm
- Baffle cutout diameter 238mm
- Mounting depth 140mm
- Volume occupied by the driver (estimated) 1.7L
- Frame material Aluminium
