59 results
Brand
ATOHMAcoustic EleganceAudesAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraCT SoundsCelestionCerwin VegaCiareD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGRSGoldwoodHELIXHertzJL AudioJensenKICKERKICXKartesianLaVoceLowtherMATCHMD LabMONACORMTX AudioMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRadianReckhornRockford FosgateSB AcousticsSEASSICASUPRAVOXScan-SpeakSkar AudioTang BandVISATONVOLTWVLWavecoraccutonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
BMS 8S219 Woofer

BMS 8S219

8 Ω
8″ Woofer
fS82 Hz
SD222 cm²
80 - 3000 Hz
QTS0.41
xmax6.3 mm
SPL1W92.4 dB
Bl/√RE5.52
Pmax500 W
BMS 8S215 Woofer

BMS 8S215

8 Ω
8″ Woofer
fS87.7 Hz
SD222 cm²
80 - 3000 Hz
QTS0.31
xmax4.3 mm
SPL1W95.9 dB
Bl/√RE5.85
Pmax400 W
BMS 8N519 Woofer

BMS 8N519

8 Ω
8″ Woofer
fS74.9 Hz
SD222 cm²
80 - 3000 Hz
QTS0.37
xmax6.3 mm
SPL1W92.3 dB
Bl/√RE5.73
Pmax500 W
BMS 8N515 Woofer

BMS 8N515

8 Ω
8″ Woofer
fS87.7 Hz
SD222 cm²
80 - 3000 Hz
QTS0.30
xmax4 mm
SPL1W95.5 dB
Bl/√RE5.94
Pmax400 W
BMS 8CN552 Coaxial

BMS 8CN552

8 Ω
8″ Coaxial
fS87.6 Hz
SD200 cm²
70 - 3000 Hz
QTS0.29
xmax4 mm
SPL1W96 dB
Bl/√RE5.78
Pmax400 W
BMS 8C250 Coaxial

BMS 8C250

8 Ω
8″ Coaxial
fS79.1 Hz
SD201 cm²
70 - 3000 Hz
QTS0.52
xmax4.3 mm
SPL1W92.5 dB
Bl/√RE4.28
Pmax400 W
BMS 6S117 Woofer

BMS 6S117

16 Ω
6.5″ Woofer
fS80 Hz
SD143 cm²
80 - 3500 Hz
QTS0.43
xmax5 mm
SPL1W91.8 dB
Bl/√RE3.35
Pmax260 W
BMS 6N160 Woofer

BMS 6N160

16 Ω
6.5″ Woofer
fS89 Hz
SD143 cm²
80 - 3500 Hz
QTS0.47
xmax5 mm
SPL1W91.4 dB
Bl/√RE3.35
Pmax260 W
BMS 6CN160 Coaxial

BMS 6CN160

8 Ω
6.5″ Coaxial
fS79 Hz
SD132 cm²
80 - 20000 Hz
QTS0.34
xmax5 mm
SPL1W92.2 dB
Bl/√RE3.82
Pmax260 W
BMS 6C150 Coaxial

BMS 6C150

16 Ω
6.5″ Coaxial
fS88.3 Hz
SD132 cm²
80 - 20000 Hz
QTS0.46
xmax5 mm
SPL1W91.9 dB
Bl/√RE3.29
Pmax260 W
BMS 5S117 Mid-range

BMS 5S117

16 Ω
5″ Mid-range
fS95 Hz
SD85 cm²
80 - 4000 Hz
QTS0.42
xmax5 mm
SPL1W89.3 dB
Bl/√RE3.35
Pmax260 W
BMS 5N160 Mid-range

BMS 5N160

16 Ω
5″ Mid-range
fS113 Hz
SD85 cm²
80 - 4000 Hz
QTS0.43
xmax5 mm
SPL1W89.9 dB
Bl/√RE3.35
Pmax260 W
Discontinued

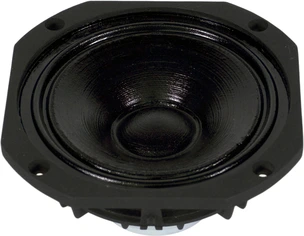

BMS 5N155 Mid-range

BMS 5N155

16 Ω
5″ Mid-range
fS101 Hz
SD85 cm²
80 - 4000 Hz
QTS0.44
xmax5 mm
SPL1W89.2 dB
Bl/√RE3.52
Pmax260 W
BMS 5CN162 Coaxial

BMS 5CN162

8 Ω
5″ Coaxial
fS107 Hz
SD75 cm²
80 - 20000 Hz
QTS0.35
xmax5 mm
SPL1W89.4 dB
Bl/√RE4.12
Pmax260 W
BMS 5CN160 Coaxial

BMS 5CN160

8 Ω
5″ Coaxial
fS100 Hz
SD75 cm²
80 - 20000 Hz
QTS0.36
xmax5 mm
SPL1W89.3 dB
Bl/√RE3.82
Pmax260 W
BMS 5CN140 Coaxial

BMS 5CN140

16 Ω
5″ Coaxial
fS138 Hz
SD74 cm²
80 - 4000 Hz
QTS0.69
xmax3.5 mm
SPL1W87.5 dB
Bl/√RE3.06
Pmax240 W
BMS 5C150 Coaxial

BMS 5C150

16 Ω
5″ Coaxial
fS99.4 Hz
SD75 cm²
80 - 20000 Hz
QTS0.43
xmax5 mm
SPL1W89.1 dB
Bl/√RE3.3
Pmax260 W
BMS 18S450 Subwoofer

BMS 18S450

8 Ω
18″ Subwoofer
fS29 Hz
SD1213 cm²
20 - 200 Hz
QTS0.31
xmax12 mm
SPL1W94.7 dB
Bl/√RE11.3
Pmax2400 W
BMS 18S430v² Subwoofer

BMS 18S430v²

8 Ω
18″ Subwoofer
fS31 Hz
SD1213 cm²
20 - 200 Hz
QTS0.34
xmax8 mm
SPL1W94.9 dB
Bl/√RE10.7
Pmax2400 W
BMS 18N862 Subwoofer

BMS 18N862

8 Ω
18″ Subwoofer
fS25.1 Hz
SD1219 cm²
20 - 200 Hz
QTS0.34
xmax19 mm
SPL1W93.1 dB
Bl/√RE10.8
Pmax3000 W
Discontinued

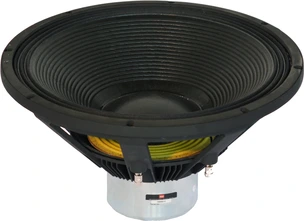

BMS 18N860 Subwoofer

BMS 18N860

8 Ω
18″ Subwoofer
fS24.9 Hz
SD1213 cm²
20 - 200 Hz
QTS0.37
xmax19 mm
SPL1W92.4 dB
Bl/√RE10.4
Pmax3000 W
BMS 18N850v² Subwoofer

BMS 18N850v²

8 Ω
18″ Subwoofer
fS29.8 Hz
SD1213 cm²
20 - 200 Hz
QTS0.33
xmax12 mm
SPL1W94.3 dB
Bl/√RE11.4
Pmax2400 W
Discontinued

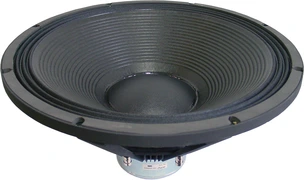

BMS 18N840 Subwoofer

BMS 18N840

8 Ω
18″ Subwoofer
fS30.2 Hz
SD1213 cm²
20 - 200 Hz
QTS0.37
xmax10 mm
SPL1W94 dB
Bl/√RE10.3
Pmax2400 W
BMS 18N830v² Subwoofer

BMS 18N830v²

8 Ω
18″ Subwoofer
fS31 Hz
SD1212 cm²
20 - 200 Hz
QTS0.37
xmax8 mm
SPL1W94.5 dB
Bl/√RE10.2
Pmax2200 W
BMS 15S430v² Subwoofer

BMS 15S430v²

8 Ω
15″ Subwoofer
fS39.8 Hz
SD880 cm²
35 - 2500 Hz
QTS0.28
xmax8 mm
SPL1W96.3 dB
Bl/√RE10.7
Pmax2400 W
Discontinued

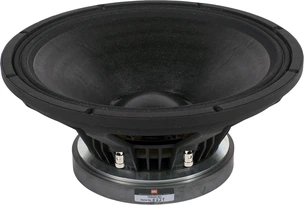

BMS 15S420 Subwoofer

BMS 15S420

8 Ω
15″ Subwoofer
fS39.8 Hz
SD880 cm²
40 - 2500 Hz
QTS0.25
xmax5 mm
SPL1W96.7 dB
Bl/√RE10.5
Pmax1800 W
BMS 15S330 Subwoofer

BMS 15S330

8 Ω
15″ Subwoofer
fS39 Hz
SD880 cm²
35 - 2500 Hz
QTS0.32
xmax8 mm
SPL1W96.1 dB
Bl/√RE9.39
Pmax1200 W
BMS 15S320 Subwoofer

BMS 15S320

8 Ω
15″ Subwoofer
fS41 Hz
SD880 cm²
40 - 2500 Hz
QTS0.28
xmax4.5 mm
SPL1W97.2 dB
Bl/√RE9.76
Pmax1000 W
BMS 15N850v² Subwoofer

BMS 15N850v²

8 Ω
15″ Subwoofer
fS37 Hz
SD845 cm²
20 - 200 Hz
QTS0.33
xmax12 mm
SPL1W93.5 dB
Bl/√RE10.6
Pmax2400 W
BMS 15N840 Subwoofer

BMS 15N840

8 Ω
15″ Subwoofer
fS35.6 Hz
SD845 cm²
22 - 300 Hz
QTS0.30
xmax11 mm
SPL1W95.6 dB
Bl/√RE11
Pmax2400 W
BMS 15N830v² Subwoofer

BMS 15N830v²

8 Ω
15″ Subwoofer
fS37 Hz
SD880 cm²
35 - 1000 Hz
QTS0.27
xmax8 mm
SPL1W95.9 dB
Bl/√RE10.2
Pmax2200 W
BMS 15N820 Subwoofer

BMS 15N820

8 Ω
15″ Subwoofer
fS39.2 Hz
SD880 cm²
40 - 2500 Hz
QTS0.26
xmax4.5 mm
SPL1W97.1 dB
Bl/√RE10.1
Pmax1800 W
BMS 15N630 Subwoofer

BMS 15N630

8 Ω
15″ Subwoofer
fS39 Hz
SD880 cm²
35 - 2500 Hz
QTS0.42
xmax8 mm
SPL1W94.8 dB
Bl/√RE8.08
Pmax1200 W
BMS 15N620 Subwoofer

BMS 15N620

8 Ω
15″ Subwoofer
fS41 Hz
SD880 cm²
35 - 2500 Hz
QTS0.35
xmax5.5 mm
SPL1W96.4 dB
Bl/√RE8.63
Pmax1000 W
BMS 15CN890 Triaxial

BMS 15CN890

8 Ω
15″ Triaxial
fS50 Hz
SD804 cm²
40 - 22000 Hz
QTS0.35
xmax6 mm
SPL1W95.6 dB
Bl/√RE9.88
Pmax2000 W
BMS 15CN860 Triaxial

BMS 15CN860

8 Ω
15″ Triaxial
fS50 Hz
SD804 cm²
40 - 22000 Hz
QTS0.35
xmax6 mm
SPL1W95.6 dB
Bl/√RE9.88
Pmax2000 W
BMS 15CN682 Coaxial

BMS 15CN682

8 Ω
15″ Coaxial
fS40.7 Hz
SD834 cm²
40 - 2000 Hz
QTS0.36
xmax5.5 mm
SPL1W95.1 dB
Bl/√RE8.63
Pmax1000 W
BMS 15CN680 Coaxial

BMS 15CN680

8 Ω
15″ Coaxial
fS40.7 Hz
SD834 cm²
40 - 2000 Hz
QTS0.36
xmax5.5 mm
SPL1W95.1 dB
Bl/√RE8.63
Pmax1000 W
BMS 15C362 Coaxial

BMS 15C362

8 Ω
15″ Coaxial
fS41.5 Hz
SD834 cm²
40 - 20000 Hz
QTS0.28
xmax4.5 mm
SPL1W96.4 dB
Bl/√RE9.72
Pmax1000 W
BMS 15C262 Coaxial

BMS 15C262

8 Ω
15″ Coaxial
fS42.5 Hz
SD834 cm²
40 - 2500 Hz
QTS0.34
xmax2.5 mm
SPL1W95.8 dB
Bl/√RE8.63
Pmax800 W
