137 results
Brand
ATOHMAcoustic EleganceAudesAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraCT SoundsCelestionCerwin VegaCiareD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGRSGoldwoodHELIXHertzJL AudioJensenKICKERKICXKartesianLaVoceLowtherMATCHMD LabMONACORMTX AudioMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRadianReckhornRockford FosgateSB AcousticsSEASSICASUPRAVOXScan-SpeakSkar AudioTang BandVISATONVOLTWVLWavecoraccutonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
Beyma 10MC500Nd Subwoofer

Beyma 10MC500Nd

8 Ω
10″ Subwoofer
fS58 Hz
SD350 cm²
60 - 3500 Hz
QTS0.25
xmax8 mm
SPL1W94.7 dB
Bl/√RE7.97
Pmax1000 W
Beyma 14MLEX1000Nd Subwoofer

Beyma 14MLEX1000Nd

8 Ω
14″ Subwoofer
fS47 Hz
SD707 cm²
50 - 4500 Hz
QTS0.22
xmax11 mm
SPL1W96.5 dB
Bl/√RE11.7
Pmax2000 W
Beyma 12CMV3 Subwoofer

Beyma 12CMV3

8 Ω
12″ Subwoofer
fS52 Hz
SD530 cm²
50 - 6000 Hz
QTS0.55
xmax7 mm
SPL1W94.2 dB
Bl/√RE4.98
Pmax640 W
Beyma 6P200Fe 16Ω Mid Bass

Beyma 6P200Fe 16Ω

16 Ω
6.5″ Mid Bass
fS66 Hz
SD135 cm²
70 - 9000 Hz
QTS0.35
xmax4 mm
SPL1W90.8 dB
Bl/√RE4.32
Pmax400 W
Beyma 18QLEX1600Fe 4Ω Subwoofer

Beyma 18QLEX1600Fe 4Ω

4 Ω
18″ Subwoofer
fS31 Hz
SD1255 cm²
30 - 1200 Hz
QTS0.25
xmax13 mm
SPL1W94.5 dB
Bl/√RE16.2
Pmax3200 W
Beyma 8NMFW Subwoofer

Beyma 8NMFW

8 Ω
8″ Subwoofer
fS37 Hz
SD227 cm²
30 - 2500 Hz
QTS0.34
xmax9 mm
SPL1W87.8 dB
Bl/√RE5.61
Pmax400 W
Beyma 8CFX260Nd Coaxial

Beyma 8CFX260Nd

8 Ω
8″ Coaxial
fS100 Hz
SD220 cm²
100 - 20000 Hz
QTS0.34
xmax6 mm
SPL1W95.6 dB
Bl/√RE5.92
Pmax500 W
Beyma 6NMFW Subwoofer

Beyma 6NMFW

8 Ω
6.5″ Subwoofer
fS40 Hz
SD154 cm²
35 - 3000 Hz
QTS0.33
xmax9 mm
SPL1W85.3 dB
Bl/√RE5.81
Pmax400 W
Beyma 3FR30V2 Full-range

Beyma 3FR30V2

8 Ω
3″ Full-range
fS133 Hz
SD30 cm²
135 - 20000 Hz
QTS0.51
xmax2 mm
SPL1W87 dB
Bl/√RE1.87
Pmax60 W
Beyma 21QLEX1600Fe Subwoofer

Beyma 21QLEX1600Fe

8 Ω
21″ Subwoofer
fS30 Hz
SD1734 cm²
30 - 1000 Hz
QTS0.28
xmax13 mm
SPL1W95.5 dB
Bl/√RE15.7
Pmax3200 W
Beyma 18QLEX1600Fe Subwoofer

Beyma 18QLEX1600Fe

8 Ω
18″ Subwoofer
fS30 Hz
SD1255 cm²
30 - 1000 Hz
QTS0.23
xmax13 mm
SPL1W94.6 dB
Bl/√RE15.8
Pmax3200 W
Beyma 18PWB1000Fe/S Subwoofer

Beyma 18PWB1000Fe/S

8 Ω
18″ Subwoofer
fS27 Hz
SD1255 cm²
30 - 2000 Hz
QTS0.38
xmax12.5 mm
SPL1W93.2 dB
Bl/√RE10.2
Pmax2000 W
Beyma 18PW1400Fe/S Subwoofer

Beyma 18PW1400Fe/S

8 Ω
18″ Subwoofer
fS32 Hz
SD1255 cm²
25 - 1800 Hz
QTS0.27
xmax10 mm
SPL1W95.8 dB
Bl/√RE12.8
Pmax2800 W
Beyma 18P1000Fe V2/S Subwoofer

Beyma 18P1000Fe V2/S

8 Ω
18″ Subwoofer
fS33 Hz
SD1250 cm²
30 - 2000 Hz
QTS0.32
xmax8 mm
SPL1W95.2 dB
Bl/√RE11.8
Pmax2400 W
Beyma 18LX60V2/S Subwoofer

Beyma 18LX60V2/S

8 Ω
18″ Subwoofer
fS35 Hz
SD1320 cm²
25 - 1000 Hz
QTS0.49
xmax8 mm
SPL1W94.3 dB
Bl/√RE9.65
Pmax1400 W
Beyma 18LEX1600Fe Subwoofer

Beyma 18LEX1600Fe

8 Ω
18″ Subwoofer
fS34 Hz
SD1255 cm²
35 - 1000 Hz
QTS0.38
xmax13 mm
SPL1W94.2 dB
Bl/√RE11.7
Pmax3200 W
Beyma 18LEX1200Nd Subwoofer

Beyma 18LEX1200Nd

8 Ω
18″ Subwoofer
fS36 Hz
SD1255 cm²
40 - 1000 Hz
QTS0.34
xmax11 mm
SPL1W95.8 dB
Bl/√RE11.5
Pmax2400 W
Beyma 18LEX1200Fe Subwoofer

Beyma 18LEX1200Fe

8 Ω
18″ Subwoofer
fS32 Hz
SD1255 cm²
40 - 1000 Hz
QTS0.38
xmax11 mm
SPL1W94.8 dB
Bl/√RE10.1
Pmax2400 W
Beyma 18LEX1000Fe Subwoofer

Beyma 18LEX1000Fe

8 Ω
18″ Subwoofer
fS34 Hz
SD1255 cm²
35 - 1000 Hz
QTS0.37
xmax11 mm
SPL1W95 dB
Bl/√RE10.2
Pmax2000 W
Beyma 15QLEX1600Fe Subwoofer

Beyma 15QLEX1600Fe

8 Ω
15″ Subwoofer
fS33 Hz
SD880 cm²
35 - 1000 Hz
QTS0.21
xmax13 mm
SPL1W93.5 dB
Bl/√RE15.5
Pmax3200 W
Beyma 15MCB700 Subwoofer

Beyma 15MCB700

8 Ω
15″ Subwoofer
fS44 Hz
SD880 cm²
45 - 4000 Hz
QTS0.34
xmax7 mm
SPL1W96.9 dB
Bl/√RE8.69
Pmax1400 W
Beyma 15LEX1600Fe Subwoofer

Beyma 15LEX1600Fe

8 Ω
15″ Subwoofer
fS38 Hz
SD880 cm²
40 - 1500 Hz
QTS0.32
xmax13 mm
SPL1W93.8 dB
Bl/√RE11.2
Pmax3200 W
Beyma 15LEX1000Fe Subwoofer

Beyma 15LEX1000Fe

8 Ω
15″ Subwoofer
fS41 Hz
SD880 cm²
40 - 1000 Hz
QTS0.35
xmax11 mm
SPL1W94.6 dB
Bl/√RE9.98
Pmax2000 W
Beyma 12MCB700 Subwoofer

Beyma 12MCB700

8 Ω
12″ Subwoofer
fS51 Hz
SD550 cm²
55 - 4000 Hz
QTS0.27
xmax7 mm
SPL1W95.7 dB
Bl/√RE8.78
Pmax1400 W
Beyma 12LEX1000Fe Subwoofer

Beyma 12LEX1000Fe

8 Ω
12″ Subwoofer
fS49 Hz
SD550 cm²
50 - 1500 Hz
QTS0.29
xmax11 mm
SPL1W92.8 dB
Bl/√RE10.6
Pmax2000 W
Beyma 10NMFS Subwoofer

Beyma 10NMFS

8 Ω
10″ Subwoofer
fS35 Hz
SD370 cm²
30 - 2000 Hz
QTS0.42
xmax14.5 mm
SPL1W88 dB
Bl/√RE6.59
Pmax700 W
Beyma 10MCB700 Mid Bass

Beyma 10MCB700

8 Ω
10″ Mid Bass
fS75 Hz
SD350 cm²
80 - 4000 Hz
QTS0.33
xmax7 mm
SPL1W94 dB
Bl/√RE8.73
Pmax1400 W
Discontinued

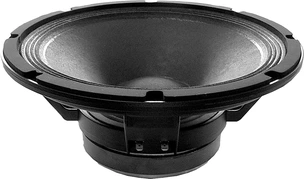

Beyma SM-212 Subwoofer

Beyma SM-212

8 Ω
12″ Subwoofer
fS43 Hz
SD550 cm²
45 - 4000 Hz
QTS0.38
xmax8.3 mm
SPL1W94.5 dB
Bl/√RE6.14
Pmax700 W
Discontinued

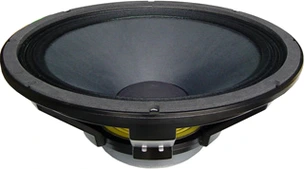

Beyma SM-118/N Woofer

Beyma SM-118/N

8 Ω
18″ Woofer
fS42 Hz
SD1150 cm²
40 - 4000 Hz
QTS0.58
xmax7.3 mm
SPL1W95.2 dB
Bl/√RE7.29
Pmax800 W
Discontinued

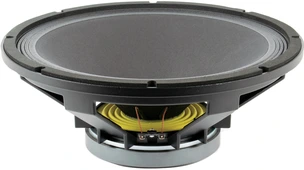

Beyma SM-115N Woofer

Beyma SM-115N

8 Ω
15″ Woofer
fS35 Hz
SD880 cm²
35 - 3000 Hz
QTS0.38
xmax7.3 mm
SPL1W95.5 dB
Bl/√RE6.88
Pmax800 W
Discontinued

Beyma SM-112/N

8 Ω
12″ Woofer
fS40 Hz
SD550 cm²
40 - 4000 Hz
QTS0.30
xmax7.3 mm
SPL1W94.9 dB
Bl/√RE6.83
Pmax800 W
Discontinued

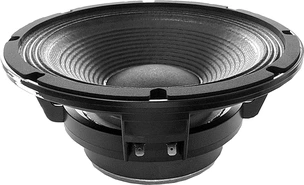

Beyma SM-110/N Woofer

Beyma SM-110/N

8 Ω
10″ Woofer
fS43 Hz
SD355 cm²
45 - 6500 Hz
QTS0.35
xmax4 mm
SPL1W92.7 dB
Bl/√RE5.3
Pmax400 W
Discontinued

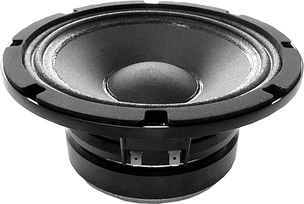

Beyma SM-108 Mid Bass

Beyma SM-108

8 Ω
8″ Mid Bass
fS71 Hz
SD220 cm²
70 - 6000 Hz
QTS0.32
xmax6 mm
SPL1W93.2 dB
Bl/√RE5.62
Pmax300 W
Discontinued

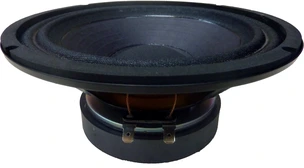

Beyma CM-8/B Woofer

Beyma CM-8/B

8 Ω
8″ Woofer
fS73 Hz
SD220 cm²
40 - 5000 Hz
QTS0.62
xmax6.7 mm
SPL1W91.3 dB
Bl/√RE3.94
Pmax200 W
Discontinued

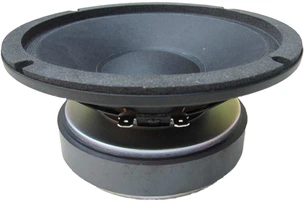

Beyma CM-6 Mid-range

Beyma CM-6

8 Ω
6.5″ Mid-range
fS138 Hz
SD140 cm²
150 - 6000 Hz
QTS0.93
xmax2.5 mm
SPL1W90.6 dB
Bl/√RE3.31
Pmax160 W
Discontinued

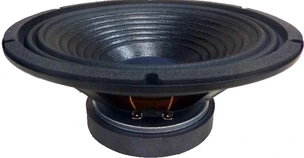

Beyma CM-10 Woofer

Beyma CM-10

8 Ω
10″ Woofer
fS61 Hz
SD390 cm²
40 - 5000 Hz
QTS0.51
xmax6.5 mm
SPL1W93.5 dB
Bl/√RE4.92
Pmax250 W
Beyma 8WRS300 Woofer

Beyma 8WRS300

8 Ω
8″ Woofer
fS69 Hz
SD220 cm²
70 - 4000 Hz
QTS0.30
xmax6 mm
SPL1W92.9 dB
Bl/√RE6.38
Pmax600 W
Discontinued

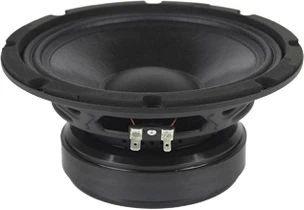

Beyma 8WRS250 Woofer

Beyma 8WRS250

8 Ω
8″ Woofer
fS68 Hz
SD220 cm²
70 - 4000 Hz
QTS0.27
xmax6 mm
SPL1W92.9 dB
Bl/√RE6.38
Pmax500 W
Beyma 8WR300 Woofer

Beyma 8WR300

8 Ω
8″ Woofer
fS65 Hz
SD220 cm²
65 - 4000 Hz
QTS0.28
xmax6 mm
SPL1W93 dB
Bl/√RE6.33
Pmax600 W
Discontinued

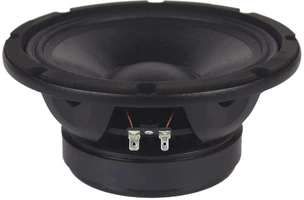

Beyma 8WR250 Woofer

Beyma 8WR250

8 Ω
8″ Woofer
fS62 Hz
SD220 cm²
65 - 4000 Hz
QTS0.24
xmax6 mm
SPL1W93.3 dB
Bl/√RE6.22
Pmax500 W
