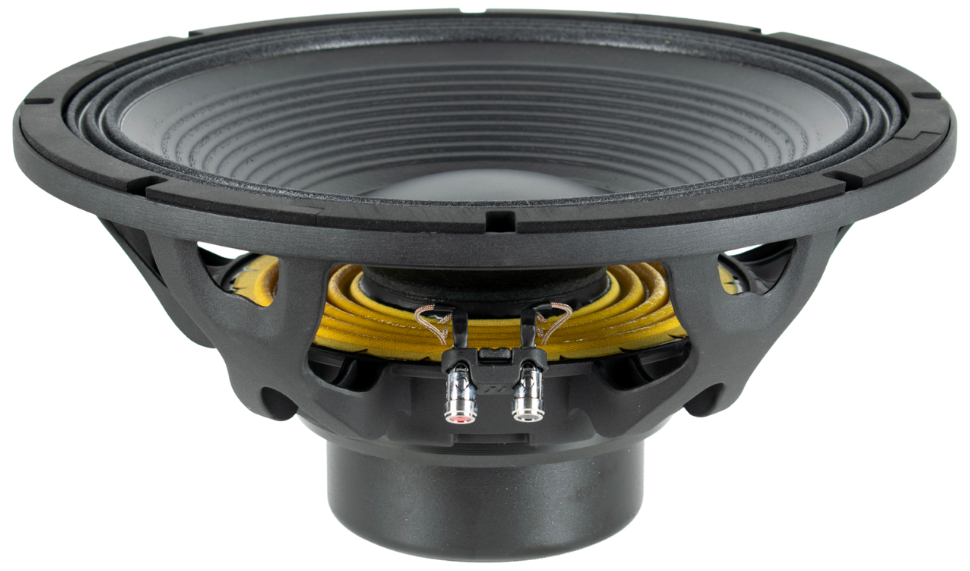

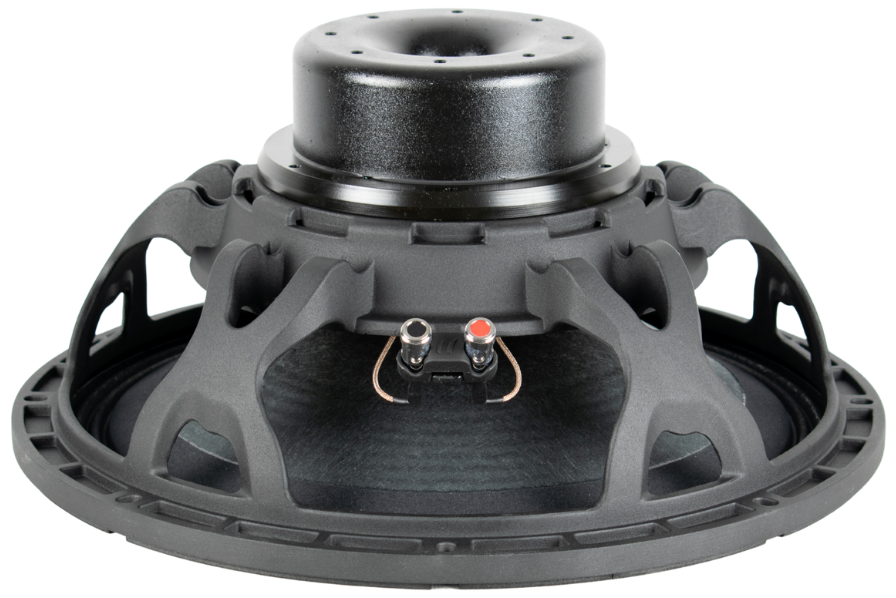

Beyma 15LEX1200Nd
8Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 36 Hz |
| Q factor | 0.30 |
| Sensitivity | 94.8 dB |
| Linear excursion | ± 11 mm |
| Program Power | 2400 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.8dB

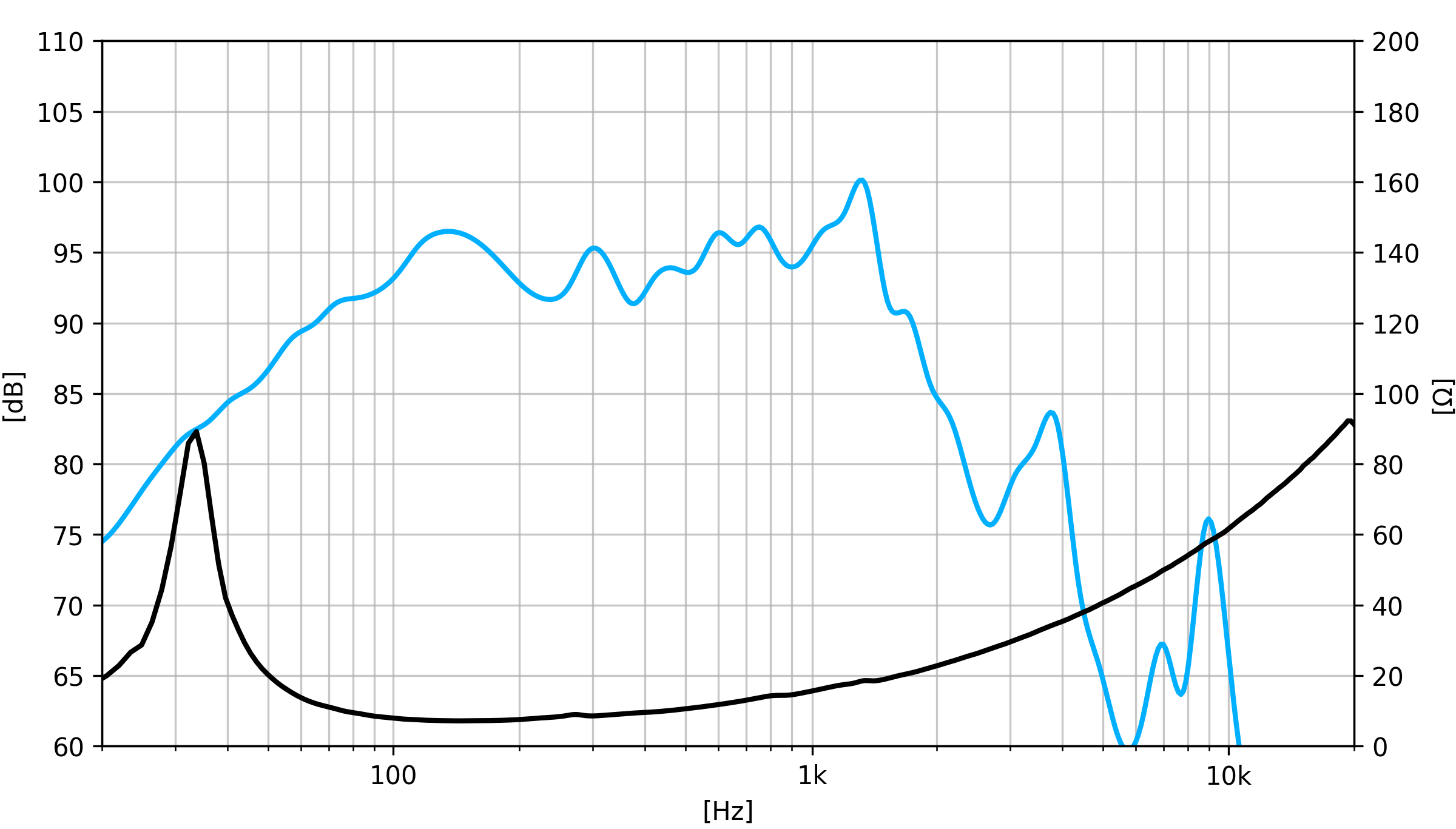

- Frequency response 40 - 1500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 36Hz
- Mechanical quality factor QMS 6.20
- Electrical quality factor QES 0.32
- Total quality factor QTS 0.30
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Maximum excursion before damage xlim 60mm
- Air volume displaced at xmax VD 968cm³
- Power handling P 1200W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.1Ω
- Inductance (1kHz) LE 1.5mH
- VC Diameter 101.6mm
- Winding height HVC 28mm
Magnet
- Force factor Bl 26.4N/A
- Motor constant Bl/√RE 11.7N/√W
- Air gap height HAG 14mm
Diaphragm
- Effective diameter 335mm
- Effective area SD 880cm²
- Moving mass MMS 164g
- Moving mass (without air load) MMD 146g
Suspensions
- Stiffness KMS 8.7N/mm
- Compliance CMS 115µm/N
- Equivalent volume to the compliance VAS 127L
- Mechanical resistance RMS 6.1N·s/m

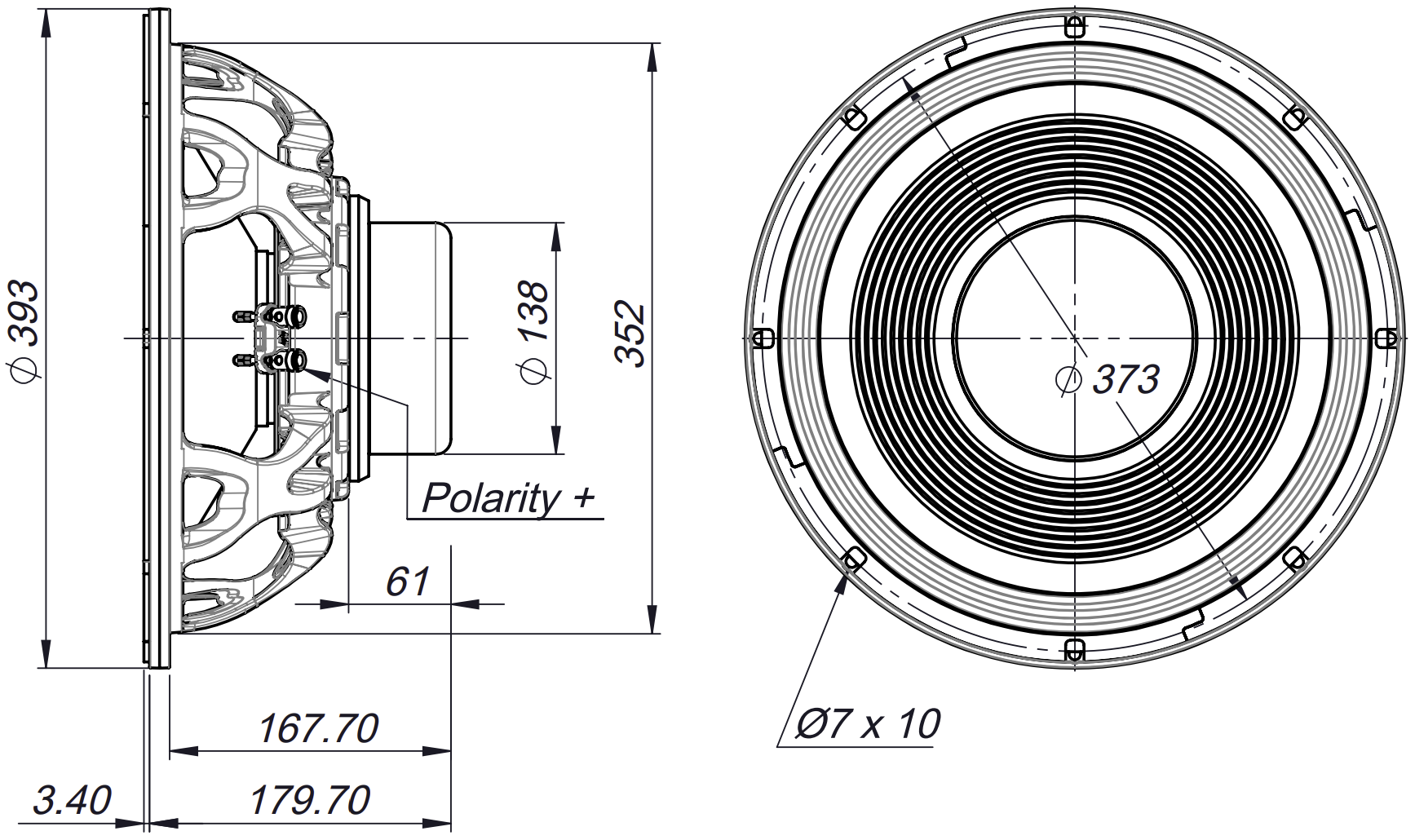

Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 393mm
- Baffle cutout diameter 352mm
- Overall depth 183mm
- Volume occupied by the driver (estimated) 4.5L
- Net weight 8.4kg
