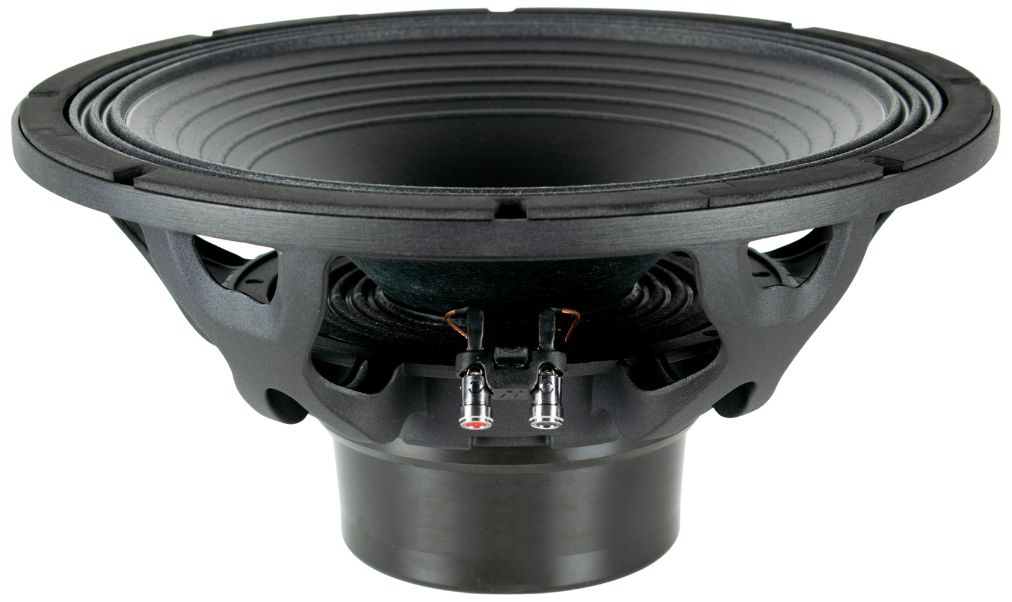

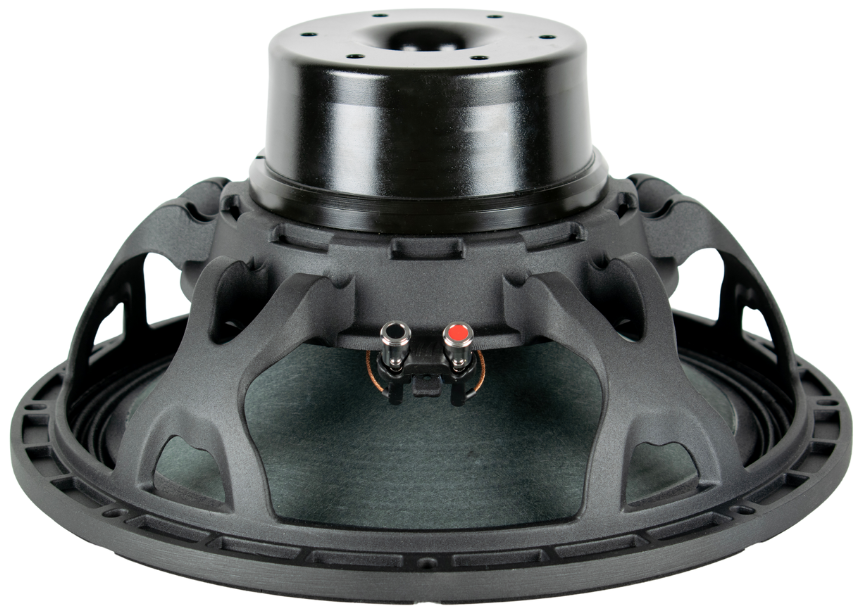

Beyma 15MLEX1000Nd
8Ω
Subwoofer
| Nominal diameter | 15″ / 393 mm |
| Resonance | 38 Hz |
| Q factor | 0.20 |
| Sensitivity | 97.6 dB |
| Linear excursion | ± 11 mm |
| Program Power | 2000 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 97.6dB

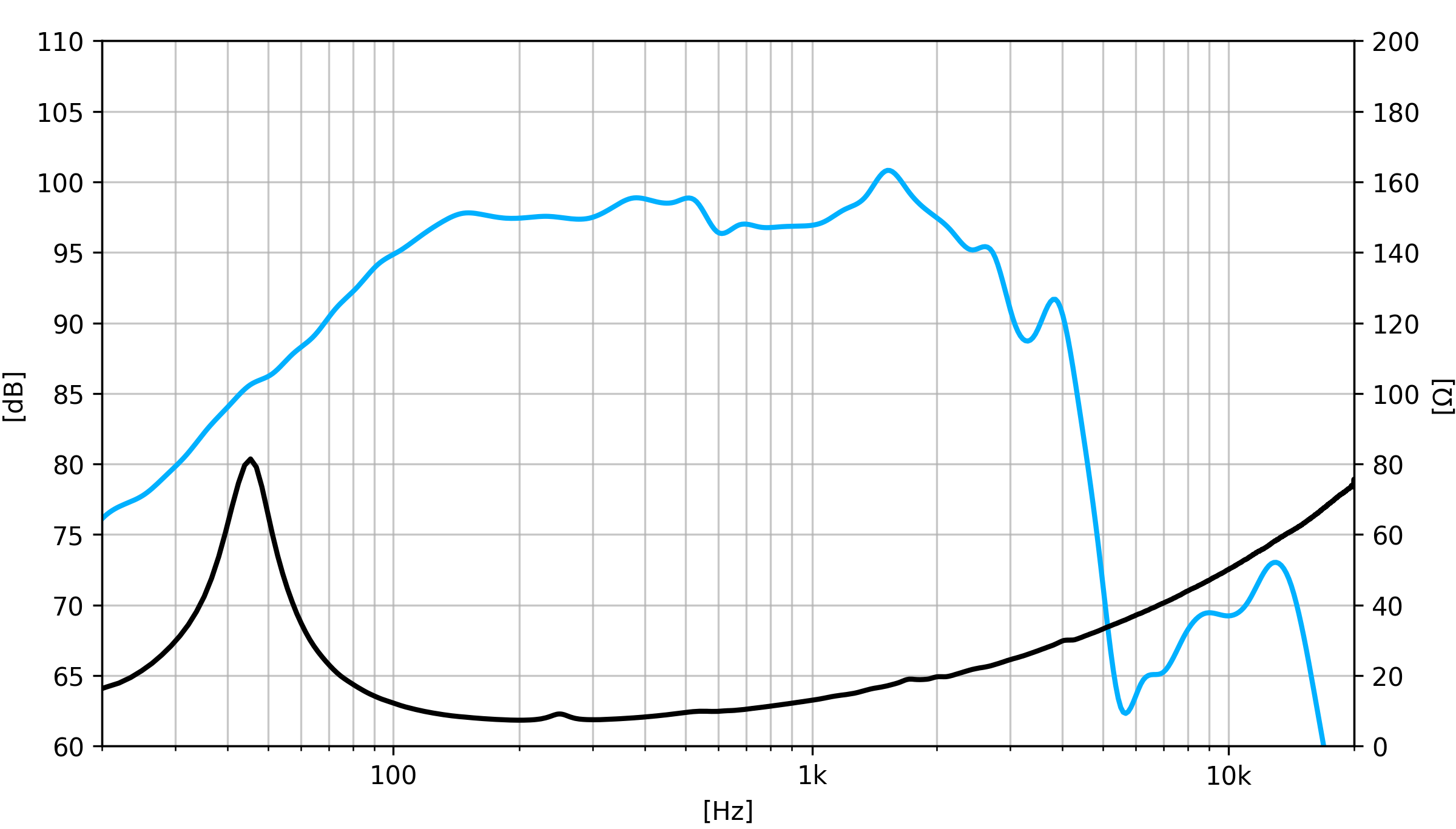

- Frequency response 40 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 7.20
- Electrical quality factor QES 0.21
- Total quality factor QTS 0.20
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Maximum excursion before damage xlim 60mm
- Air volume displaced at xmax VD 968cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 1.3mH
- VC Diameter 101.6mm
- Winding height HVC 28mm
Magnet
- Force factor Bl 26N/A
- Motor constant Bl/√RE 11.3N/√W
- Air gap height HAG 14mm
Diaphragm
- Effective diameter 335mm
- Effective area SD 880cm²
- Moving mass MMS 111g
- Moving mass (without air load) MMD 92.8g
Suspensions
- Stiffness KMS 6.58N/mm
- Compliance CMS 152µm/N
- Equivalent volume to the compliance VAS 167L
- Mechanical resistance RMS 3.73N·s/m

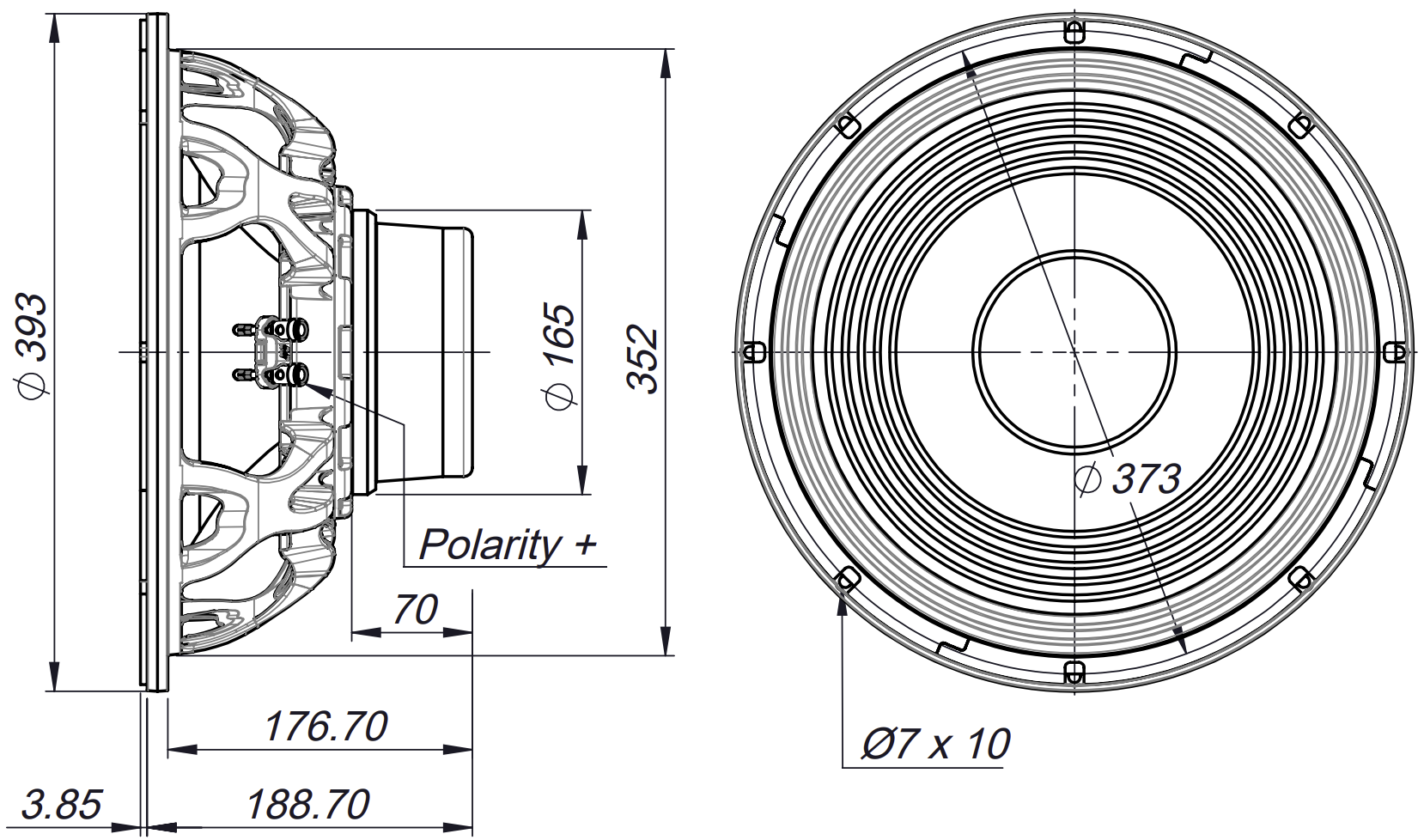

Dimensions
- Nominal diameter 15″
- 393mm
- Overall diameter 393mm
- Overall depth 189mm
- Volume occupied by the driver (estimated) 4.9L
- Net weight 9.4kg
.png)
.png)
