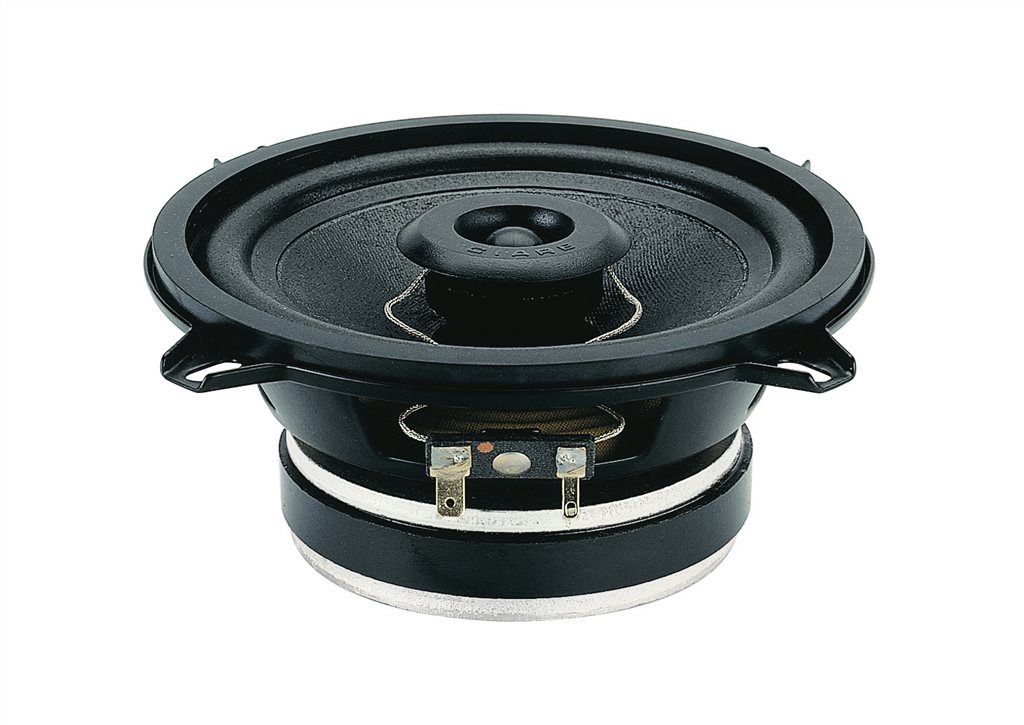

Ciare CX131

2 Way

Nominal diameter5″ / 130 mm
Resonance83 Hz
Q factor0.43
Sensitivity90.4 dB
Linear excursion± 2 mm
Program Power150 W
Discontinued
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
  • Sensitivity (1W, 1m, infinite baffle) SPL1W 90.4dB

Thiele & Small parameters

  • Resonance frequency (free air) fS 83Hz
  • Mechanical quality factor QMS 3.45
  • Electrical quality factor QES 0.49
  • Total quality factor QTS 0.43

Large signal parameters

  • Maximum linear excursion xmax 2mm
  • Air volume displaced at xmax VD 18cm³
  • Power handling P 60W
  • Program power Pmax 150W

Voice Coil

  • Nominal impedance Z 4Ω
  • DC resistance RE 3.4Ω
  • Inductance (1kHz, estimated) LE 0.25mH
  • VC Diameter 25mm
  • Former material Aluminium

Magnet

  • Force factor Bl 4.59N/A
  • Motor constant Bl/√RE 2.49N/√W
  • Air gap height HAG 4mm
  • Material Ferrite

Diaphragm

  • Effective diameter 106mm
  • Effective area SD 87.9cm²
  • Moving mass MMS 5.9g
  • Moving mass (without air load) MMD 5.3g

Suspensions

  • Stiffness KMS 1.61N/mm
  • Compliance CMS 620µm/N
  • Equivalent volume to the compliance VAS 6.8L
  • Mechanical resistance RMS 0.89N·s/m
  • Surround material Polyurethane

Dimensions

  • Nominal diameter 5
  • 130mm
  • Overall diameter 130mm
  • Baffle cutout diameter 112mm
  • Overall depth 57mm
  • Flange thickness 8mm
  • Mounting depth 49mm
  • Volume occupied by the driver (estimated) 0.22L
  • Frame material Steel

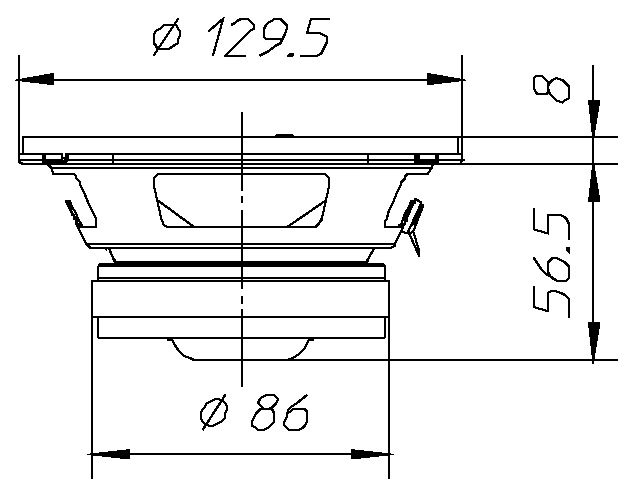

Ciare CX131 Dimensions
