Ciare CZ180

2 Way

Nominal size5x7″ / 130x180 mm
Resonance100 Hz
Q factor1.10
Sensitivity87.1 dB
Linear excursion± 1.1 mm
Program Power100 W
Discontinued
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
  • Sensitivity (1W, 1m, infinite baffle) SPL1W 87.1dB

Thiele & Small parameters

  • Resonance frequency (free air) fS 100Hz
  • Mechanical quality factor QMS 4.41
  • Electrical quality factor QES 1.47
  • Total quality factor QTS 1.10

Large signal parameters

  • Maximum linear excursion xmax 1.1mm
  • Air volume displaced at xmax VD 9.4cm³
  • Power handling P 50W
  • Program power Pmax 100W

Voice Coil

  • Nominal impedance Z 4Ω
  • DC resistance RE 3.5Ω
  • Inductance (1kHz, estimated) LE 0.3mH
  • VC Diameter 25mm
  • Former material Aluminium

Magnet

  • Force factor Bl 3.42N/A
  • Motor constant Bl/√RE 1.83N/√W
  • Air gap height HAG 4mm

Diaphragm

  • Effective diameter 105mm
  • Effective area SD 85.4cm²
  • Moving mass MMS 7.77g
  • Moving mass (without air load) MMD 7.2g

Suspensions

  • Stiffness KMS 3.03N/mm
  • Compliance CMS 330µm/N
  • Equivalent volume to the compliance VAS 3.41L
  • Mechanical resistance RMS 1.11N·s/m
  • Surround material Polyurethane

Dimensions

  • Nominal size 5 x 7
  • 130 x 180mm
  • Overall size 130 x 180mm
  • Mounting baffle cutout 110 x 160mm
  • Overall depth 58mm
  • Flange thickness 7mm
  • Mounting depth 51mm
  • Volume occupied by the driver (estimated) 0.22L
  • Frame material Steel

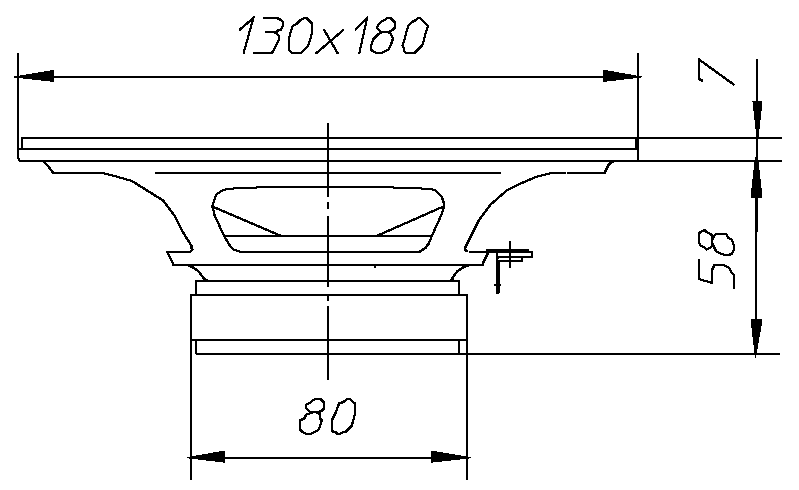

Ciare CZ180 Dimensions
