Ciare FXE12.64WS
4Ω
8Ω
Woofer
| Nominal diameter | 12″ / 320 mm |
| Resonance | 56 Hz |
| Q factor | 0.42 |
| Sensitivity | 94.7 dB |
| Linear excursion | ± 5.5 mm |
| Program Power | 600 W |
Discontinued
Specifications

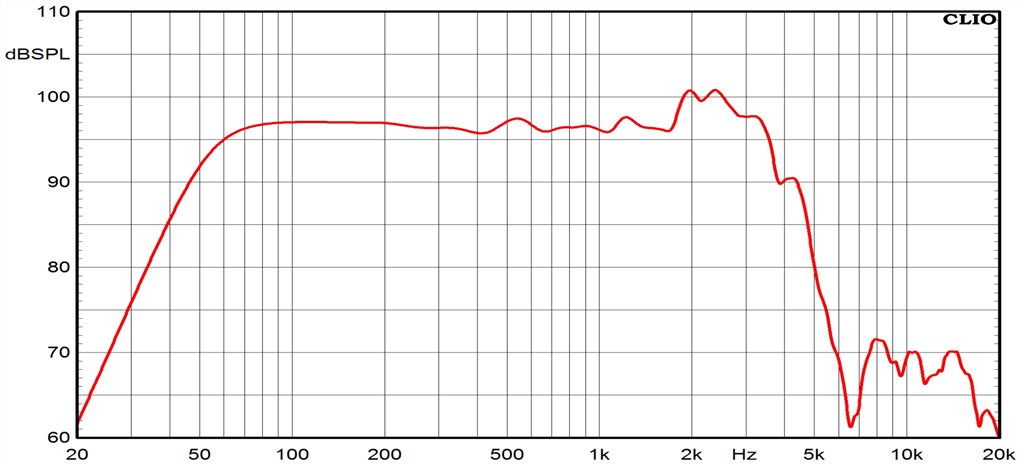

- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 56Hz
- Mechanical quality factor QMS 16.00
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.42
Large signal parameters
- Maximum linear excursion xmax 5.5mm
- Air volume displaced at xmax VD 301cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil

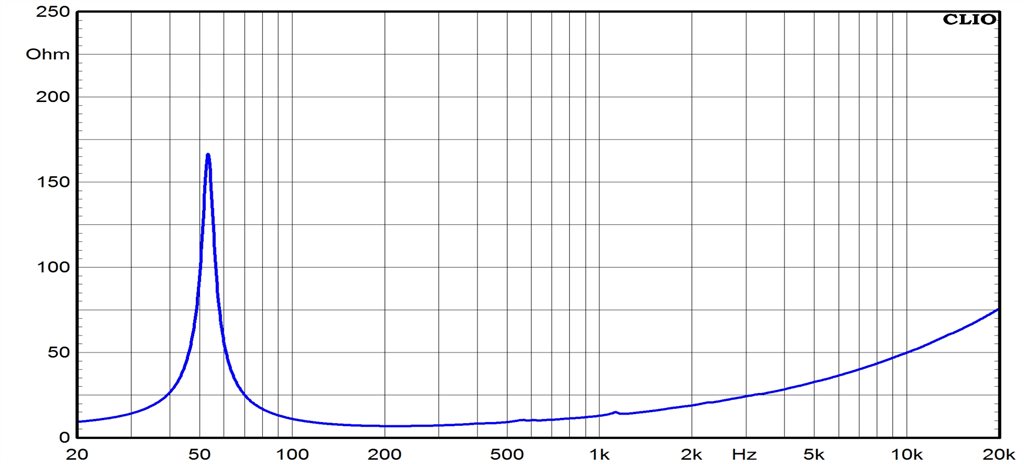

- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 1.2mH
- VC Diameter 64mm
- Winding material Copper
- Former material Aluminium
Magnet
- Force factor Bl 16.7N/A
- Motor constant Bl/√RE 7.12N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 264mm
- Effective area SD 547cm²
- Moving mass MMS 63.5g
- Moving mass (without air load) MMD 54.5g
- Material Treated Paper
Suspensions
- Stiffness KMS 8N/mm
- Compliance CMS 125µm/N
- Equivalent volume to the compliance VAS 53L
- Mechanical resistance RMS 1.4N·s/m
- Surround material Nomex
- Spider material Nomex

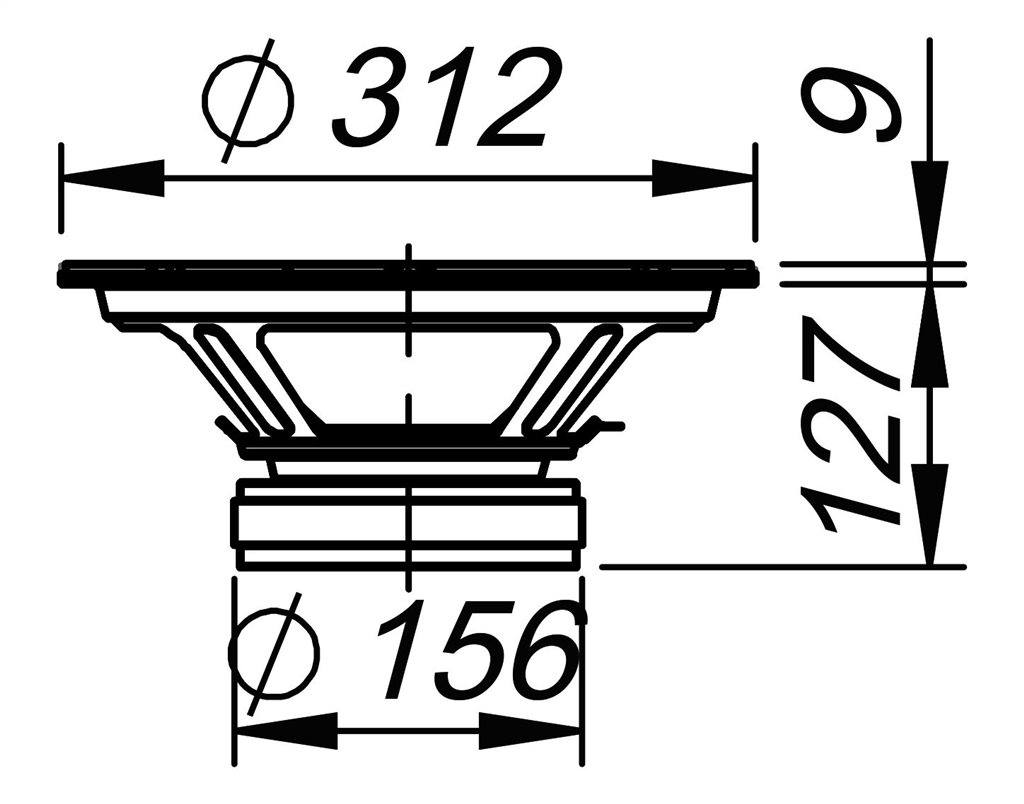

Dimensions
- Nominal diameter 12″
- 320mm
- Overall diameter 312mm
- Baffle cutout diameter 285mm
- Overall depth 127mm
- Flange thickness 9mm
- Mounting depth 118mm
- Volume occupied by the driver (estimated) 2.1L
.jpg)
.jpg)
.jpg)
