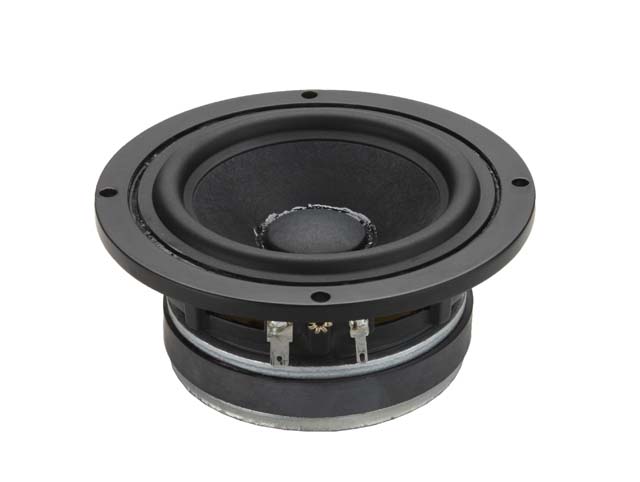

Ciare HX101
8Ω
| Nominal diameter | 4″ / 100 mm |
| Resonance | 84 Hz |
| Q factor | 0.47 |
| Sensitivity | 86.8 dB |
| Linear excursion | ± 1.3 mm |
| Program power | 80 W |
Discontinued
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 84Hz
- Mechanical quality factor QMS 2.25
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.47
Large signal parameters
- Maximum linear excursion (one way) xmax 1.3mm
- Air volume displaced at xmax VD 6.4cm³
- Power handling P 40W
- Program power Pmax 80W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.1mH
- VC Diameter 25mm
- Former material Kapton
Magnet
- Force factor Bl 4.54N/A
- Motor constant Bl/√RE 1.95N/√W
- Air gap height HAG 5mm
- Material Ferrite
Diaphragm
- Effective diameter 81mm
- Effective area SD 51.3cm²
- Moving mass (including air load) MMS 4.33g
- Moving mass MMD 4g
Suspensions
- Stiffness KMS 1.21N/mm
- Compliance CMS 830µm/N
- Equivalent volume to the compliance VAS 3.1L
- Mechanical resistance RMS 1.02N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 4″
- 100mm
- Overall diameter 119mm
- Baffle cutout diameter 96mm
- Overall depth 47mm
- Flange thickness 5mm
- Mounting depth 42mm
- Volume occupied by the driver (estimated) 0.15L
- Frame material Aluminium
.png)
.png)
