Ciare PW160ND
8Ω
Woofer
| Nominal diameter | 6.5″ / 160 mm |
| Resonance | 80 Hz |
| Q factor | 0.28 |
| Sensitivity | 94.1 dB |
| Linear excursion | ± 7.5 mm |
| Program Power | 300 W |
Discontinued
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 80Hz
- Mechanical quality factor QMS 4.32
- Electrical quality factor QES 0.30
- Total quality factor QTS 0.28
Large signal parameters
- Maximum linear excursion xmax 7.5mm
- Air volume displaced at xmax VD 101cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.17mH
- VC Diameter 38mm
- Former material Kapton
Magnet
- Force factor Bl 10.4N/A
- Motor constant Bl/√RE 4.46N/√W
- Air gap height HAG 8mm
- Material Neodymium
Diaphragm
- Effective diameter 131mm
- Effective area SD 134cm²
- Moving mass MMS 11.5g
- Moving mass (without air load) MMD 10.3g
Suspensions
- Stiffness KMS 3.03N/mm
- Compliance CMS 330µm/N
- Equivalent volume to the compliance VAS 8.45L
- Mechanical resistance RMS 1.34N·s/m
- Surround material Fabric

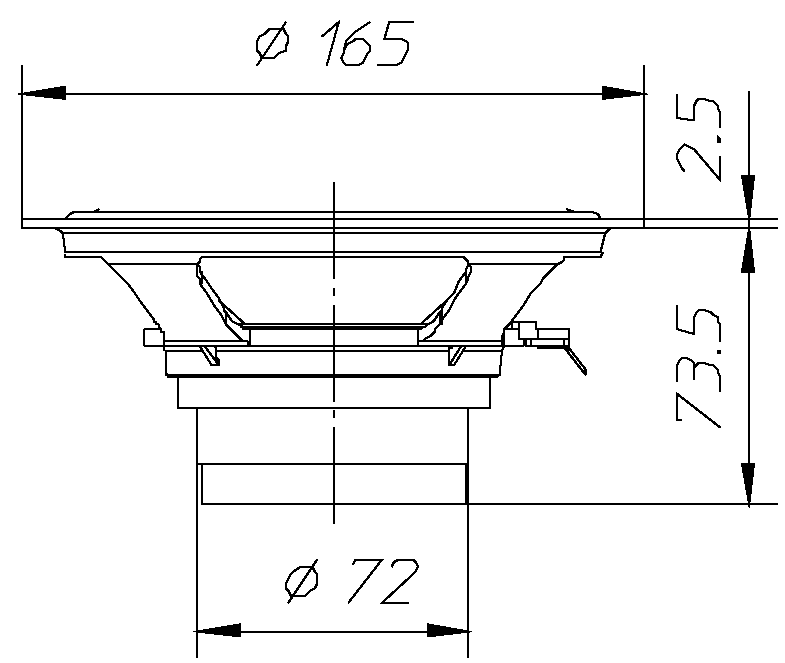

Dimensions
- Nominal diameter 6.5″
- 160mm
- Overall diameter 165mm
- Baffle cutout diameter 147mm
- Overall depth 74mm
- Flange thickness 3mm
- Mounting depth 71mm
- Volume occupied by the driver (estimated) 0.43L
- Frame material Aluminium
.png)
.png)
